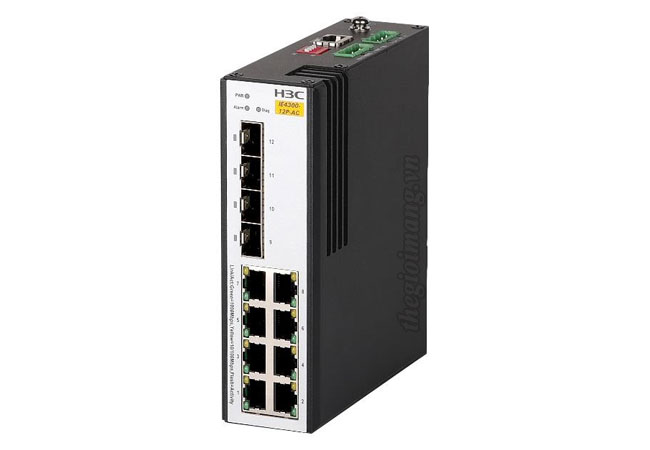

H3C IE4300-12P-AC Industrial Ethernet Switch :
Thiết bị chuyển mạch Industrial Switch H3C IE4300-12P-AC
| Model | IE4300-12P-AC |
| Hardware Specifications | |
| Switching capacity | • 24Gbps |
| Forwarding capacity | • 17Mpps |
| Dimensions (W × D × H) | • 149*129.8*44mm |
| Weight | • ≤ 1kg |
| 10/100/1000 Base-T port | • 8 |
| SFP port | • 4 |
| Input voltage |
• Rated voltage range: 100 to 240 VAC @ 50 or60Hz • Max voltage range:85to264 VAC @ 45 to 65 Hz |
| Power consumption | • MIN: 7W • MAX: 12W |
| POE | / |
| Operating temperature | • -40 ～ 75℃ |
| Storage temperature | • -40～ 75℃ |
| Operating relative humidity (noncondensing) | • 5～95%RH |
| Operating Environment | • International Protection Marking IP40 • Lightning-proof Ethernet Port • Electro Static Discharge • Air Discharge: ≥±8.0kV • Contact Discharge: ≥±6.0kV |
| Software Specifications | |
| Cluster Management | • Support |
| Port Aggregation | • Support |
| Ethernet Switching | • Store-and-Forward |
| Jumbo Frame | • Support |
| MAC Address Table | • 16K MAC Address • Static MAC Address • Black hole MAC Address • MAC Address Learning Limit |
| VLAN | • Port-based VLAN • MAC-based VLAN • Protocol-based VLAN • Voice VLAN • Guest VLAN • QinQ and Selective QinQ • VLAN Mapping |
| ACL | • Time Range-based ACL • Layers 2-4 ACL • IPv4/IPv6 ACL • Ingress ACL • Rate-limited ACL |
| QoS | • Diff-Serv QoS • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR • 802.1p DSCP remarking |
| DHCP | • DHCP Client • DHCP Snooping • DHCP Snooping Trust • DHCP Snooping option 82 / DHCP Relay option 82 |
| ARP | • Static ARP • Gratuitous ARP • ARP anti-attack • ARP Rate Limiting |
| IP Routing | • Routed Port • IPv4 Routing: Static Route, RIP • IPv6 Routing: Static Route, Unicast Route |
| Multicast | • IGMP v1/v2/v3 Snooping • IGMP Snooping Fast-leave • IGMP Snooping Group-policy • IGMP Snooping Proxy • IPv4/IPv6 Multicast VLAN • MLD v1/v2 Snooping • MVR |
| Spanning Tree | • STP / RSTP / MSTP • STP Root Guard • BPDU Guard • Loop Guard |
| Mirroring | • Port Mirroring • Remote SPAN (RSPAN) |
| Security | • Hierarchical User Management and Password Protection • 802.1X Authentication • AAA Authentication • Public Key Infrastructure (PKI) • HWTACACS • SSH 2.0 • IP/MAC/Port/VLAN Binding • IP Source Guard • HTTPs • SSL • Dynamic ARP Inspection, Preventing Man-in-the-Middle Attacks and ARP DoS Attacks • SAVI |
| IEEE | • IEEE 802.3x • IEEE 802.3ad • IEEE 802.3af • IEEE 802.3at • IEEE 802.1p • IEEE 802.1x • IEEE 802.1q • IEEE 802.1d • IEEE 802.1w • IEEE 802.1s |
| Management and maintenance | • Loading and Upgrading through Xmodem / FTP / TFTP • Configuration through CLI, Telnet and Console Port • TR069 • 802.1ag and 802.3ah • SNMPv1/v2/v3 • iMC NMS • Web-based NMS • System Log, Alarms based on Severities, and Output of Debugging Information • Alarms based on Power Failure • NTP • Temperature Alarm • Ping, Tracert, Telent |
| Reliability | • Alarms based on Power Failure (only for IE4300 switch series) • ERPS (G.8032) |
IE4300-12P-AC : H3C 8 10/100/1000 BASE-T Ethernet ports + 4 1000 BASE-X SFP optical ports
