EWP-WA6526-FIT - H3C WA6526 Wi-Fi 6 Indoor Access Point :

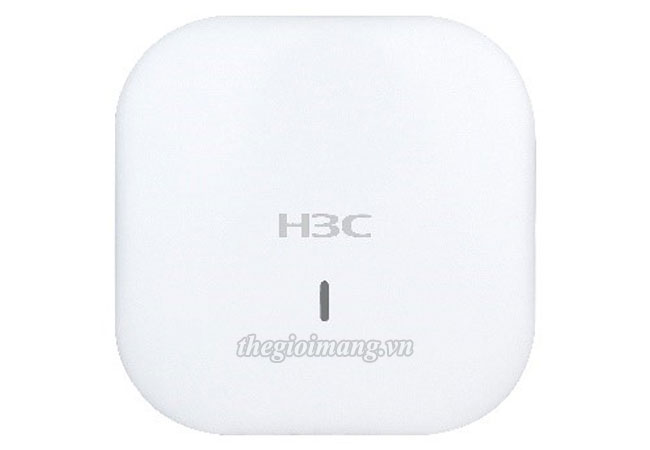

Thiết bị Wi-Fi 6 H3C WA6526 Indoor Access Point (EWP-WA6526-FIT)
| Model | EWP-WA6526-FIT |
| Weight | • 1.05 kg |
| Dimensions (H × W × D) | • 35 × 185 × 155 mm |
| Uplink Ethernet ports | • Port 1: 100/1000M/2.5G, RJ-45 • Port 2: 100/1000M, RJ-45 |
| PoE+ | • Port 1: 802.3bt/at • Port 2: 802.3at • Both ethernet ports support PoE and they can work simultaneously |
| Local power supply | • 54 VDC |
| Passive Power over Ethernet (48V) | • Supported |
| Console port | • One (RJ-45) |
| USB port | • One |
| Built-in antenna | • Built-in omni-directional antenna - 4dBi antenna gain @2.4GHz - 4dBi antenna gain @5GHz |
| Built-in Bluetooth | • Supported (Support to switch RFID through software) |
| Working frequencies | • 802.11ax/ac/n/a: 5.725 to 5.850 GHz; 5.47 to 5.725 GHz; 5.15 to 5.35 GHz • 802.11ax/b/g/n: 2.4 to 2.483 GHz |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) • MIMO-OFDM (11n): MCS 0-31 • MIMO-OFDM (11ac): MCS 0-9 • MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | • 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power | • 2.4G: 20dBm, 5G: 20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity | • 1 dBm |
| Reset/restoration to factory default | • Supported |
| State LED | • Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Temperature | • Operating temperature: -10°C to +55°C (32°F to 113°F) • Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Humidity | • Operating: 5% to 95% (non-condensing) • Storage: 5% to 95% (non-condensing) |
| Protection class | • IP42 |
| Overall power consumption | • ≤ 17.6w (without USB function) • ≤ 20.1w (with USB function) |
| Safety compliance | • GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | • GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification | • FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| MTBF | • >850000H |
EWP-WA6526-FIT : H3C WA6526 Internal Antennas 6 Streams Dual Radio 802.11ax/ac/n Access Point,FIT
Data sheet H3C WA6526 New Generation 802.11ax Indoor Series Access Point
