H3C EWP-WA6320H-HI-FIT

EWP-WA6320H-HI-FIT - H3C WA6320H-HI Wi-Fi 6 Wall-Plate Access Point :

2.4G 2*2 MIMO 0.575Gbps
5G 2*2 MIMO 2.4Gbps
1 x Ethernet ports(100/1000Mbps), support Power out
3 x Ethernet ports(100/1000Mbps)
1 x uplink GE port (100/1000Mbps)
1 x uplink SFP port (100/1000Mbps)
Built-in omni-directional antenna

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

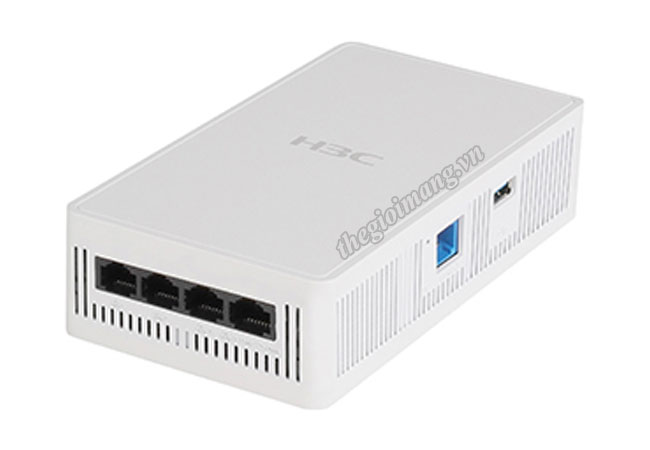

Thiết bị Wi-Fi 6 H3C WA6320H-HI Wall-Plate Access Point

Model	EWP-WA6320H-HI-FIT
Hardware specifications
Weight (excluding mounting accessories)	• 0.3kg
Dimensions (excluding mounting and accessories)	• 160mm×86mm×39mm
Ethernet ports	• Front panel: - 1x Ethernet ports(100/1000Mbps), support Power out - 3x Ethernet ports(100/1000Mbps) • Back panel: - 1x uplink GE port (100/1000Mbps) - 1x uplink SFP port (100/1000Mbps)
PoE	• 802.3at
Local Power supply	• 54V DC
Console port	• One（RJ-45）
Built-in antenna	• Built-in omni-directional antenna - 3dBi antenna gain @2.4GHz - 5dBi antenna gain @5GHz
Built-in Bluetooth	• Built-in Bluetooth 5.1/RFID/Zigbee
Working frequencies	• 802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz • 802.11ax/b/g/n: 2.4GHz-2.483GHz
Modulation technology	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) • MIMO-OFDM (11n) : MCS 0-31 • MIMO-OFDM (11ac) : MCS 0-11 • MIMO-OFDM (11ax) : MCS 0-11
Modulation mode	• 11b：DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n：MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM • 11ac：MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM • 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
Maximum transmit power	• 20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power granularity	• 1dBm
Reset/restoration to factory default	• Supported
State LED	• Alternating flashing mode, orange/green/blue for different working states, breathing mode
Working Temperature/Storage Temperature	• -10ºC～55ºC/-40ºC～70ºC
Working Humidity/Storage Humidity	• 5%~95%(non-condensing)
Protection class	• IP41
Overall power consumption	• ≤14W（excluding PoE_OUT and USB） • ≤31.5W（including PoE_OUT and USB）
Safety compliance	• GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
EMC	• GB9254, EN301 489, EN55022, FCC Part 15, RSS-210
Radio frequency certification	• FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC
Health	• FCC Bulletin OET-65C, EN 50385, IC Safety Code 6
MTBF	• >250000H
Software specifications
*Compliance*
802.11	• Indoor, compliant with 802.11a/b/g/n/ac/ax
*802.11ax*
Working frequencies and MIMO	• 2.4G 22 MIMO 0.575Gbps • 5G 22 MIMO 2.4Gbps
20MHz/40MHz bandwidth	• Supported
80MHz/160MHz bandwidth	• Supported
Maximum transmission speed	• 2.975Gbps
A-MPDU	• Supported
A-MSDU	• Supported
Maximum likelihood decoding (MLD)	• Supported
Maximum-ratio combining (MRC)	• Supported
Space-time block coding (STBC)	• Supported
Low-density parity-check (LDPC)	• Supported
Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)	• Supported
DFS (dynamic frequency selection)	• Supported
Transmit Beamforming	• Supported
*WLAN basics*
Maximum number of clients per radio	• 512
Maximum number of SSIDs for each radio	• 16
Virtual APs	• 32 (As a best practice, configure a maximum of 5 virtual APs for each radio)
Open system/shared key authentication	• Supported
Broadcast probe request acknowledge control	• Supported
Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA users	• Supported
RTS/CTS	• Supported
CTS-to-self	• Supported
802.11k and 802.11v smart roaming	• Supported
802.11r fast transition roaming	• Supported
Hide SSID	• Supported
Advanced Traffic Management	• Supported
Hotspot 2.0	• Supported
Restrict low rate/sticky terminals access	• Supported
Channel reuse	• Supported
Receiver sensitivity adjustment	• Supported
Automatic channel/power/bandwidth adjustment	• Supported
*WLAN extension*
Station related	• Abnormal offline check, station aging, statistics and status query
Client number limit	• Supported
Link integrity check	• Supported
Repeater mode	• Supported
*Security policy*
Encryption	• WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP, WPA3 • Multiple triggering conditions for unicast and broadcast key update
802.11i	• Supported
Authentication	• 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK • H3C WX series access controllers might be required for authentication.
User isolation	• Layer 2 user isolation • SSID-based user isolation
Forwarding security	• Packet filtering • MAC address filtering • Broadcast storm suppression
Wireless terminal access	• Wireless EAD
SSID and VLAN binding	• Supported
WIDS/WIPS	• Supported
Rogue device detection and countermeasure	• Supported
Dynamic ARP Inspection (DAI)	• Supported
IP Source Guard (IPSG)	• Supported
Management frame protection (802.11w)	• Supported
*AAA*
RADIUS client	• Supported
Multiple-domain authentication server	• Supported
Backup authentication server	• Supported
*Layer 2 and Layer 3 features*
IP address configuration	• Static IP (available only in fat AP mode) • DHCP assigned IP (Option 60)
Native IPv6	• Supported
IPv6 Portal	• Supported
IPv6 SAVI	• Supported
ACL	• IPv4/IPv6
Local forwarding	• Local forwarding based on SSID and VLAN
Link Layer Discovery Protocol (LLDP)	• Supported
SSID-based VLAN assignment	• Supported
EoGRE Tunnel	• Supported
Multicast	• IGMP Snooping/MLD Snooping
*QoS*
802.11e	• Wi-Fi Multimedia (WMM)
Priority	• 802.1p priority and marking on Ethernet ports • Priority mapping for wired and wireless packets
QoS policy mapping	• SSID/VLAN and QoS policy mapping
Layer 2 to Layer 4 packet filtering and traffic classification	• Supported
CAR	• Supported
Client bandwidth management	• Station-based bandwidth allocation • SSID-based bandwidth allocation
Load balancing	• Traffic-based load balancing • Session-based load balancing • Frequency-based load balancing (supports dual-band)
Band navigation (5G priority)	• Supported
Multicast optimization (IPv4/IPv6)	• Supported
Call Admission Control (CAC)	• Session-based CAC • Channel usage-based CAC
Airtime optimization	• Supported
Airtime fairness	• Supported
Layer 4-7 application identification	• Coupled with H3C WLAN ACs, the APs can identify variety of applications and policy control can be implemented including priority adjustment, scheduling, blocking, and rate limiting on users
SVP Phone	• Supported
*Power saving*
PPC	• Supported
Green AP mode	• Supported
Dynamic MIMO power saving	• Supported
E-APSD	• Supported
WMM Power Save	• Supported
*Management And Maintenance*
Network management	• Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Cloud/Fat mode
Management SSID	• Supported
Syslog	• Supported
AP Working Mode	• Fit/Cloud/Fat/anchor
Remote probing and analysis	• Supported
*Mesh*
Mesh Link connection	• Supported
Multi-hop Mesh	• Supported
Wi-Fi Certified	• IEEE 802.11a/b/g/n/ac/ax, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE), Wi-Fi Alliance
