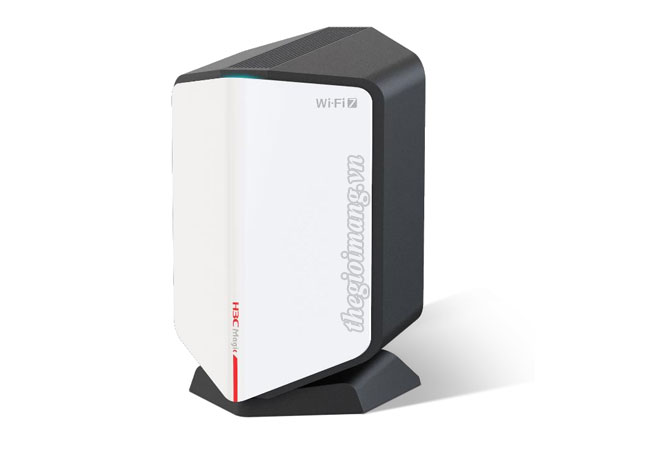

H3C Magic BE18000 Tri-band Wi-Fi 7 Wireless Router :
Thiết bị Router Wi-Fi 7 H3C Magic BE18000
| Model | BE18000 |
| Hardware | |
| Fixed port | • 2*10G + 3*10/100/1000Base-T Ethernet ports • Independent reset key, function keys (Mesh, wireless optimization) |
| Antenna | • Built-in high-gain omnidirectional antennas |
| CPU | • IPQ9574 |
| Indicator light | • Front LED: System Status Indicator • Rear LED: Port Status Indicator |
| Dimensions（W×D×H） | • 184*192*290mm |
| Power consumption | • ≦ 48W |
| Cooling method | • Natural cooling |
| Product standards | • YD/T 1096-2009 |
| Certification | • CE certification • RoHS |
| Wireless | |
| Wireless protocol | • 2.4GHz：802.11ax/n/g/b • 5GHz：802.11be/ax/ac/n/a • 6GHz: 802.11be/ax/ac/n/a |
| Spatial flow | • 2.4GHz 4x4 MIMO • 5GHz 4x4 MIMO • 6GHz 4x4 MIMO |
| Wireless bandwidth | • 2.4G 20/40MHz • 5G 20/40/80/160MHz • 6G 20/40/80/160MHz/320MHz |
| Wireless rate | • Multi-frequency concurrency 18443Mbps • 2.4GHz：1148Mbps & 5GHz：5765Mbps & 6GHz：11530Mbps |
| Wireless roaming | • Support IEEE 802.11k/v |
| MU-MIMO | • Support upstream and downstream MU-MIMO |
| Software | |
| Internet access | • Routing mode: DHCP/PPPoE/Static IP • Bridge mode: wired relay/wireless relay |
| EasyMesh | • Available |
| IPv6 | • Available |
| Security features | • WPA3 encryption • Anti-Wi-Fi squatting/anti-attack • Firewall, DMZ attacks |
| Network management | • Guest Wi-Fi, allow/disallow access list, parental control based on multiple time periods, IP-based traffic control, Wi-Fi timer switch |
| Special function | • QoS Traffic Shaping, Broadband Password Recovery, Packet Fast Forwarding Engine, Virtual Server |
| Management method | • Support H3C Magic APP (iOS, Android), Web |
| Troubleshooting | • Link detection • Internet diagnosis • One-click upload of fault information |
| Operating environment | |
| Operating temperature | • 0℃～40℃ |
| Storage humidity | • 10%～90% RH non-condensing |
| Package | |
| Packing list | • Integrated machine • Quick Start Guide • Networking cable: Cat 6e cable • Warranty card • Certificate of Conformity |
