H3C Magic BA1500C Wi-Fi 6 Access Point :

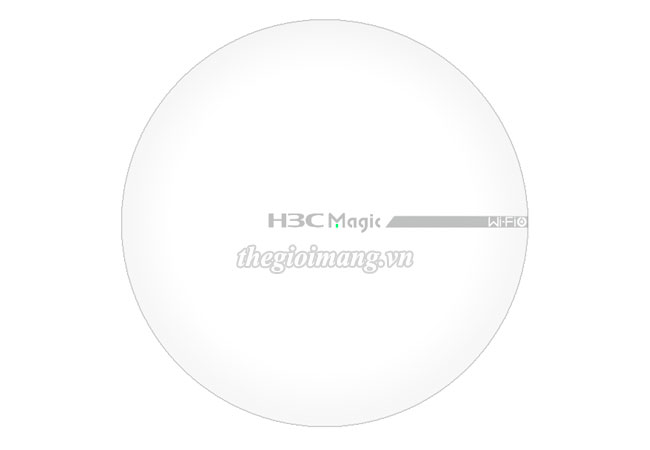

Thiết bị Wi-Fi 6 H3C Magic BA1500C Indoor Access Point
| Model | BA1500C |
| Hardware | |
| Interface | • One reset switch • One DIP switch (supporting "More User" and "Wider Coverage" mode switching). • One 10/100/1000Base-T Ethernet port |
| Antenna | • Built-in 4 high-gain omnidirectional antennas |
| Wireless Speed | • 1500 Mbps（2.4G： 2*2MIMO， 5G： 2*2MIMO） |
| Working Bandwidth | • 2.4G HT20/HT40 • 5G HT20/HT40/HT80 |
| DIP switch | • More User Mode Wider Coverage Mode |
| LED Indicator | • Top LED: System status indicator light • Back LED: Port status indicator light |
| PoE | • Supports 802.3af/802.3at compatible power supply • Powered by 12V/1A DC |
| Dimension | • Φ180mm*33.5mm |
| Weight | • 0.270kg device weight |
| Working temperature | • 0℃～ 40℃ |
| Working Humidity | • 10%～ 90% RH non-condensing |
| Power Consumption | • ≦ 12W |
| Cooling method | • Passive cooling |
| Product Standard | • YD/T 1096-2009 |
| Certification | • CE • WEEE • RoHS |
| Software | |
| Smart wireless networking | • Recommended user capacity: 50 devices • Supports configuration of 8 SSIDs • Supports AP auto-discovery • Supports adjusting AP transmission power • Supports adjusting AP channels • Supports AP address allocation • Supports AP software upgrade • Supports AP configuration synchronization • Supports AP disconnection detection • Supports displaying AP information • Supports restarting individual APs • Supports AP configuration template management • Supports wireless client list • Supports Wi-Fi access control • Supports wireless roaming • Supports hidden SSID • Supports one-click optimization • Supports MU-MIMO |
| Configuration management | • Web-based user management interface • Centralized control system based on CAPWAP protocol • Local upgrade through web page, one-click upgrade through H3C Magic App. |
| Fault diagnosis | • Internet diagnosis • Professional customer service • One-click export of equipment fault information |
H3C Magic BA1500C 802.11ax 1500M, Gigabit Wi-Fi 6 Ceiling-Mount Access Point
Data sheet H3C Magic 1500M Ceiling-Mount Wireless AP BA1500C
