Mô tả sản phẩm

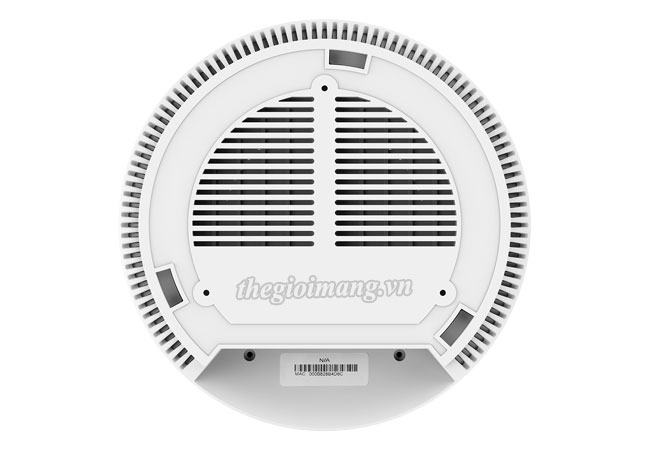

Thiết bị Wi-Fi Grandstream GWN7605 Indoor Access Point

Model	GWN7605
Wi-Fi Standards	• IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas	• 2 dual band internal antennas • 2.4GHz, gain 3dBi • 5 GHz, gain 4dBi
Wi-Fi Data Rates	• IEEE 802.11ac: 6.5 Mbps to 867 Mbps • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • IEEE 802.11n: 6.5Mbps to 300Mbps; • IEEE 802.11b: 1, 2, 5.5, 11 Mbps • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands	• 2.4 GHz Radio: 2412 – 2484 MHz • 5 GHz Radio: 5180-5825 MHz
Channel Bandwidth	• 2.4G: 20 and 40 MHz • 5G: 20,40 and 80 MHz
Wi-Fi and System Security	• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO	• 2x2:2 2.4GHz (MIMO) • 2x2:2 5GHz (MU-MIMO)
Coverage Range	• Up to 165 meters *coverage range can vary based on environment
Maximum TX Power	• 2.4G:24dBm • 5G:22dBm *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity	• 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps 802.11g: -93dBm @6Mbps, -75dBm@54Mbps 802.11n 20MHz: -73dBm @MCS7 802.11n 40MHz:-70dBm @MCS7 • 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps 802.11ac 20MHz: -67dBm@MCS8 802.11ac: HT40: -63dBm @MCS9 802.11ac 80MHz: -59dBm @MCS9
SSIDs	• 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
Concurrent Clients	• 100+
Network Interfaces	• 2 x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports	• 1 x Reset Pinhole, 1 x Kensington lock
Mounting	• Indoor wall or ceiling mount, kits included
LEDs	• 3 x tri-color LED for device tracking and status indication
Network Protocols	• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS	• 802.11e/WMM, VLAN, TOS
Network Management	• Embedded controller can manage up to 50 local GWN APs • GWN Cloud offers a free cloud management platform for unlimited GWN APs • GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency	• PoE 802.3af/ 802.3at; Maximum Power Consumption:10.16W
Environmental	• Operation: 0°C to 40°C • Storage: -10°C to 60°C • Humidity: 10% to 90% Non-condensing
Physical	• Unit Dimension: 180.4mm x 180.4mm x 40.8mm • Unit Weight: 388.2g • Entire Package Dimension: 228.5 x 220 x 79mm • Entire Package Weight: 719.3g
Package Content	• GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance	• FCC, CE, RCM, IC
