Bộ định tuyến Router All-in-One GrandStream GCC6010W
GrandStream GCC6010W cung cấp giải pháp tất cả trong một bằng cách hợp nhất giải pháp mạng và truyền thông vào một nền tảng. Kết hợp các chức năng như bộ định tuyến VPN, tường lửa, IP PBX, bộ chuyển mạch và Wi-Fi vào một thiết bị, cho phép cấu hình và quản lý thông qua Cloud với Grandstream Device Management System (GDMS) và có thể được quản lý thông qua ứng dụng di động, giao diện web hoặc CLI. Dòng GCC6010W cung cấp nền tảng tất cả trong một vào một thiết bị, lý tưởng cho các doanh nghiệp vừa và nhỏ.
Thông số kỹ thuật
| Model | GCC6010W |
| Wi-Fi Standards | • IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | • 3 individual internal antennas ( 2 x dual band + 1 x single band 5G) • 2.4GHz: maximum gain 4dBi • 5 GHz: maximum gain 6dBi |
| Wi-Fi Data Rates | • 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 5G: IEEE 802.11ax: 7.3 Mbps to 3603 Mbps IEEE 802.11ac: 6.5 Mbps to 2600 Mbps IEEE 802.11n: 6.5 Mbps to 450 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | • 2.4GHz radio: 2400 – 2483.5 MHz (2412-2472MHz is channel central frequency range; 2400-2483.5MHz is Frequency band) • 5GHz radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | • 2.4G: 20 and 40 MHz • 5G: 20, 40, 80, 160 MHz |
| Wi-Fi and System Security | • WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | • 2x2:2 2.4GHz • 3x3:3 5GHz |
| Maximum TX Power | • 5G: 25.5dBm • 2.4G: 28.5dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Senstivity | • 2.4G 802.11b: -97dBm@1Mbps, -89dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11 • 5G 802.11a: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n: 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11; 802.11ax 80MHz: -58dBm @MCS11 802.11ax 160MHz: -54dBm@MCS11 |

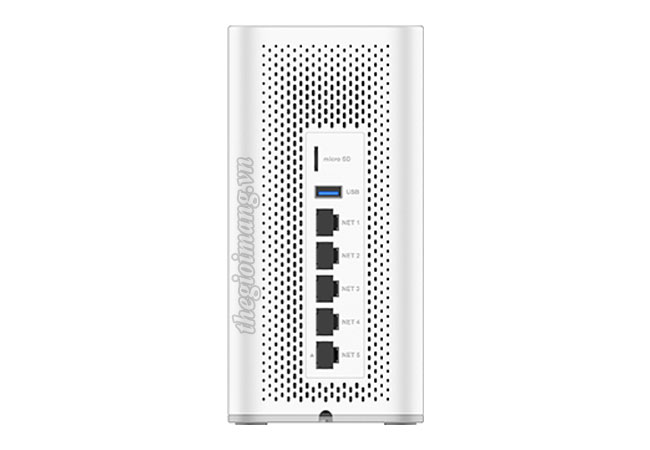

| Network Ports | • 5x Gigabit Ethernet ports *All ports are WAN/LAN configurable, max 3x WAN |
| Auxiliary Ports | • 1 x Micro-SD, 1 x USB 3.0, 1 x Reset |
| Memory | • 2GB RAM, 32GB eMMC Flash |
| External Storage | N/A |
| Router | • 3Gbps |
| IPsec VPN Throughput | • 1Gbps |
| NAT Sessions | • 160K |
| IDS/IPS | • 900Mbps |
| PBX | • 12 users and 4 concurrent calls by default - upgrades available for purchase that provide expansion |
| Mounting | • Desktop |
| Material | • Plastic Mini-Tower |

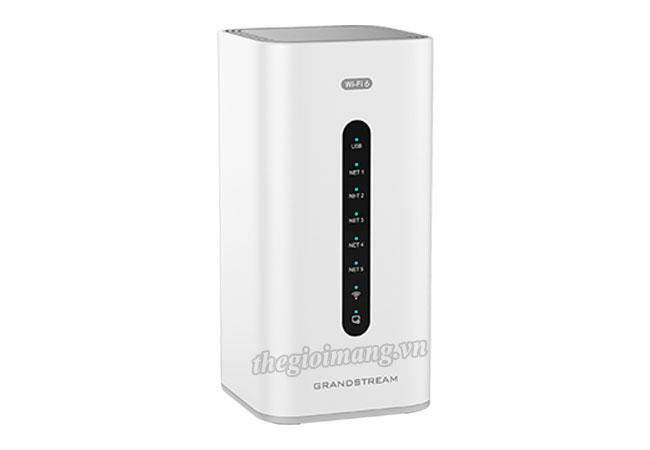

| LEDs | • 8 x LEDs for device tracking and status indication |
| Connection Type | • DHCP, Static IP, PPPoE |
| Network Protocols | • IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | • VLAN, TOS • Support multiple traffic classes, filter by port, IP address, DSCP and policing • App QoS: Application/protocol monitoring and traffic statistics • VoIP Prioritization |
| Firewall | • DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALG • DPI, Anti-Virus, IPS/IDS, SSL proxy • Content Control: DNS filtering, web url/class/key words filtering, application identification and control |
| VPN | • IPsec VPN Client-to-Site / Site-to-Site • IPSec Encryption: 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • PPTP VPN Server / Client • PPTP Encrpytion: MPPE 40-bit, 128-bit • PPTP/L2TP Authentication: MS-CHAPv1/2 • L2TP Client-to-Site • OpenVPN® Server / Client • OpenVPN® Encryption: AES, DES • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • OpenVPN® Certificate: RSA • WireGuard® |
| Network Management | • Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3) |
| Max AP/Clients | • Up to 150 GWN APs; Up to 500 Clients |
| Power and Green Energy Efficiency | • Universal power adaptor included: Input 100-240VAC 50-60Hz Output: 12VDC 1.5A (18W); |
| Environmental | • Operation: 0°C to 45°C • Storage: -30°C to 60°C • Humidity: 5% to 95% Non-condensing |
| Physical | • Unit Dimension: 95 x 95 x 193 mm • Unit Weight: 565g • Entire Package Dimension: 186 x 127 x 105 mm • Entire Package Weight: 920g |
| Package Content | • GCC6010W, Universal Power Supply, Network Cable, Quick Installation Guide |
| Compliance | • FCC, CE, RCM, IC |
