Mô tả sản phẩm

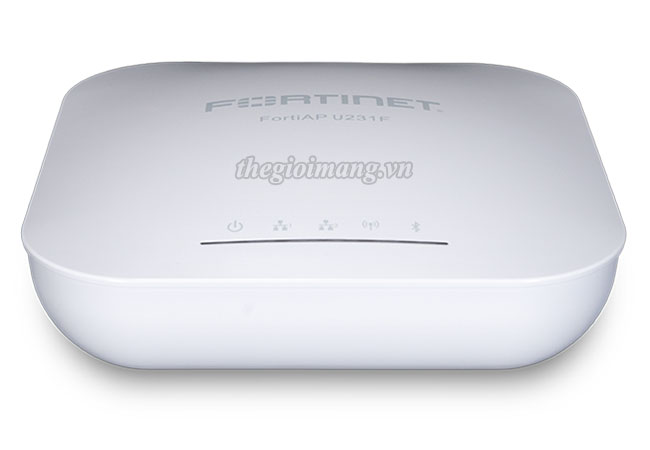

Thiết bị không dây Indoor Wireless Access Point Fortinet FortiAP U231F (FAP-U231F)

Mã sản phẩm	FAP-U231F
Hardware
Hardware Type	Indoor AP
Number of Radios	3 + 1 BLE
Number of Antennas	4 Dual band WiFI + 2 WiFi+Dual band Scanning + 1 Single band 2.4GHz BLE/ZigBee
Antenna Type and Peak Gain	- PIFA antenna - Dual band: 3.97 dBi for 2.4GHz and 5.89 dBi for 5GHz - Single band 5Ghz antenna 5dBi for 2.4GHz band - BLE antenna 3.5dBi at 2.4GHz band
Frequency Bands (GHz)
Radio 1 Capabilities	- Band: 2.4 GHz or 5.0 GHz(High Band) a/b/g/n/ac/ax (2x2:2 stream) - Channel width: 20/40/80MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM
Radio 2 Capabilities	- 5.0GHz a/b/g/n/ac/ax (2x2:2 stream) - Channel width: 20/40/80MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM
Radio 3 Capabilities	- Service: (2x2:2 stream) - Band: 2.4 GHz service b/g/n/ax - Channel width: 20/40MHz - Modulation: BPSK, QPSK, 64/256/1024QAM - Scan: dual band scan
Maximum Data Rate	- Radio 1: up to 1201 Mbps - Radio 2: up to 1201 Mbps - Radio 3: up to 574 Mbps
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces	- 2x 10/100/1000 Base-T RJ45 - 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE)	- 1 x 802.3at PoE default - 1 x 802.af PoE with reduce TX power and no USB function
Simultaneous SSIDs	Up to 24 (21 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist
Maximum Tx Powerr (Conducted)	- Radio 1: • 2.4GHz: 23 dBm / 200 mW (2 chains combined) • 5GHz: 22 dBm / 158 mW (2 chains combined) - Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined) - Radio 3: • 2.4GHz: 23 dBm / 200 mW (2 chains combined) • 5GHz: 22 dBm / 158 mW (2 chains combined)
Kensington Lock	✔
IEEE Standards	802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az
SSID Types Supported	Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity	Up to 512 clients per radio (all radios)
Cellular Co-existence	✔
Reset Button	✔
LED Off Mode	✔
Advanced 802.11 Features	- Transmit Beam Forming (TxBF) - Low-Density Parity Check (LDPC) Encoding - Maximum Likelihood Demodulation (MLD) - Maximum Ratio Combining (MRC) - A-MPDU and A-MSDU Packet Aggregation - OFDMA - 2.4 GHz OFDMA - Spatial Reuse (BSS Coloring) - HE-MU-MIMO - UL MU-MIMO 802.11ax mode - UL MU-MIMO 802.11ac mode - DL-MU-MIMO - Enhanced Target Wake Time (TWT) - ZeroWait DFS /Agile DFS
Wireless Monitoring Capabilities
Rogue Scan radio modes	Background, Dedicated
WIPS / WIDS radio modes	Background, Dedicated (recommended)
Packet Sniffer Mode	✔
Spectrum Analyzer	✔
Dimensions
Length x Width x Height	6.5 x 6.5 x 2.05 inches (165 x 165 x 52 mm)
Weight	1.5 lbs (0.68 kg)
Mounting Options	Ceiling, T-Rail, and Wall
Included Accessories	Standard Mount kit for Ceiling, T-Rail, and Wall
Environment
Power Supply	SP-FAP200-PAX-XX
Power Consumption (Maximum)	18.5W
Humidity	5–90% non-condensing
Operating / Storage Temperature	32–122°F (0 - 50°C) / -22–158°F (-30–70°C)
Directives	Low Voltage Directive • RoHS
UL2043 Plenum Material	✔
Mean Time Between Failures	>10 Years

License & Phụ kiện sử dụng cho FortiAP FAP-U231F

SKU	Description
FC-10-P231F-247-02-DD	24x7 FortiCare Contract
SP-FAP200-PA-XX	AC adapter

Xem thêm

Thông số kỹ thuật

- FAP-U231F Indoor Wireless Universal AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: AC adapter SP-FAP200-PA-XX

- FC-10-P231-247-02-DD - 24x7 FortiCare Contract

Data sheet FortiAP U231F

Xem thêm thông số kỹ thuật
