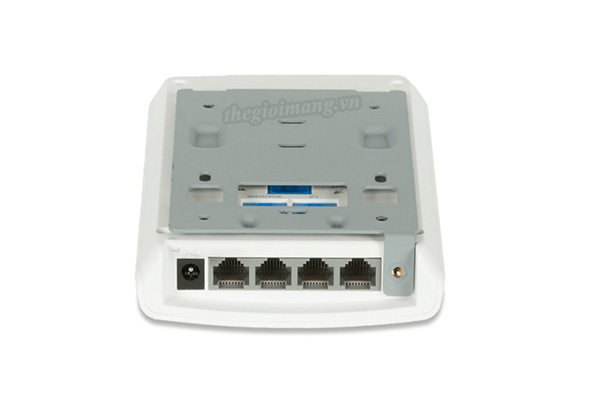

Fortinet FortiAP C24JE (FAP-C24JE): Wall Plate AP - Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 4 x 10/100/1000 RJ45 port (1x 802.3at PoE PD, 1x 802.3af PoE PSE, 2x Non-PoE Ports). Wall plate mounting kit includedFor power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị mạng không dây Indoor Wireless Access Point FortiNet FortiAP C24JE (FAP-C24JE)

Mã sản phẩm	FAP-C24JE
Hardware
Hardware Type	Indoor Wall Plate AP
Number of Radios	2
Number of Antennas	4 internal
Peak Antenna Gain	1.5 dBi for 2.4 GHz, 2 dBi for 5 GHz
Frequency Bands (GHz)	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1	2.4 GHz b/g/n (2x2:2 stream) 20/40 Mhz (256 QAM)
Frequency of Radio 2	5 GHz a/n/ac (2x2:2 stream) 20/40/80/160 MHz (256 QAM)
Maximum Data Rate	Radio 1: up to 300 Mbps, Radio 2: up to 867 Mbps
Interfaces	6x 10/100/1000 Base-T RJ45 Ports (1x 802.3at PoE (PD), 1x 802.3af PoE (PSE), 2x Non-PoE Ports, 1x Pass-through in, 1x Pass-through out, 1x RS-232 RJ45 Serial Port
Serial Console Port	1x RJ45 RS232
Power over Ethernet (PoE)	1x PoE RJ45 port If powered by 802.3af (15.4 W) Max PSE Output = 4 W If powered by 802.3at (25.5 W) Max PSE Output = 15.4 W
Simultaneous SSIDs	16 capable
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power	20 dBm (100 mW)*
Physical Security	No
IEEE Specifications	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az
Support Local-Authentication SSID using Open or WPA2-Personal Security	Yes
Support 64-digit Hexadecimal Passphrase for WPA2-Personal Security	Yes
Support Captive-portal SSID	Yes
Support Local-Standalone SSID when Managed by FortiCloud (in Bridge mode only)	Yes
FortiPresence Capable	No
Wireless Mesh Capable	No
Management Systems	FortiGate or FortiCloud
SSID Types Supported	Local-Bridge, Tunnel
FortiDeploy & FortiCloud Key	Yes
Per Radio Client Capacity	Up to 64
LED Off Mode	Yes
Advanced 802.11 Features
802.11ac Wave 2 MU-MIMO	Yes
Transmit Beam Forming (TxBF)	Yes
Low-Density Parity Check (LDPC) Encoding	Yes
Maximum Ratio Combining (MRC)	Yes
A-MPDU and A-MSDU Packet Aggregation	Yes
MIMO Power Save	Yes
Short Guard Interval	Yes
Wireless Monitoring Capabilities
Frequencies Scanned	N/A
Background Scan with Client Access on 2.4 and 5 GHz	No
Full-time Scan as Dedicated Monitor	No
Full-time scan with client access	No
Packet sniffer mode	No
Spectrum analyzer	No
Dimensions
Diameter x Height	6.69 x 4.04 x 1.08 inches (AP size) 170 x 102.5 x 27.5 mm (AP size)
Weight	1.3 lb (0.6 kg)
Package (shipping) Weight	1.6 lb (0.74 kg)
Mounting Options	Wall
Included Accessories	Wall mount bracket
Environment
Power Supply	PoE 802.3af (15.4 W) Option: 12V/2A AC adapter (not provided)
Humidity	5–90% non condensing
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-4–158°F (-20–70°C)
Directives	Low Voltage Directive • RoHS
UL2043 Plenum Material	No
Mean Time Between Failures	>10 Years
UL2043 Plenum Material	N/A
Certifications
SRRC (China)	Yes
Warranty
Limited Lifetime Warranty	Yes

License sử dụng cho FortiAP FAP-C24JE

SKU	Description
FC-10-PC24E-247-02-DD	24x7 FortiCare Contract

FAP-C24JE: Wall Plate AP - Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 4 x 10/100/1000 RJ45 port (1x 802.3at PoE PD, 1x 802.3af PoE PSE, 2x Non-PoE Ports). Wall plate mounting kit includedFor power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130.

FC-10-PC24E-247-02-DD: 24x7 FortiCare Contract

Data sheet FortiAP C24JE
