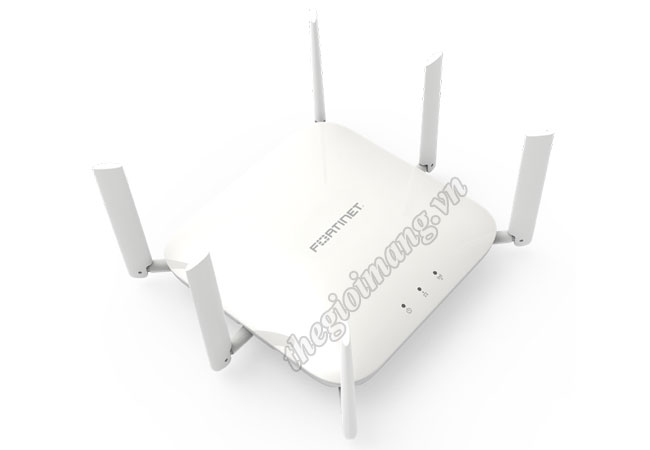

Fortinet FortiAP 243K (FAP-243K) : Bộ phát sóng Wi-Fi-7 Tri-band 2.4/5/6GHz 2+2+2 2 streams 4 radios, 6 ăng-ten gắn ngoai
FortiAP 243K (FAP-243K) là bộ thu phát sóng Wi-Fi 7 lắp đặt trong nhà cấp độ doanh nghiệp , AP này cung cấp bốn băng tần và 2 luồng dữ liệu đồng thời. Điểm truy cập này hỗ trợ băng tần 6 GHz, có 1x cổng 10 Gigabit Ethernet và 1x cổng 1 Gigabit Ethernet. Các AP có thể cung cấp chức năng quét 24/7 qua tất cả các băng tần trong khi vẫn cung cấp khả năng truy cập trên các băng tần 2,4 GHz, 5 GHz và 6 GHz. Tích hợp sẵn kênh BLE/ZigBee có thể được sử dụng cho các ứng dụng cảnh báo và định vị..
Fortinet FAP-243K
Thông số Fortinet FortiAP 243K
| Mã sản phẩm | FAP-243K |
|---|---|
| Hardware | |
| Type | Indoor AP |
| Number of Radios | 4-Radio 2.4GHz + 5.0GHz + 6GHz + Tri-band scan |
| Number of Antennas | 6 External RPSMA antenna connector: x2 Dual band + x2 6GHz band + x2 Tri-band Scanning 1 Internal 2.4GHz band BLE/ ZigBee antenna |
| Antenna Type Support | RP-SMA (6 total): Dual Band Antenna (2), 6Ghz Antenna (2), Triband Antenna (2) |
| Antenna Type and Peak Gain | Omni Directional Dual band antenna: 4.5 dBi for 2.4GHz, 5.7 dBi for 5 GHz Omni Directional 6GHz band antenna: 5.25 dBi for 6GHz band Tr-band Omni directional antenna: 3.3 dBi for 2.4GHz, 5.6 dBi for 5GHz, and 5.3 dBi for 6GHz band PIFA BLE antenna: 5.2 dBi for 2.4GHz |
| Maximum Data Rate | 2.4GHz band: up to 688 Mbps 5.0GHz band: up to 4.324 Gbps 6.0GHz band: up to 5.765 Gbps |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power |
| Interfaces | 1x 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) 1x 10M/100M/1000M/Ethernet (RJ45) 1x Type 2.0 USB at 2.5W 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 1x 802.3bt PoE default |
| Simultaneous SSIDs | Up to 24 |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist |
| Maximum Tx Power (Conducted) | 2.4GHz band: 25 dBm/316 mW (2 chains combined)* 5.0GHz band: 26 dBm/400 mW (2 chains combined)* 6.0GHz band: 23 dBm/200 mW (2 chains combined@320MHz BW)* |
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2, and Radio3) |
| Dimensions | |
| Length x Width x Height | 7.48 x 7.48 x 2.01 inches (190 x 190 x 51 mm) |
| Weight | 2.6 lbs (1.18 kg) |
| Package (shipping) Weight | 4.6 lbs (2.09 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Standard Mounting Kit for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | 802.3bt PoE: GPI-145 or 802.3at PoE: GPI-130 with USB disabled or 12V, 3A, 36 Watt DC power supply SP-FAP400-PA-XX |
| Power Consumption (Max) | 26.1 W |
| Humidity | 5–90% Non-Condensing |
| Operating / Storage Temp. | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) |
| Directives | Low Voltage Directive * RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | > 10 Years |
| Surge Protection Built In | Yes |
| Warranty | |
| Limited Lifetime Warranty | Yes |
FortiAP-243K - FAP-243K - Indoor Wireless AP - (Wi-Fi-7 Tri-band 2.4/5/6GHz 2+2+2 2 streams 4 radios), external antennas, 1x10/100/1000 RJ45, 1x 100/1000/2500/5000/10000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.
FC-10-P243K-247-02-DD - FortiCare Premium Support
FC-10-P243K-284-02-DD - FortiCare Elite Support.
FC-10-P243K-314-02-DD - FortiCare Essential Support for FortiAP. Available only for renewal and not with initial Hardware purchase.
Tính năng Fortinet FortiAP 243K (FAP-243K)
| Hardware | |
|---|---|
| Frequency Bands (GHz) | 2.4GHz Band: ISM 2.4-2.484GHz 5.0GHz Band: UNII-1 5.15-5.25GHz UNII-2A 5.25-5.35GHz UNII-2C 5.47-5.73GHz UNII-3 5.725-5.85GHz UNII-4 5.85-6.895GH 6GHz Band: UNII-5 5.925-6.425GHz UNII-6 6.425-6.525GHz UNII-7 6.525-6.875GHz UNII-8 6.875-7.125GHz |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160/240MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
| Radio 4 Capabilities | Frequency band: 2.4/5.0/6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Scanning |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az |
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| UL-MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
| Onboard Security Functions | |
| UTP Capable | No |
| UTP Features | N/A |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Dedicated |
| WIPS / WIDS Radio Modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Certifications | |
| Wi-Fi Alliance Certified | Certified (Wi-Fi 7 in progress) |
| DFS | No |
