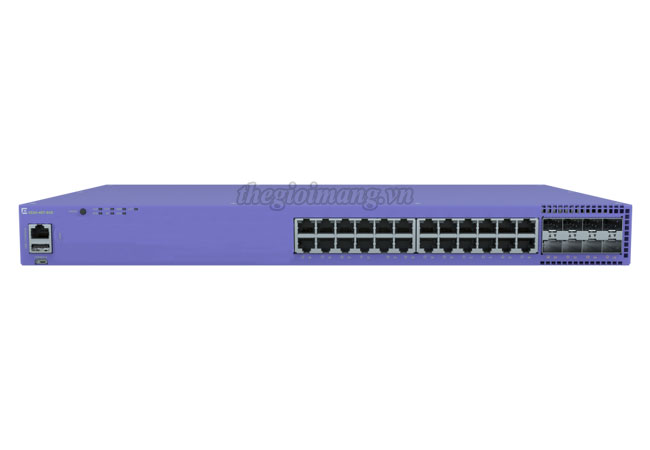

Extreme 5320-24T-8XE

Extreme 5320-24T-8XE 5320 Universal Edge Switch :

  • 24 x 10/100/1000Base-T ports
  • 8 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb)
  • 1 internal fixed AC PSU, fixed fan modules
  • Base software license
  • Includes 1-year ExtremeCloud IQ Pilot Subscription
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Extreme 5320-24T-8XE

Model 5320-24T-8XE
Interfaces 24 x 10/100/1000Base-T ports
  • Full/Half-Duplex (autosensing)
  • MACsec-capable
8 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb)
  • Can be upgraded to 10Gb SFP+ via software license
  • MACsec-capable
  • 100Mb operation supported on last 4 uplink ports
1 x Serial console port (RJ-45)
1 x USB A ports for management or external USB flash
1 x USB Micro-B console port
Max Active 10/100/1000Mb ports 24
Max Active 1Gb/10Gb SFP/SFP+ ports 8
Max Active 10Gb Stacking ports 2
Aggregated Switch Bandwidth 208 Gbps
Max Frame Forwarding Rate 154.8 mpps
Software Scaling Values 5320 with Switch Engine (EXOS)
• MAC Table: 32,000
• IPv4 ARP Table: 16,000
• IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models)
• IP Multicast Entries (S,G,V): 6,000
• IPv6 Neighbor Table: 6,000
• IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models)
• ACLs (Ingress/Egress): 8,000/1,024 (48-port models); 8,000/512 (16 and 24-port models)
• QoS Egress Queues per port: 8
• VLANs: 4,094
• Routed VLANs: 1533 (48-port models); 509 (16 and 24-port models)
5320 with Fabric Engine (VOSS)
• MAC Table: 32,000
• IPv4 ARP Table: 15,000 (48-port models); 8,000 (16 and 24-port models)
• IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models)
• IP Multicast Entries (S,G,V): 4,000 (48-port models); 2,000 (16 and 24-port models)
• IPv6 Neighbor Table: 8,000
• IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models)
• ACLs (Ingress/Egress): 1,024/400 (48-port models); 1,024/190 (16 and 24-port models)
• QoS Egress Queues per port: 8
• VLANs: 4,059
• IP Interfaces (Routed VLANs): 248
Weights and Dimensions
Weight  3.7 kg
Physical Dimensions 440 mm/43.6 mm/280 mm
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts) 18
Minimum Heat Dissipation (BTU/hr) 60
Maximum Power Consumption (Watts) 50
Maximum Heat Dissipation (BTU/hr) 171
Operating Conditions • Temp: 0° C to 50° C (32° F to 122° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Altitude: 0 to 3,000 meters (9,850 feet)
• Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms

5320-24T-8XE : 5320 Universal Switch with 24 x 10/100/1000BASE-T full/half duplex ports, 8 x 1Gb SFP ports upgradeable to 10Gb SFP+ (includes 2 x Stacking ports @10Gb), 1 internal fixed AC PSU, fixed fan modules, 2-post rack-mount kit, Base software license, includes 1-year ExtremeCloud IQ Pilot Subscription.

Data sheet Extreme 5320 Series Universal Edge Switch Platform
