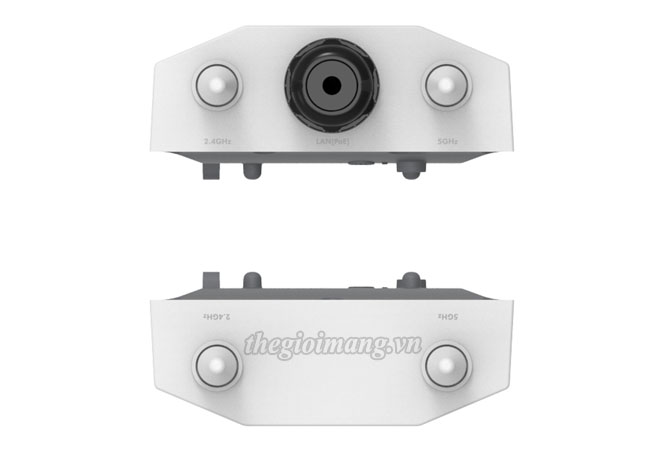

EnGenius EWS850AP

Thiết bị phát WiFi EnGenius EWS850AP: Wi-Fi 6 2x2 Managed Outdoor Wireless AP/Bridge ● Speeds of 574 Mbps/2.4 GHz and 1,200 Mbps/5 GHz along with WPA3 ● 2.5 Gigabit Ethernet PoE port for flexible power options ● Management Options: SkyKey, ezMaster, EnWiFi App.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát WiFi EnGenius EWS850AP

Product EWS850AP
Technical Specifications
Standards - IEEE 802.11ax on 2.4 GHz
- IEEE 802.11ax on 5 GHz
- Backward compatible with 802.11a/b/g/n/ac
Processor Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz
Antenna Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna SMA-Type
Physical Interface 1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port
Power Source - IEEE 802.11af/at Compliant Source
- Power-over-Ethernet: Proprietary 48V to 54V PoE
- IEEE 802.11e Compliant Source
Maximum Power Consumption 15.9 W
Surge Protection 1KV
ESD Protection - Contact: 4KV
- Air: 8 KV
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP mode, WDS AP mode, WDS Bridge mode, WDS Station mode, Mesh Mode
Frequency Radio - 2.4 GHz: 2400 MHz ~ 2482 MHz
- 5 GHz:
  • 5150 MHz ~ 5250 MHz
  • 5250 MHz ~ 5350 MHz
  • 5470 MHz ~ 5725 MHz
  • 5725 MHz ~ 5850 MHz
Transmit Power - 2.4GHz: 23dBm
- 5GHz: 25dBm
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream 2x2:2
SU-MIMO Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11AX wireless client device under the both 2.4G Hz and 5GHz radio.
MU-MIMO - Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11AX capable wireless client devices under 5GHz simultaneously.
- Two (2) spatial streams Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11AX capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps): - 2.4 GHz: Max 574
- 5 GHz: Max 1.200
Management
Multiple BSSID 8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging - Supports 802.1q SSID-to-VLAN Tagging
- Cross-Band VLAN Pass-Through
- Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint With IEEE 802.11e Standard WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Wireless Security - WPA3
- WPA2 Enterprise (AES)
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- HTTPS, SSH.
- Client Isolation
Deployment Options - Stand-Alone (Individually Managed)
- Managed Mode (with Neutron Series Switch/ezMaster)
Environmental & Physical
Temperature Range - Operating: -4º~140ºF/-20ºC~60ºC
- Storage:  -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing) - Operating: 90% or less
- Storage: 90% or less
Waterproof & Dustproof IP67-Rated Enclosure
Device Dimensions & Weights
EWS850AP Device Weight: 1.54 lbs. (0.7 kg)
- 4.07” (124 mm)(W) x 7.48” (190 mm)(L) x 2.07” (52.5 mm)(H)
Packaging Weight: 3.96 lbs. (1.8kg)
- 9.21" (234 mm)(W) x 11.18" (284 mm)(L) x 5.67" (144 mm)(H)
Certifications CE, FCC, IC

EnGenius EWS850AP 2x2 Outdoor Wireless AP features the best in Wi-Fi 6 technology guaranteed to handle high capacity environments with greater speed and efficiency. Speeds of 574 Mbps/2.4 GHz and 1,200 Mbps/5 GHz along with WPA3/WPA2-PSK (AES) encryption make your network fast and secure, while a weatherproof/dustproof housing protects against harsh environments.

  • Features dual concurrent 802.11ax architecture that is backward-compatible with 11ac/a/b/g/n client devices
  • Supports up to 1,200 Mbps in a 5-GHz frequency band & 574 Mbps in a 2.4-GHz frequency band
  • IP67-rated weatherproof/dustproof housing withstands harsh environments
  • 2.5 Gigabit Ethernet PoE port for flexible power options
  • Uplink and downlink of OFDMA improves transmission to APs and client devices
  • Saves power using a target wake time in client & IoT devices
  • Uplink & downlink of MU-MIMO provides optimal signal and reception for up to eight devices
  • BSS coloring for tagging packets with a “color” differentiates between adjacent basic service sets

 Data sheet EnGenius EWS850AP
