Thiết bị định tuyến DrayTek Vigor2135: Gigabit Broadband Single-WAN Router for Home/SOHO ● 1 WAN GbE RJ-45 or SFP Slot ● 2 VPN: IPsec throughput up to 150 Mbps ● 2 SSL VPN Throughput up to 100 Mbps ● 50k Sessions Throughput up to 600 Mbps ● Max. NAT Throughput: 940 Mbps

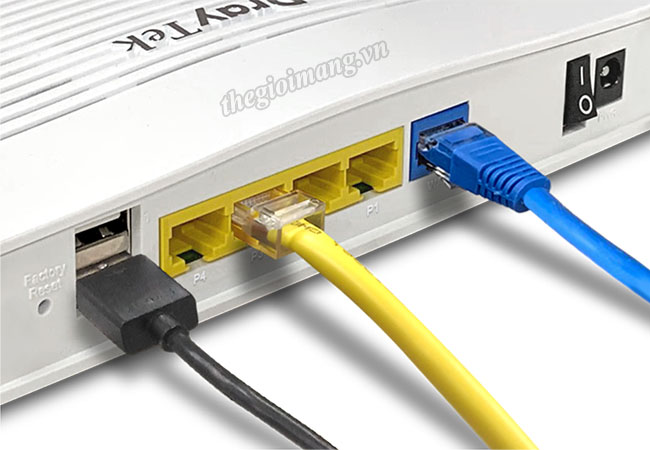

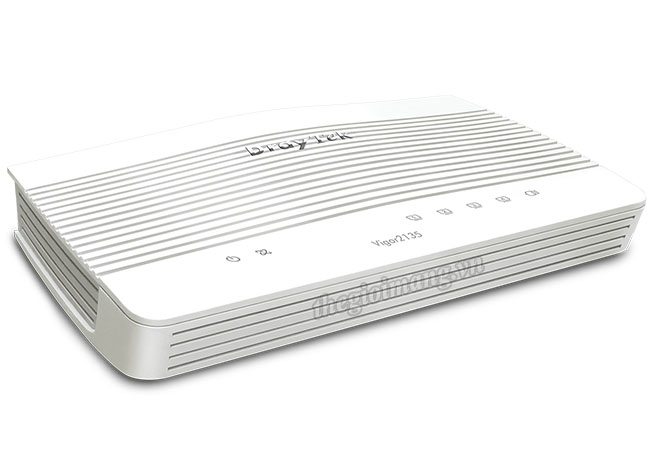

Thiết bị Router Draytek Vigor2135
| Product | Vigor2135 |
| Interface | |
| WAN Port | 1x Gigabit Ethernet |
| LAN Port | 4x Gigabit Ethernet |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Performance | |
| NAT Throughput | 600 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps |
| IPsec VPN Performance | 150 Mbps (AES 256 bits) |
| SSL VPN Performance | 100 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels | 2 |
| Physical | |
| Power Supply | DC 12V @ 1-1.5A |
| Max. Power Consumption | 18 watts |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 440g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity | 10 to 90% (non-condensing) |
| Data sheet DrayTek Vigor2135 | |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | ✔ |
| Multi-VLAN/PVC | ✔ |
| 3G/4G/LTE WAN with USB modem | ✔ |
| WAN Failover | ✔ |
| Connection Detection | ARP, Ping, Strict ARP |
| WAN Data Budget | ✔ |
| Dynamic DNS | ✔ |
| DrayDDNS | ✔ |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 4 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | ✔ |
| Port Mirroring | ✔ |
| Local DNS Server | ✔ |
| Conditional DNS Forwarding | ✔ |
| Hotspots Web Portal | ✔ |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | ✔ |
| DNS Security (DNSSEC) | ✔ |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| SMB File Sharing | ✔ (Requires external storage) |
| VPN | |
| LAN-to-LAN | ✔ |
| Teleworker-to-LAN | ✔ |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| Single-Armed VPN | ✔ |
| NAT-Traversal (NAT-T) | ✔ |
| DrayTek VPN Matcher | ✔ |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | ✔ |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (subscription required) |
| DoS Attack Defense | ✔ |
| Spoofing Defense | ✔ |
| Bandwidth Management | |
| IP-based Bandwidth Limit | ✔ |
| IP-based Session Limit | ✔ |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | ✔ |
| APP QoS | ✔ |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import | ✔ |
| Config File Compatibility | Vigor2132 Series, Vigor2133 Series |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | ✔ |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | ✔ |
| Managed by VigorACS | ✔ |
| Central AP Management | 2 VigorAP |
| Mesh Network | 7 VigorSwitch |
