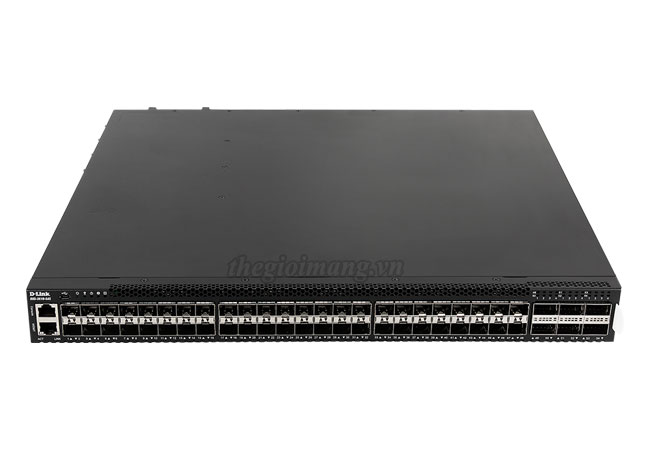

Thiết bị chuyển mạch Switch Dlink DXS-3610-54S
| Model | DXS-3610-54S |
| Size | • 19-inch, 1U rack-mount |
| Interfaces | • 48 x 1/10GbE SFP/SFP+ ports • 6 x 40/100GbE QSFP+/QSFP28 ports |
| Console Port | • RJ-45 console port for out-of-band management |
| Management Port | • 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management |
| Alarm Port | • 1 x RJ-45 port |
| USB Port | • 1 x USB 2.0 Type A port |
| Performance | |
| Switching Capacity | • 2.16 Tbps |
| Max. Forwarding Rate | • 1607.04 Mpps |
| Packet Buffer Memory | • 32 MB |
| MAC Address Table2 | • Up to 288K |
| IPv4 Routing Table2 | • Up to 32K |
| IPv6 Routing Table2 | • Up to 16K |
| IPv4 Forwarding Table2 | • Up to 144K |
| IPv6 Forwarding Table2 | • Up to 144k |
| Jumbo Frame Size | • 9436 bytes |
| Physical | |

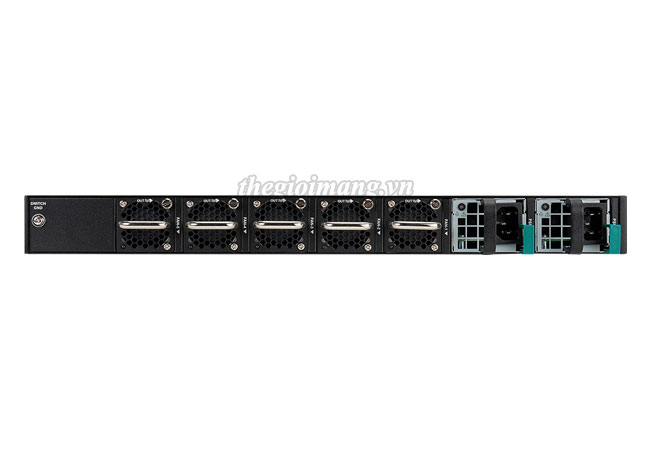

| Power Input | • 1 + 1 redundant power supply design • Input: 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption | • 320.8 W |
| Standby Power Consumption | • 120.6 W |
| Heat Dissipation (Max.) | • 1083 BTU/hr |
| Acoustics | • Max: 79.4 dB(A) • Min: 65.3 dB(A) |
| Fans | • 5 x fans |
| Dimensions (W x L x H) | • 441.0 x 487.44 x 43.5 mm (17.36 x 19.19 x 1.71 in) |
| Weight | • 9.80 kg (21.61 lbs) |
| Operating Temperature | • 0 to 45 °C (32 to 113 °F) |
| Storage Temperature | • -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | • 0% to 95% RH |
| Storage Humidity | • 0% to 95% RH |
| MTBF | • 94,262 hours |
Tuỳ chọn License cho DXS-3610-54S
| DXS-3610-54S-SE-LIC | DXS-3610-54S Standard Image to Enhanced Image License |
DXS-3610-54S/SI : 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-to-back fan modules
DXS-3610-54S/EI : 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Enhanced Image with 2 full load front-to-back AC PSUs and 5 front-to-back fan modules
Data sheet D-Link DXS-3610 Series Layer 3 Stackable 10G Managed Switches
