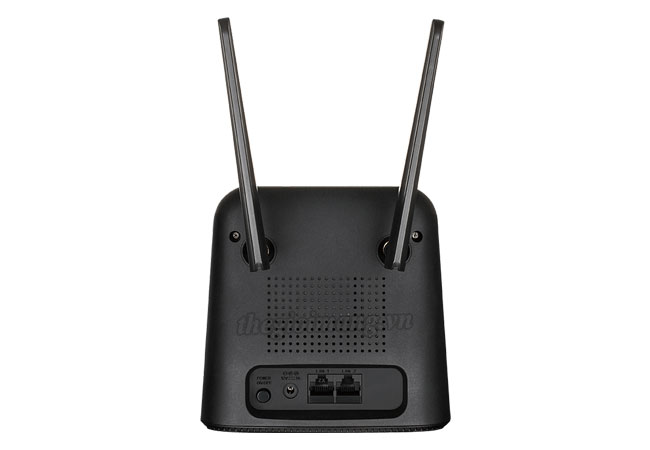

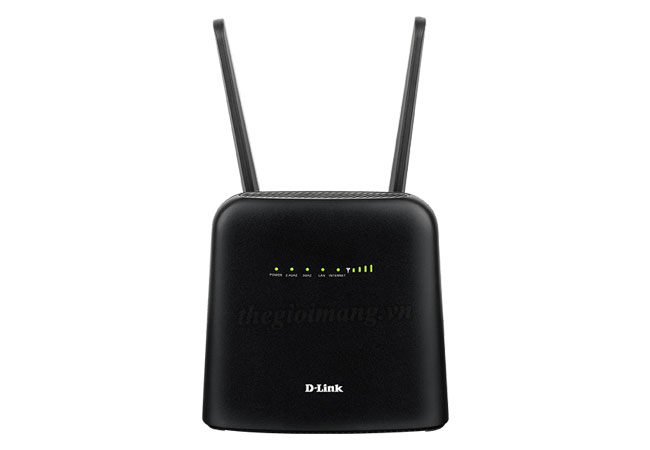

Thiết bị Router Dlink DWR-960 LTE Cat7 Wi-Fi AC1200
| Model | DWR-960 |
| General | |
| Device Interfaces | • 1 x 10/100/1000 Gigabit Ethernet WAN/LAN port, 1 x 10/100/1000 Gigabit Ethernet LAN ports, 1 x Mini-SIM/UICC Slot, 1 x Reset Button, 1 x WPS Button, 1 x Power Port |
| LED | • Power, Internet, 2.4 GHz, 5 GHz, LAN, Signal Strength |
| Antenna Type | • Two detachable 3G/4G antennas |
| Functionality | |
| Frequency Support | • LTE Bands: FDD:1/3/7/8/20(2100/1800/2600/900/800 MHz, TDD: 38 (2600 MHz), Carrier Aggregation (CA) Support: 1+3/1+7/1+8/1+20/3+8/3+2/3+7/3+38/7+20/3+3/7+7/38+38 • UMTS: 1/8 (2100/900 MHz) • GSM/GPRS: Quad-Bands (850/900/1800/1900 MHz) |
| Data Rates1 | • LTE Downlink: Up to 300 Mbps, LTE Uplink: Up to 100 Mbps • DC-HSPA Downlink: Up to 42 Mbps, DC-HSPA Uplink: Up to 5.72 Mbps |
| Wireless IEEE Standard | • IEEE 802.11n/ac |
| Wi-Fi Data Rate1 | • Up to 1200 Mbps with 802.11ac + 802.11n dual mode • Up to 866 Mbps with 802.11ac clients • Up to 300 Mbps with 802.11n clients |
| WAN Interface | • Static IP, dynamic IP (DHCP client), PPTP, and L2TP. |
| Security Protocol | • 64/128-bit WEP (Wired Equivalent Privacy), WPA & WPA2 (Wi-Fi Protected Access) |
| Firewall | • Network Address Translation (NAT), URL Blocking, Stateful Packet Inspection (SPI), MAC Filtering |
| Software | |
| Device Management | • Web UI |
| Physical | |
| Size | • 132 x 126 x 44 mm |
| Weight | • 300 g |
| Operating Temperature | • 0 to 40 °C |
| Storage Temperature | • -10 to 70 °C |
| Operating Humidity | • 10% to 90% non-condensing |
| Storage Humidity | • 5% to 95% non-condensing |
| Certifications | • CE , RoHS |
