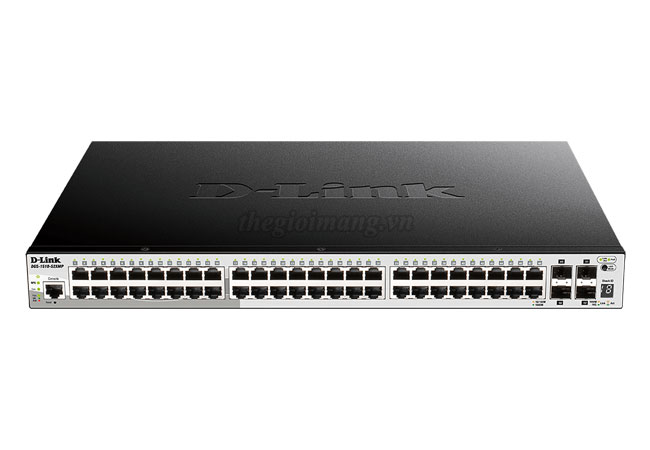

Thiết bị mạng Switch Dlink DGS-1510-52XMP
Model | DGS-1510-52XMP |
Hardware Version | A1 |
Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation |
Number of Ports | 48 x 10/100/1000 Mbps PoE capable, 4 x 10G SFP+ |
Network Cables | UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.) |
Full/Half Duplex | Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed |
Media Interface Exchange | Auto or configurable MDI/MDIX |
Performance | |
Switching Capacity | 176Gbps |
Transmission Method | Store-and-forward |
MAC Address Table | Up to 16,384 entries per device |
MAC Address Update | Up to 512 static MAC entries, Enable/disable auto-learning of MAC addresses |
Maximum 64 bytes Packet Forwarding Rate | 130.95Mpps |
Packet Buffer Memory | 3MB per device |
MTBF | 303,027 Hours |
PoE | |
PoE Standard | IEEE 802.3af, 802.3at |
PoE Capable Ports | Ports 1 to 48: Up to 30 W |
PoE Power Budget | Max. 370 W (740 W with DPS-700 RPS redundant power supply) |
Physical & Environment | |
AC Input | 100 to 240 VAC 50/60 Hz internal universal power supply |
Maximum Power Consumption | 486.9 W (PoE on), 58.8W (PoE off) |
Standby Power Consumption | 40.1 W |
Smart Fan Quantity | 4 x smart fans |
Acoustics | 55.4 dB(A) |
Heat Dissipation | 1660.329 BTU/hr |
Operation Temperature | -5 to 50 ˚C (23 to 122 ˚F) |
Storage Temperature | -20 to 70˚C (-4 to 158 ˚F) |
Operation Humidity | 0% to 95% non-condensing |
Storage Humidity | 0% to 95% non-condensing |
Dimensions | 440 x 308 x 44 mm |
Weight | 5.41 kg |
Diagnostic LEDs | Power/Stacking ID/Fan Error/PoE Push Button (per device), Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port), Link/Activity/Speed (per SFP port), Link/Activity/Speed (per 10G SFP+ port) |
Certifications | CE, FCC, C-Tick, VCCI, BSMI, CCC |
Safety | cUL, CB |
