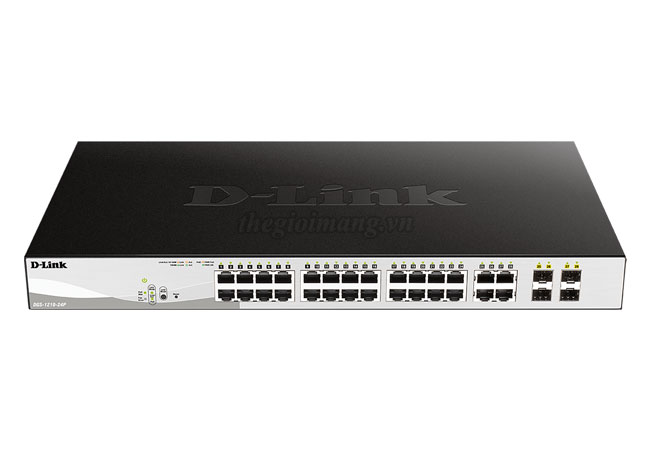

Thiết bị mạng Switch Dlink DGS-1210-24P
| Model | DGS-1210-24P |
| Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode, IEEE 802.3af compliance, IEEE 802.3at compliance, Auto-negotiation |
| Number of Ports | • 24 x 10/100/1000BASE-T PoE ports • 4 x Combo 10/100/1000BASE-T/SFP ports |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.) |
| Full/Half Duplex | Full/half duplex for 10/100 Mbps speeds; Full duplex for Gigabit speed |
| Media Interface Exchange | Auto or configurable MDI/MDIX |
| Performance | |
| Switching Capacity | 56 Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K entries per device |
| MAC Address Update | Up to 256 static MAC entries, Enable/disable auto-learning of MAC addresses |
| Maximum 64 bytes Packet Forwarding Rate | 41.7 Mpps |
| Packet Buffer Memory | 4.1 Mbits |
| PoE | |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| PoE Capable Ports | Ports 1 to 24: Up to 30 W |
| PoE Power Budget | Max. 193 W |
| Physical & Environment | |
| AC Input | 100 to 240 VAC 50/60 Hz internal universal power supply |
| Maximum Power Consumption | PoE Enable: 247.4W PoE Disable: 28.1W |
| Standby Power Consumption | 16.6 W |
| Fan Quantity | 1 |
| Acoustics | High Speed: 51.7 dB(A) Low Speed: 44.9 dB(A) |
| Heat Dissipation | 844.23 BTU/hr |
| Operation Temperature | -5 to 50 ˚C (23 to 122 ˚F) |
| Storage Temperature | -20 to 70˚C (-4 to 158 ˚F) |
| Operation Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
| Dimensions | 440 x 250 x 44 mm 19” standard rack mounting width, 1U height |
| Weight | 3.75 kg |
| Diagnostic LEDs | Power (per device), Fan (per device), Link/Activity/Speed/PoE (per 10/100/1000Base-T port), Link/Activity/Speed (per combo port), Button to switchLED display mode between PoE and Link/Activity |
| MTBF | 469,262 hours |
| Certifications and Safety | CE Class A, cUL, CE LVD |
