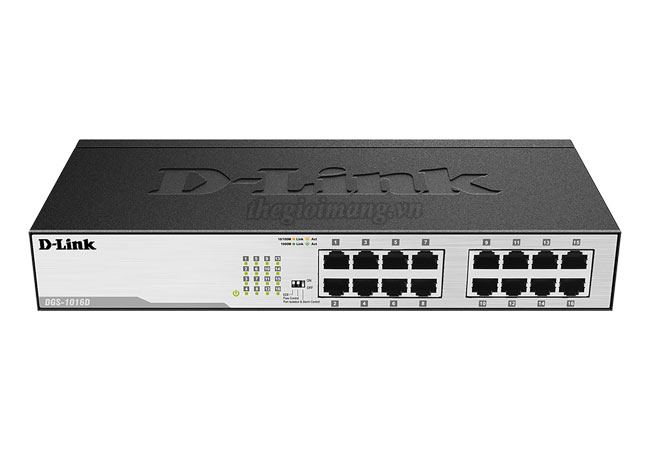

Thiết bị mạng Switch Dlink DGS-1016D
| Model | DGS-1016D |
| General | |
| Number of Ports | • 16 10/100/1000 Mbps ports |
| Standards | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.1p Quality of Service (QoS) • IEEE 802.3x Flow Control supported for full-duplex • Auto-negotiation • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Data Transfer Rates | • Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex) • Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) • Gigabit Ethernet: 2000 Mbps (full-duplex) |
| Network Cables | • Ethernet: 2-pair UTP Cat.3/4/5/5e, Unshielded Twisted Pair (UTP) Cable • Fast Ethernet: 2-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable • Gigabit Ethernet: 4-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable |
| Functionality | |
| D-Link Green Features | • Power saving by link status and cable length |
| Security | • Storm Control |
| QoS (Quality of Service) | • 802.1p priority • 8 queues |
| Cable Diagnostics | • Indicated through port LEDs |
| Switching Features | |
| Protocol | • CSMA/CD |
| Switching Capacity | • 32 Gbps |
| Max. Forwarding Rate | • 23.81 mpps |
| Packet Buffer RAM | • 512 KBytes per device |
| Filtering Address Table | • 8K MAC addresses per device |
| Packet Filtering/Forwarding Rate | • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port |
| MAC Address Learning | • Self-learning, auto-aging |
| Forwarding Mode | • Store-and-forward |
| Physical | |
| Indicator LEDs | • Power LED (per device) • Link/Activity/Speed LEDs (per port) |
| DIP Switch | • Energy-Efficient Ethernet (EEE) • Flow Control • Port Isolation and Storm Control |
| AC Inputs | • Internal universal power supply • 100~240 V AC; 50 to 60 Hz, 0.2 A max |
| Maximum Power Consumption | • 10.07 W |
| Standby Power Consumption | • 3.02 W |
| Maximum Heat Dissipation | • 34.3 BTU/h |
| MTBF | • 1,882,372 hours |
| Acoustic Value | • 0 dB(A) Fanless |
| Dimensions | • 280 x 125 x 44 mm (11.02 x 4.92 x 1.73 inch) |
| Weight | • 1.02 kg (2.25 lbs) |
| Operating Temperature | • 0 ºC to 40 ºC (32 ºF to 104 ºF) |
| Storage Temperature | • -10 ºC to 70 ºC (14 ºF to 158 ºF) |
| Operating Humidity | • 0% to 95% RH, non-condensing |
| Storage Humidity | • 0% to 95% RH |
