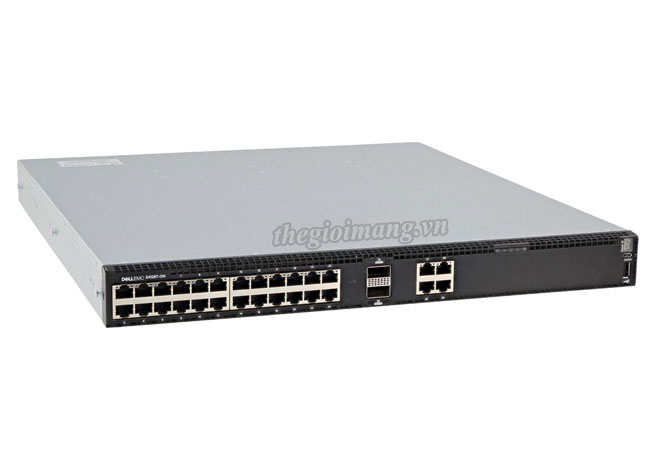

Thiết bị chuyển mạch Switch Dell EMC S4128T-ON
| Model | S4128T-ON |
| Performance | |
| Switching capacity (full duplex) (Gbps) | 960 |
| Forwarding Capacity (Mpps) | 714 |
| Buffer size | 12MB |
| Ports | |
| 1/10GBase-T | 28 |
| 10GbE | 36 |
| 25GbE | 8 |
| 40GbE | 2 |
| 50GbE | 4 |
| 100GbE | 2 |
| Expansion module slots (Modules support speed indicated) | N/A |
| Power and cooling | |
| Max. power consumption (W) | 300 (max)/250 (normal) |
| Power options | AC or DC |
| Redundant power supplies | 2 |
| Airflow | Normal or Reverse |
| Features | |
| Stacking | Not supported |
| Operating system | Dell EMC SmartFabric OS10 and select 3rd party OS |
| Industry-standard CLI | Dell EMC SmartFabric OS10 and several 3rd party OS |
| iSCSI optimization storage features | iSCSI optimization and FSB |
| Max L2 VLANs and L3 VLANs | 500 L3 VLANs |
| Max MAC entries | 272K |
| Link aggregation (groups/Members) | 32 links per group, 128 groups |
| Max routes (IPv4/IPv6) | 200K/130K |
| Jumbo frames (Bytes) | 9216 |
| IPv4 routing | OSPF, BGP |
| IPv6 routing | MP-BGP, OSPFv3 |
| Multicast routing | PIM-SM, PIM-SSM |
| VXLAN | Routing and Bridging |
S4128T : 28x 10GBASE-T, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow
S4128T : 28x 10GBASE-T, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module , PSU to I/O Panel Airflow
Data sheet DELL EMC POWERSWITCH S4100-ON High-performance open networking top-of-rack switches
