Đầu nối RJ45-Modular Jack LS CAT5e không chống nhiễu, dạng ERI, có mặt che bụi (LS-MJ-UC5E-xx-ERD) - Category 5e Unshielded Keystone Jack Black Color, ERI type with door
Đầu nối RJ45-Modular Jack LS CAT5e Unshielded ERI (LS-MJ-UC5E-xx-ERD)
Part Number: LS-MJ-UC5E-xx-ER

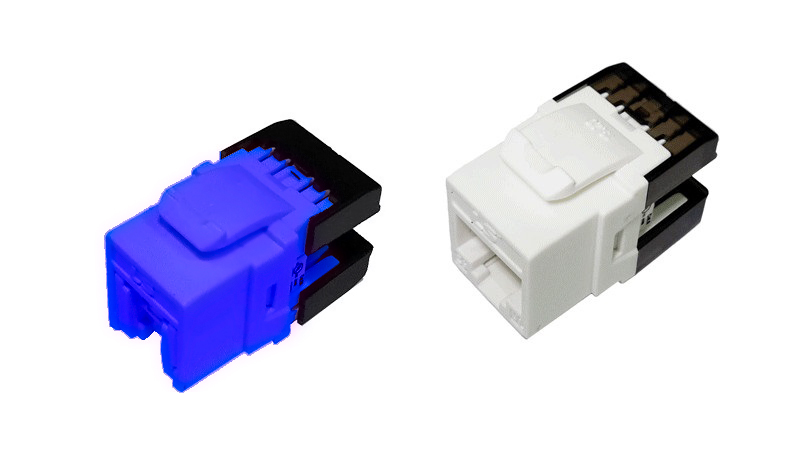

Category 5e Unshielded Keystone Jack White/Blue Color, ERI type with door.
Description
LS Simple™ Category 5e modular jacks are designed and manufactured to meet today’s and tomorrow’s demanding international standards. It takes into consideration the needs for reliable and quick installations. The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool and dedicated easy termination tool. User instructions and basic wiring layout for standard configuration are included. The LS simple™ Modular Jack comes with the ability to wire to a T568A or T568B configuration and fully complies with ANSI/TIA-568-C.2 (Category 5e) and ISO/IEC 11801(Class D) component performances. The slide door type modular jack for dust proof on unused port is applicable according to customer requirement and also 2-way slim IDC cover is applicable in HD system configuration.
- Meet Category 5e/Class D performance levels.
- Architectural design and flexibility – Support max. 4 connection channels.
- Universal design and label supports both T568A and T568B wiring.
- IDC Connector accepts and allows quick, easy installation of 23~26 AWG cable.
- Optimal performance is achieved when using LS simple™ Category 5e patch cords.
Application
- Horizontal Distribution & Backbone Cabling.
- 4/16 Mbps Token Ring (IEEE 802.5).
- 10/100/1000 BASE-T (IEEE 802.3).
- 155Mbps ATM.
- 100Mbps TP-PMD.
- ISDN, ADSL.
Specification
| Part Number | LS-MJ-UC5E-xx-ERD |
| Electrical / Mechanical Characteristics | |
| Current Rating | 1.5 A |
| DC Resistance | 0.1 Ω Max |
| Voltage | 150 VAC Max |
| Insertion Life | 750 Mating Cycles |
| Plug Retention Force | 20 lbs (89N) |
| Temperature | -40ºC ~ 68ºC |
| Humidity | 10% ~ 90% RH |
| IDC Accept | 22 ~ 26 AWG Solid Wire |
| Dimension | 0.76 x 0.66 x 1.5 inch |
| Materials | |
| Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
| Spring Wire | Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat |
| IDC Plastic | Polycarbonate or ABS, UL 94V-0 Rated |
| IDC Contact | Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin |
| Shield | Copper Zinc Alloy, Pre-Plated with Bright Nickel |
| Approvals | |
| Category | ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D |
| Wiring Scheme | T568A/T568B |
| Meet | FCC CFR 47 Parts 68 |
Sản xuất tại Đài Loan
| LS-MJ-UC5E-xx-ERD | Đầu nối cáp UTP CAT5e không chống nhiễu,dạng ERI, có mặt che bụi Category 5e Unshielded Keystone Jack Black Color, ERI type with door |
