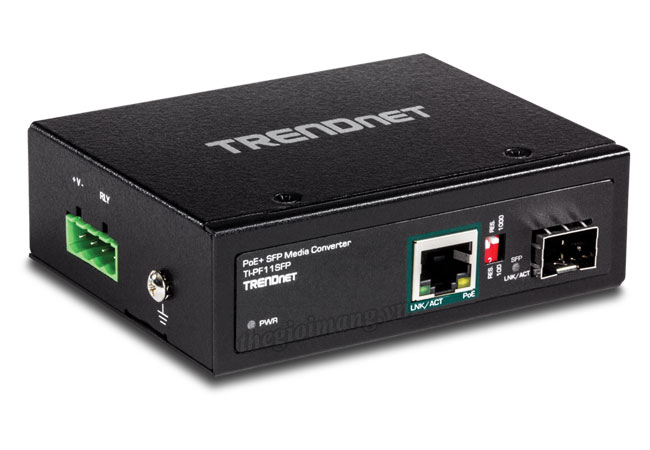

Thiết bị Converter Trendnet TI-PF11SFP
| Model |
TI-PF11SFP |
| Device Interface |
- 1 x Gigabit PoE+ port
- 1 x 100/1000Mbps SFP slot
- 4-pin removable terminal block
- LED indicators
- DIP Switch
- DIN-Rail mount
- Wall mount
- Grounding point
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
| Performance |
- Data RAM Buffer: 1MB
- Jumbo Frame: 9KB
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
|
| Power |
- Input: 48 - 56 V DC
- Compatible power supply: TI-S12048 (sold separately)
- Consumption: 2 watts (without PoE) with 48VDC input
|
| PoE |
- Mode A (V+ 1, 2; V- 3,6)
- Budget: 30 watts
- Consumption: Max. 36 watts with 56VDC input
|
| Terminal Block |
- Power and relay inputs, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
|
| DIP Switch |
- 1: reserved, no function
- 2: set SFP speed to 100Mbps or 1000Mbps
|
| MTBF |
|
| Housing |
- IP30 aluminum case
- DIN-rail mount
- Wall mount
- Grounding point
|
| Operating Temperature |
- - 40 to 75 °C (-40 to 167 °F)
|
| Operating Humidity |
|
| Dimensions |
- 104 x 81 x 32 mm (4 x 3.2 x 1.2 in.)
|
| Weight |
|
| Certifications |
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- EN60950-1 (LVD)
|
