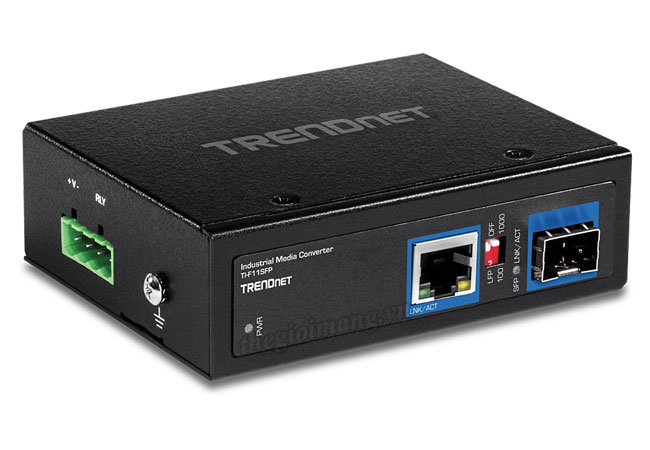

Thiết bị Converter Trendnet TI-F11SFP
| Model |
TI-F11SFP |
| Device Interface |
- 1 x Gigabit port
- 1 x Gigabit SFP slot
- 4-pin removable terminal block
- LED indicators
- DIP Switch
- DIN-Rail mount
- Wall mount
- Grounding point
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
|
| Performance |
- Data RAM Buffer: 1MB
- Jumbo Frame: 16KB
|
| Special Features |
- Hardened components rated for extreme temperatures
- 12 – 56V DC power input
- Alarm Relay
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV and Surge 2KV protection
|
| Power |
- Input: 12 – 56V DC
- Compatible power supply: TI-M6024 (sold separately)
- Max. consumption: 3W
|
| Terminal Block |
- Power input: 4-pin terminal block
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
|
| DIP Switch |
- 1: Turns LFP (Link Fault Pass Through) on/off
- 2: Set SFP speed to 100Mbps or 1000Mbps
|
| MTBF |
|
| Housing |
- IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- 8KV ESD protection
- 2KV surge protection
|
| Operating Temperature |
- -40° – 75° C (-40° – 167° F)
|
| Operating Humidity |
|
| Dimensions |
- 103 x 80 x 31mm (4.1 x 3.2 x 1.2 in.)
|
| Weight |
|
| Certifications |
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
|
