Mô tả sản phẩm

Bộ chuyển đổi quang điện Công nghiệp Planet IGT-900-2T2S

Model	IGT-900-2T2S
Hardware Specifications
Copper Ports	2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Fiber Ports	2 100/1000/2500BASE-X SFP interfaces (Port-3 and Port-4)
RAM	128MBytes
Flash Memory	64MBytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
ESD Protection	6KV
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit

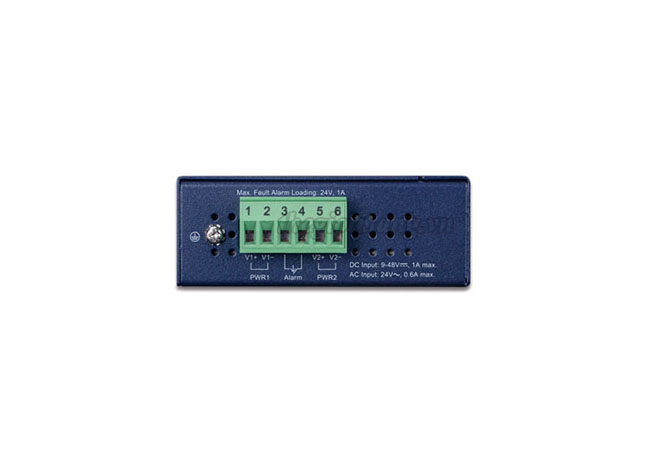

Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H)	32 x 87 x 135 mm (W x D x H)
Weight	390g
Power Requirements	Dual 9~48V DC, 24V AC
Power Consumption	AC Input Max. 10 watts/24BTU (Ethernet Full Loading) DC Input Max. 6.5 watts/24BTU (Ethernet Full Loading)
Switching
Switch Architecture	Store-and-Forward
Switch Fabric	14Gbps/non-blocking
Throughput (packet per second)	10.42Mpps@ 64 bytes packet
Address Table	4K entries, automatic source address learning and aging
Shared Data Buffer	4Mbits
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	9K bytes
Environment & Standards
Operating Temperature	-40~75 degrees C
Storage Temperature	-40~85 degrees C
Humidity	5~90% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Xem thêm

Thông số kỹ thuật

Data sheet Planet IGT-900-2T2S

Software Fuctions	IGT-900-2T2S Industrial 2-port 10/100/1000T + 2-port 100/1000/2500X SFP Managed Media Converter
Layer 3 Functions
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing IPv6 software static routing
Layer 2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor
VLAN	IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups
MLD Snooping	IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups
Bandwidth Control	Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps
RING	Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms
Synchronization	IEEE 1588v2 PTP(Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet
Security Functions
Access Control List	IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries
Security	Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level
AAA	RADIUS client TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication
Switch Management
Basic Management Interfaces	Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app
Event Management	Remote syslog Local system log SMTP

Xem thêm thông số kỹ thuật

Bạn đang cần tư vấn về sản phẩm Converter Planet IGT-900-2T2S

Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất

Đánh giá của bạn

Điểm 5/5 trên 1 đánh giá

Xem thêm các bình luận khác Ẩn bớt

Đang tải...

Sản phẩm cùng loại

Converter Planet IGTP-802TS

Liên hệ

Software Fuctions	IGT-900-2T2S Industrial 2-port 10/100/1000T + 2-port 100/1000/2500X SFP Managed Media Converter
Layer 3 Functions
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing IPv6 software static routing
Layer 2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor
VLAN	IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups
MLD Snooping	IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups
Bandwidth Control	Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps
RING	Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms
Synchronization	IEEE 1588v2 PTP(Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet
Security Functions
Access Control List	IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries
Security	Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level
AAA	RADIUS client TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication
Switch Management
Basic Management Interfaces	Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app
Event Management	Remote syslog Local system log SMTP

Software Fuctions

IGT-900-2T2S
Industrial 2-port 10/100/1000T + 2-port 100/1000/2500X SFP Managed Media Converter

Layer 3 Functions

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing
IPv6 software static routing

Layer 2 Functions

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status

Port Mirroring

TX/RX/Both
Many-to-1 monitor

VLAN

IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups

MLD Snooping

IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps

RING

Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms

Synchronization

IEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet

Security Functions

Access Control List

IP-based ACL/MAC-based ACL
ACL based on:
   MAC Address
   IP Address
   Ethertype
   Protocol Type
   VLAN ID
   DSCP
   802.1p Priority
Up to 256 entries

Security

Port Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level

AAA

RADIUS client
TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication

Switch Management

Basic Management Interfaces

Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app

Event Management

Remote syslog
Local system log
SMTP
