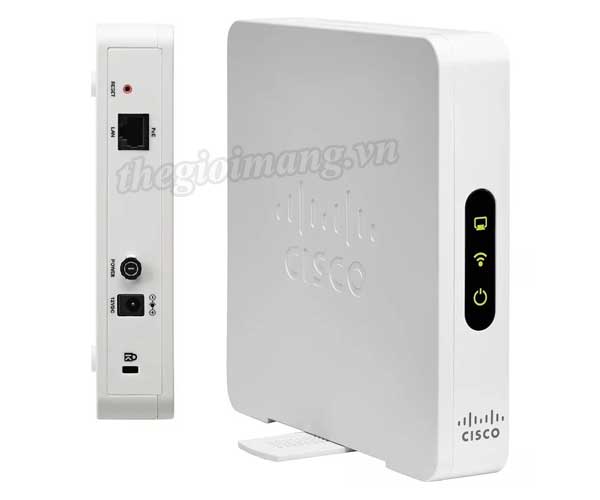

Thiết bị mạng Wifi Cisco WAP125-E-K9-EU
|
Specifications |
Description |
|
|
Standards |
IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (Security Authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
|
|
Cabling type |
Category 5e or better |
|
|
Antennas |
Internal antennas optimized for installation on desktop |
|
|
Led indicators |
1 multifunction LED |
|
|
Operating system |
Linux |
|
|
Physical Interfaces |
||
|
Ports |
10/100/1000 Ethernet, with support for 802.3af /at PoE, power port for AC adapter (included) |
|
|
Power supply |
External 12V/1A DC power jack (Energy Star 2.0 compliant with Efficiency Level 6) and 802.3af/at PoE |
|
|
Buttons |
Reset button, power on/off push button |
|
|
Lock slot |
Slot for Kensington lock |
|
|
LEDs |
1 LED |
|
|
Physical Specifications |
||
|
Physical dimensions |
4.85 x 4.85 x 1.25 in. (123 x 123 x 31 mm) |
|
|
Weight |
0.67 lb (303 g) |
|
|
Network Capabilities |
||
|
VLAN support |
Yes |
|
|
Number of VLANs |
1 management VLAN plus 8 VLANs for SSIDs |
|
|
802.1X supplicant |
Yes |
|
|
SSID-to-VLAN mapping |
Yes |
|
|
Auto-channel selection |
Yes |
|
|
Spanning tree |
Yes |
|
|
Load balancing |
Yes |
|
|
IPv6 |
Yes ● IPv6 host support
● IPv6 RADIUS, syslog, Network Time Protocol (NTP)
|
|
|
Layer 2 |
802.1Q-based VLANs, 8 active VLANs plus 1 management VLAN |
|
|
Security |
||
|
WPA/WPA2 |
Yes, including enterprise authentication |
|
|
Access control |
Yes, management Access Control List (ACL) plus MAC ACL |
|
|
Secure management |
HTTPS |
|
|
SSID broadcast |
Yes |
|
|
Rogue access point detection |
Yes |
|
|
Mounting and Physical Security |
||
|
Mounting options |
Desktop |
|
|
Physical security lock |
Kensington lock slot |
|
|
Quality of Service |
||
|
QoS |
Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS |
|
|
Performance |
||
|
Wireless throughput |
Up to 867-Mbps data rate (real-world throughput will vary) |
|
|
Recommended user support |
Up to 64 connective users, 10 active users |
|
|
Configuration |
||
|
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP, HTTPS) |
|
|
Management |
||
|
Management protocols |
Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
|
|
Remote management |
Yes |
|
|
Event logging |
Local, remote syslog, email alerts |
|
|
Network diagnostics |
Logging and packet capture |
|
|
Web firmware upgrade |
Firmware upgradable through web browser, imported or exported configuration file |
|
|
Dynamic Host Configuration Protocol (DHCP) |
DHCP client |
|
|
IPv6 host |
Yes |
|
|
HTTP redirect |
Yes |
|
Vui lòng liên hệ để có giá tốt nhất
WAP125-E-K9-EU: Wireless-AC/N Dual Radio Access Point with PoE
