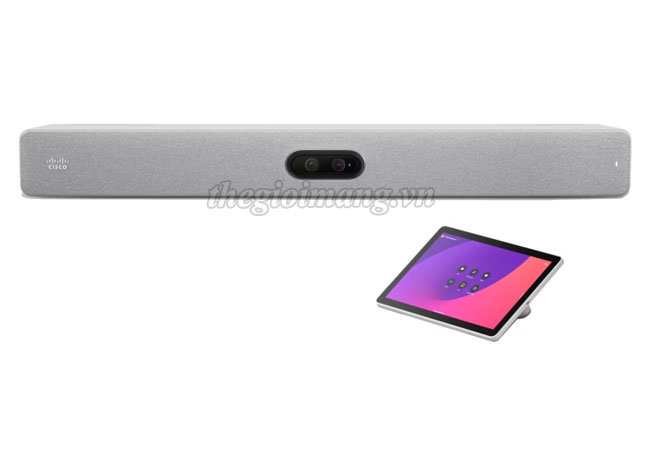

CS-BARPRO-K9 - Cisco Room Bar Pro (First Light Color) with table-stand Room Navigator
Thiết bị hội nghị truyền hình Cisco Room Bar Pro CS-BARPRO-K9
| Mã sản phẩm | CS-BARPRO-K9 |
| Software compatibility |
• RoomOS 11.5.1.x or later for native Webex meetings and video interoperability for Microsoft Teams, Zoom, and Google Meet. On-premises deployments are supported from RoomOS version 11.5.2.x • Microsoft Teams Rooms on Android (coming soon – also featuring native Webex meetings when registered in Control Hub) |
| Default components |  |
| • Room Bar Pro video bar unit (First Light or Carbon Black) • HDMI 2.0 Cable 1.5m grey • Ethernet Cable 16,4 feet / 5m grey • Ethernet cable Cisco Devices, 8m grey for Room Navigator • Mounting Kit for Cisco Room Bar Pro (for screen and wall) • Cisco Room Navigator-Table Stand, First Light (White) • Camera privacy cover for Room Bar Pro (optional) • Power cord (country-specific) |
|
| Optional hardware components | • HDMI presentation cable 8 m/26.2 ft • Multi-head 4K cable 9 m/2 m (HDMI/USB-C/MicroDP to HDMI) • Cisco USB-C active optical cable, 9 m • Cisco USB-C to USB-A cable, 4 m/13 ft • Cisco Table Microphone • Cisco Table Microphone Pro • Cisco Ceiling Microphone • Microphone extension cable • HDMI monitor cable • Cisco Room Navigator Table Stand Version • Cisco Room Navigator Wall Mount version • Cisco PTZ 4K Camera |
| Camera overview | • Dual camera system featuring a 112° wide-angle lens and a 70° tele-lens, both with 48 MP image sensors • Motorized tilt (between -2° and 20°) • 30 frames per second • 1/1.3’’ Quad Bayer • 5x digital zoom • f/2.8 fixed aperture on 112° camera and f/1.85 fixed aperture on 70° camera • 112 an 70° horizontal field of view • 94 and 55° vertical field of view • Auto framing (face detect) • Speaker tracking • Auto brightness and white balance • Fixed focus lens (112) and Auto focus (VCM) (70) • Automatic rotation of the image when the video bar unit is mounted upside down • Group view, Speaker view and Frames camera mode for individual participant framing, alongside manual camera adjustments |
| Visual indicators | • Camera On green LED indicator • Power indicator |
| Bandwidth | • Up to 20 Mbps bandwidth |
| Firewall traversal | • Cisco Expressway™ technology • H.460.18, H.460.19 firewall traversal |
| Video standards | • • H.263, H.264, H265 |
| Video inputs | • 1x HDMI input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps • 1x USB-C input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps • Consumer Electronics Control (CEC) 2.0 |
| Video outputs | • 3x HDMI outputs supporting formats up to 3840 x 2160 at 60 fps • Live video resolutions (encode and decode) up to 1920 x 1080 at 30 fps and 60 fps • Consumer Electronics Control (CEC) 2.0 • Touchscreen compatible (when used together with USB-A inputs for touch signaling) |
| Encode and decode | • Main video: 1920 x 1080 at 60 fps • Presentation channel: 3840 x 2160 at 15 fps |
| Audio standards | • G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features | • Acoustic Echo Cancellation (AEC) • Active Lip Synchronization • AI-Powered Noise Removal • Automatic Gain Control (AGC) • Beamforming Microphones • De-Reverberation • Full Duplex • Full-Band Audio • Self-Hear • Spatial Audio • Ultrasound Technology |
| Audio inputs | • 1x HDMI input • 2x analog line in for microphone input • 2x PoE supporting audio over IP. Provides connection with up to 3x Cisco Table Microphone Pro multi-directional conferencing peripherals or multiple third-party microphones via AES67 audio interoperability. Please note that depending on the number of connected microphones, the setup may require an Ethernet switch • 1x DisplayPort/USB-C input • 2x USB-A input • Bluetooth® - Not available on Non Radio Version |
| Audio outputs | • 1x analog line output • 1x DisplayPort/USB-C output • 2x USB-A outputs • Bluetooth® - Not available on Non Radio Versio |
| Microphone and loudspeaker system | • 3-channel loudspeaker system with 3 high-quality full range drivers and a separate mechanically balanced dual woofer section, supporting directional audio • Loudspeaker system frequency response 70 Hz to 22 kHz [+ 3 / -6 dB] • Max output Sound Pressure Level 97 dB • 16-element beamforming microphone array for crystal clear speech pick-up and support for speaker tracking |
| Speaker tracking | • The integrated microphone array enables sophisticated speaker tracking capability • Best overview functionality auto-detects people in the room and frames them for the best group view. When someone is talking, the system uses audio triangulation to detect the active speaker and selects the best framing to show an optimized, prominent view of the speaker • For an optimal speaker tracking experience for people joining remotely, it is recommended that the furthest in-room participant is located within up to 6 meters from the video device. Please note that the best overview (automatic group framing) camera mode is able to support an extended distance from the Room Bar Pro. |
| Content stream | • H.239 (H.323) dual stream • Binary Floor Control Protocol (BFCP) Session Initiation Protocol (SIP) dual stream • Supports resolutions up to 3840 x 2160 at 15 fps and 1920 x 1080 at 60 fps |
| Wireless sharing | • Webex app (up to 3840 x 2160 at 7.5 fps) • Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps) • Miracast (1920 x 1080 at 60 fps) – Not available on non-radio version • Apple AirPlay wireless sharing – Bonjour service discovery only on non-radio version - Screen mirroring up to 1920 x 1080 at 60 fps - Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps - Video streaming up to 3840 x 2160 at 30 fps |
| Multipoint support | • 4-way embedded SIP/H.323 conferencing capability with MultiSite option |
| MultiSite features | • Up to 15 Mbps total MultiSite bandwidth (6 Mbps in point-to-point calls) • Adaptive SIP/H.323 MultiSite: - 3-way resolution up to 1920 x 1080 at 30 fps + content up to 3840 x 2160 at 15 fps - 4-way resolution up to 1280 x 720 at 30 fps + content up to 3840 x 2160 at 15 fps - 5-way resolution up to 1280 x 720 30fps + content up to 3840 x 2160 at 15 fps • Full individual audio and video transcoding • H.323/SIP/VoIP in the same conference • Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160 at 15 fps • Best impression (automatic continuous presence layouts) • Encryption and dual stream from any site |
| Video stream layouts | • Supporting available Webex video stream layouts and meeting features, including focus, grid, prominent, stack and overlay. |
| Language support | • Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Chinese (Simplified), Traditional Chinese, Ukrainian |
| System management and call control | • For cloud deployments, the device is managed in the Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting • For on-premises deployments, the following management and call control options apply: - Native registration with Cisco Unified Communications Manager (CUCM) - requires version 12.5(1) or later with device pack for Room Bar Pro - Native registration with Expressway - TelePresence Management System 15.13.6 or later supports Cisco Room Bar Pro - Webex Service - Third-party H.323 gatekeepers and standards-based SIP proxies • In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Webex devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub |
| Protocols | • H.323 • SIP • Webex • WebRTC |
| Embedded encryption | • H.323 (proprietary Cisco version) and SIP point to point • Standards-based: H.235 v3 and Advanced Encryption Standard (AES) • Automatic key generation and exchange • Support for end-to-end encryption in Webex meetings and calls |
| IP network features | • DNS lookup for service configuration • Differentiated services (Quality of Service [QoS]) • IP-adaptive bandwidth management (including flow control) • Automatic gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 • RFC 4733 DTMF tones in SIP • Date and time support using Network Time Protocol (NTP) • Media adaptation and resilience • Uniform Resource Identifier (URI) dialing • IPv4 Dynamic Host Configuration Protocol (DHCP) • IPv6 (both static and stateless address auto-configuration) • HTTP(S) proxy support (for signaling, not media) • Inspecting Transport Layer Security (TLS) proxy supported • Cisco Discovery Protocol (CDP) • 802.1X network authentication • 802.1Q Virtual LAN • 802.1p (QoS and Class of Service [CoS]) |
| IPv6 network support | • Single call stack support for both H.323 and SIP • Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ • Support for both static and automatic IP configuration (stateless address auto configuration) |
| Security features | • Secure management using HTTPS and SSH protocols • End-to-end encryption for calls and meetings on Webex • Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM) • WPA3™ and WPA3-Enterprise with CCMP128 Wi-Fi ® security • Password protection to access administration available on Room Navigator controller • Network settings protection • Privacy cover |
| Certificate management | • The device comes with a manufacturer installed certificate (MIC) signed by Cisco’s manufacturing CA which can be used for Certificate Authority Proxy Function (CAPF) for secure onboarding to Cisco UCM • Option for users to install certificates with matching private keys for services such as IEEE802.1x, Wi-Fi, HTTPS server and SIP-TLS • Support for all regular certificate types and key sizes. The device comes with a pre-installed list of CAs (Certificate Authorities) that is vetted by Cisco and updated regularly. You can add or remove certificates from this list if desired. The CA list is used for outbound HTTPS and other TLS connections. |
| Network interfaces | • 1x Ethernet (RJ-45) 100/1000 Mbps for LAN (external network) • 1x Ethernet (RJ-45) 100/1000 Mbps PoE (802.3af) port with a power budget of 15.4W enabled for Cisco Room Navigator touch panel direct pairing • 2x Ethernet (RJ-45) 100/1000 Mbps PoE (802.3af) port with a power budget of 15.4W per port for AV over IP peripherals and Cisco/Third-party party audio equipment • Wi-Fi 6/6E*, 802.11a/b/g/n/ac/ax2.4/5/6* GHz, 2x2 Multiple-Input Multiple Output (MIMO |
| USB-C passthrough | • Ability to provide camera, microphone, and speakers over one USB-C cable to a connected computer • Extension of display (3840 x 2160 at 60 fps) (computer must support Alt-mode Display Port) • USB-C passthrough and content sharing with the same cable • USB-C support up to 3840 x 2160 at 30 fps |
| Other interfaces | • Bluetooth® and Bluetooth® Low Energy** • 2x USB 2.0 port type A for touch display, microphones, keyboards and room peripherals • 1x micro-USB port (service port) • Factory reset pinhole • Safety key slot (Kensington safety slot) |
| Sensors | • Presence sensor powered by ultrasound technology embedded into the video bar • Environmental sensors measuring temperature, humidity, air quality and other room conditions included in the Room Navigator control panel (please consult the Cisco Room Navigator datasheet for more information) |
| Power | • 100 to 240 VAC, 50/60 Hz • Average 20 W • Networked standby 12,7 W • Standby 1 W • Easily accessible power button on the top side of the video bar • Configurable for office hours mode, forcing the device into standby mode outside of the preset office hours and to half-wake mode at the beginning of the working hours, thereby enabling energy savings and extending the lifetime of the screens. |
| Mounting | • Consolidated mounting unit fit for walls and displays • Gap bar allows for a more aesthetic installation, covering the gap between the video bar and the display(s) • Video bar supports flexible mounting either above or underneath the screen(s) • When the video bar is installed underneath the display(s), the unit can be turned upside down for streamlined cable management and a cleaner setup. • The speaker grille can be easily de-attached and flipped to align with the mounting • Built-in power supply allows for simpler installation and smaller packaging, and allows for more energy efficient use |
| Operating temperature and humidity | • 0°C to 35°C (32°F to 95°F) ambient temperature • 10% to 90% Relative Humidity (RH) |
| Storage and transport temperature | • –20°C to 60°C (–4°F to 140°F) at RH 10% to 90% (non-condensing) |
| Dimensions and weight | Cisco Room Bar Pro main unit dimensions: • Width: 37.8 in. (96 cm) • Height: 4.3 in. (11 cm) • Depth: 3.5 in. (9 cm) • Weight: 9.86 lb. (4.47 kg) Packaging dimensions: Cisco Room Bar Pro with table-stand Room Navigator • Width: 44.3 in. (112.6 cm) • Height: 9.2 in. (23.3 cm) • Depth: 8.9 in. (22.7cm) • Weight: 19.6 lb. (8.9 kg) |
CS-BARPRO-K9 - Room Bar Pro (First Light Color) with table-stand Room Navigator
Data sheet Cisco Room Bar Pro CS-BARPRO-K9
