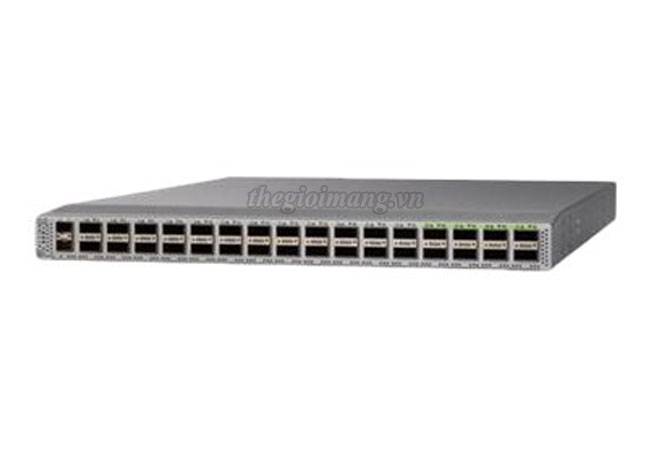

Thiết bị mạng Switch Cisco Nexus N9K-C9332C
| Mã sản phẩm | N9K-C9332C |
| Physical | ● 32-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports ● Buffer: 40MB ● System memory: 16 GB ● SSD: 128GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) ● Broadwell-DE CPU: 4 cores |
| Power and cooling | ● Power: 750W AC4, 1100W AC, 1100 DC or 1100W HVAC/HVDC5 ● Input voltage: 100 to 240V* AC or -40V to -72V DC (min-max), -48V to -60V DC (nominal) *Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V ● Hot-swappable, 5 fans with redundancy ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● RoHS compliance: Yes ● Port-side intake or port-side exhaust options ● Typical power: 296W (AC) ● Maximum power: 700W (AC) |
| Environmental | ● Physical (H x W x D): 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) ● Weight: 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) ● Humidity: 5 to 90% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m) ● RoHS compliance: Yes |
| Acoustics | ● Fan speed at 50%: 76.4 dBA ● Fan speed at 70%: 83.3 dBA ● Fan speed at 100%: 92.1 dBA |
| MTBF | ● 363,500 hours |
| Performance and scalability specifications | |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes | ● Default: 7000 ● LPM heavy*: 262,000 |
| Maximum number of IPv4 host entries | ● Default: 96,000 ● LPM heavy*: 262,000 |
| Maximum number of MAC address entries | 92,000 |
| Number of multicast routes | ● Default: 8000 ● LPM heavy*: 32,768 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | 8000 |
| Number of Access Control List (ACL) entries* | ● Per slice of the forwarding engine: ● 4000 ingress ● 2000 egress ● Maximum: 16,000 ingress ● 8000 egress ● Shipping: 14,328 ingress ● 7160 egress |
| Maximum number of VLANs | 4096 |
| Maximum number of Virtual Routing and Forwarding (VRF) instances | 1000 |
| Maximum number of links in a port channel | 32 |
| Maximum number of Equal-Cost Multipath (ECMP) paths | 64 |
| Maximum number of ECMP groups | 1024 |
| Maximum number of port channels | 64 |
| Number of active SPAN sessions | 4 |
| Maximum number of Rapid Per-VLAN Spanning Tree (RPVST) instances | 3967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Maximum number of VTEPs | 256 |
| Maximum number of static Network Address Translation (NAT) entries | 1023 |
| Maximum number of dynamic NAT entries | 1023 |
| Maximum number of static twice NAT entries | 768 |
| Maximum number of dynamic twice NAT entries | 1023 |
| Number of Queues | 8 |
N9K-C9332C - Nexus 9332C ACI Spine Switch with 32p 40/100G QSFP28, 2p 1/10G SFP
