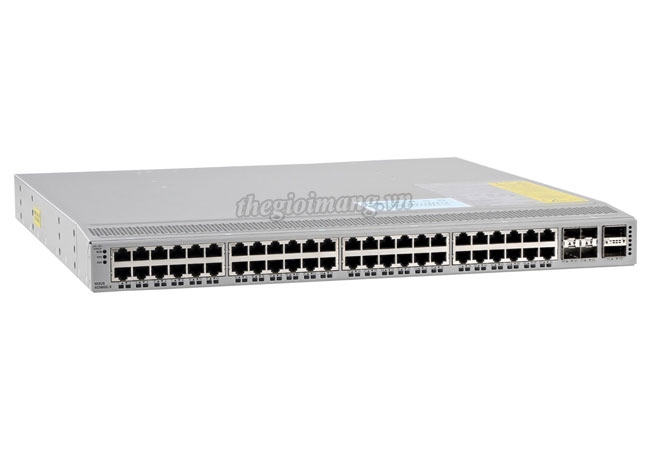

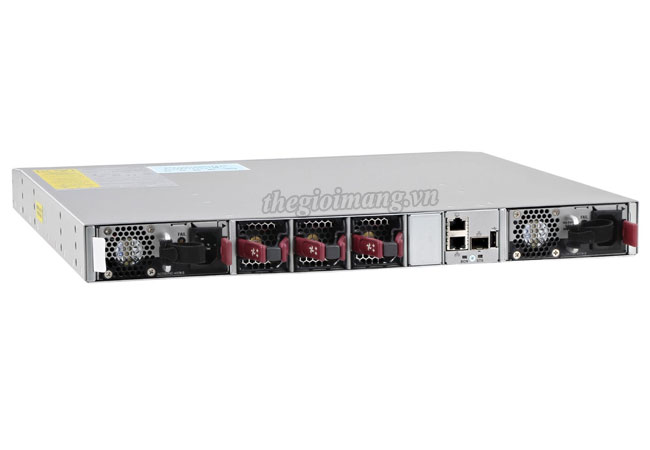

N9K-C92348GC-X - Cisco Nexus 9200 Switch :
Thiết bị chuyển mạch Switch Cisco Nexus N9K-C92348GC-X
| Model | N9K-C92348GC-X |
| Ports | 48p 100M/1G Base-T ports, 4p 1/10/25G SPF28, 2p 40/100G QSFP28 |
| Supported speeds | • 100M, 1 Gbps on Base-T ports • 1, 10, and 25 Gbps on SPF28 ports • 40 and 100G Gbps on QSFP28 ports |
| Port configuration | 48p 100M/1G Base-T ports for downlinks; 1/10/25G for the 4 SFP28 ports 40/100-Gbps for the uplinks |
| Telemetry support | Yes, SW only |
| CPU | 4 cores |
| System memory | 8 GB |
| Solid-State Disk (SSD) drive | 16GB |
| Shared system buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (PSU - up to 2) | 400W AC, 400/350W DC |
| Typical power (AC) | 150W |
| Maximum power (AC) | 245W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –40 to –72V DC (minimum and maximum) –48 to –60V DC (nominal) |
| Input voltage (HVDC) | 192 to 400 VDC, 90 to 295 VAC |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 |
| Airflow | Port-side intake and exhaust |
| MTBF (hours) | 474,571 |
| Physical (H x W x D) | 4.4 x 43.9 x 45.7 cm |
| Acoustics | 71.6 dBA at 50% fan speed, 75.7 dBA at 70% fan speed, and 81.0 dB at 100% fan speed |
| RoHS compliance | Yes |
| Performance and scalability | |
| Number of Longest Prefix Match (LPM) routes | Default: 16,000 |
| Number of IP host entries | Default: 16,000 |
| Number of MAC address entries | 97,000 |
| Number of multicast routes | Shipping: 8000 |
| Number of Internet Group Management Protocol (IGMP) snooping groups | Shipping: 8000 |
| Number of Access Control List (ACL) entries | Per slice of the forwarding engine: 3000 ingress 2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1000 |
| Maximum number of links in a port channel | 32 |
| Maximum number of ECMP paths | 64 |
| Maximum number of ECMP groups | 256 |
| Maximum number of ECMP members | 64,000 |
| Maximum number of port channels | 512 |
| Number of active SPAN sessions | 4 |
| Number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3967 |
| Number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Multiple Spanning Tree (MST) instances | 64 |
| Number of Network Address Translation (NAT) entries | 1023 |
| Environmental | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 85% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight | |
| Without power supplies or fans | 6.4 kg |
