Cisco Firepower FPR4225-ASA-K9 thiết bị tường lửa cao cấp được thiết kế để đáp ứng cho các doanh nghiệp lớn, trung tâm dữ liệu và nhà cung cấp dịch vụ

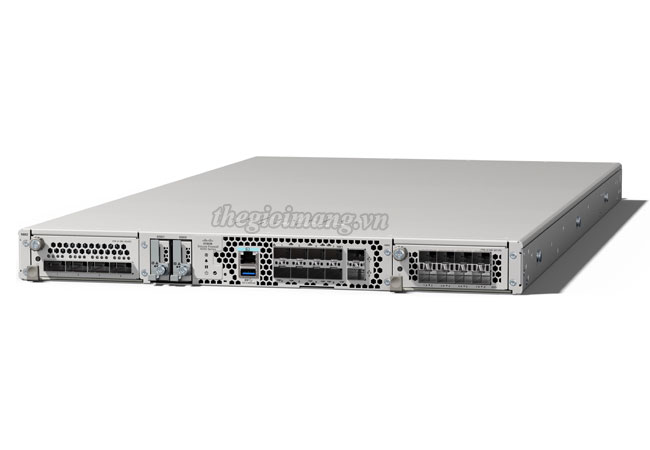

Thiết bị tường lửa Cisco Secure Firewall FPR4225-ASA-K9
| Model | FPR4225-ASA-K9 |
| Dimensions (H x W x D) | • 4.39 x 42.9 x 81.28 cm |
| Form factor (rack units) | • 1RU |
| Fixed Ports | • 8 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Integrated Network Management Ports | • 2 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Network modules | • 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 8 x 1/10 Gigabit Ethernet Small Form-Factor Pluggable (SFP+) network modules • 8 x 1/10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) network modules • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 4 x 40/100/200 Gigabit Ethernet Quad SFP28 (QSFP28) network modules • 2 x 100G Gigabit Ethernet QSFP SFP28 network modules • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps SR Fiber FTW (fail to wire) Network Module |
| Maximum number of interfaces | • Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 25 Gigabit Ethernet (SFP28) interfaces with 2 network modules • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports (SFP) with 2 network modules and fixed ports • Up to 8 x 100 Gigabit Ethernet (QSFP28) interfaces with 2 network modules |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 2.0 |
| Storage | • 1.8 TB x 2 |
| Power supplies | |
| Configuration | • Dual: 1900W for 220 AC, 1200W for 110 AC |
| AC input voltage | • 100 to 120 VAC (low line) or 200 to 240 VAC (high line) |
| AC maximum input current | • 14A, @ 100VAC or @ 200VAC |
| AC maximum Input power | • 870W |
| AC frequency | • 50/60 Hz (nominal) |
| AC efficiency | • > 90% (Platinum) |
| Redundancy | • 1+1 |
| Fans | • 3 Dual fan modules (FRU). Each module has two fans |
| Noise | • Sound Pressure: <=78 dBA (typical), <= 84 dBA (maximum) • Sound Power: <=87 dB (typical), <=92 dB (maximum) |
| Rack mountable | • Yes, mount rails included (4-post EIA-310-D rack) |
| Weight | • 4225: 43 lbs (19.5 kgs): 2 x power supplies, 2 x NMs, 3 x fan-modules; 33 lbs (15 kgs): no power supplies, no NMs, no fans |
| Temperature: operating | • 32 to 104°F (0 to 40°C) or NEBS operation (see below) |
| Temperature: nonoperating | • -40 to 149°F (-40 to 65°C) |
| Humidity: operating | • 5 to 95% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Altitude: operating | • 10,000 ft (max) |
| Altitude: nonoperating | • 40,000 ft (max) |
| ASA Performance and capabilities on Cisco Secure Firewall 4200 appliances | |
| Stateful inspection firewall throughput | • 95 Gbps |
| Stateful inspection firewall throughput (multiprotocol) | • 85 Gbps |
| Concurrent firewall connections | • 80 Million |
| New connections per second | • 1.7 Million |
| Max. IPSec VPN throughput (450 Byte UDP L2L test, ASA) | • 60 Gbps |
| Maximum VPN Peers | • 25000 |
| Security contexts (included; maximum) | • 2; 250 |
| High Availability | • Active/active and active/ standby |
| Clustering | • 8 |
| Scalability | • VPN Load Balancing |
| Centralized management | • Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager | • Web-based, local management for small-scale deployments |
Tùy chọn License cho Cisco Firepower FPR4225-ASA-K9
| L-FPR4200-ENC-K9= |
Cisco Secure Firewall 4200 Strong Encryption (3DES/AES)
|
| L-FPR4200-ASASC-10= | Cisco Secure Firewall 4200 - Add 10 Security Context Licenses |
FPR4225-ASA-K9 : Cisco Secure Firewall 4225 ASA Appliance, 1U, 2x NetMod Bays
