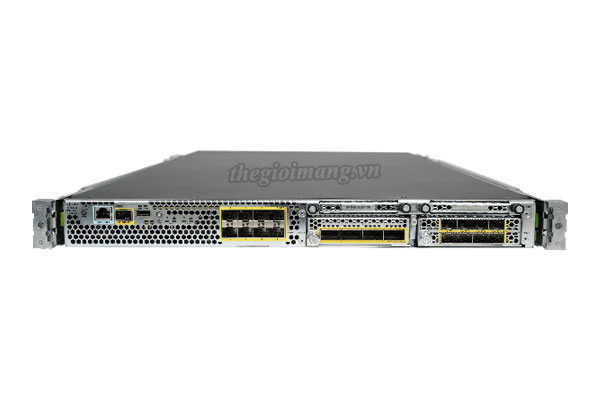

Model	FPR4125-ASA-K9
Hardware specifications
Supervisor	• Cisco Secure Firewall 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion
Network modules	• 2 x 100 Gigabit Ethernet QSFP28 Network Module • 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules ◦ 8 x 1 Gbps Fiber or 4 x 1Gbps Copper SFP Network Module • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 6-port 1 Gbps SX Fiber FTW (fail to wire) Network Module • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 2-port 40G SR FTW (fail to wire) Network Module • 2-port 100Gbps Network Module
Maximum number of interfaces	• Up to 4 x 100 Gigabit Ethernet (QSFP28) interfaces, 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports(SFP) with network modules and fixed ports
Integrated network management ports	• 1 Gigabit Ethernet SFP portSupports 1Gbps fiber or copper optical modules
Serial port	• 1 x RJ-45 console
USB	• 1 x USB 2.0
Storage	• 800 GB
*Power supplies*
Configuration	• Dual 1100W AC
AC input voltage	• 100 to 240V AC
AC maximum input current	• 13A
AC maximum output power	• 1100W
AC frequency	• 50 to 60 Hz
AC efficiency	• >92% at 50% load
DC input voltage	• -40V to -60VDC
DC maximum input current	• 27A
DC maximum output power	• 950W
DC efficiency	• >92.5% at 50% load
Redundancy	• 1+1
Fans	• 6 hot-swappable fans
Noise	• Typical 63 dBA, max is 74 dBA
Rack mountable	• Yes, mount rails included (4-post EIA-310-D rack)
Dimensions (H x W x D)	• 4.4 x 42.9 x 75.4 cm
Form factor (rack units)	• 1RU
Weight	• 17.87 kg : 2 x power supplies, 2 x NMs, 6 x fans • 14.24 kg : no power supplies, no NMs, no fans
Temperature: operating	• 0 to 40°C or NEBS operation
Temperature: nonoperating	• -40 to 65°C
Humidity: operating	• 5 to 95% noncondensing
Humidity: nonoperating	• 5 to 95% noncondensing
ASA Performance and capabilities on Cisco Secure Firewall 4100 appliances
Stateful inspection firewall throughput	• 80 Gbps
Stateful inspection firewall throughput (multiprotocol)	• 45 Gbps
Concurrent firewall connections	• 25 million
Firewall latency (UDP 64B microseconds)	• 3.5
New connections per second	• 1.1 million
IPsec VPN throughput (450B UDP L2L test)	• 19 Gbps
Maximum VPN Peers	• 20000
Security contexts (included; maximum)	• 10; 250
High availability	• Active/active or active/standby. Active/active is only available with multiple contexts configured. Please check latest Failover for High Availability Configuration Guide chapter for guidelines and best practices.
Clustering	• Up to 16 appliances. Please check latest High Availability and Scalability Configuration Guide chapter for guidelines and best practices.
Scalability	• VPN Load Balancing, Firewall Clustering
Centralized management	• Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator
Adaptive Security Device Manager	• Web-based, local management for small-scale deployments

Tùy chọn License cho Cisco Firepower FPR4125-ASA-K9

L-FPR4K-ENC-K9=	Cisco Secure Firewall 4100 Strong Encryption (3DES/AES)
L-FPR4K-ASASC-10=	Cisco Secure Firewall 4100 - Add 10 Security Context Licenses
L-FPR4K-ASA-CAR=	Cisco Secure Firewall 4100 ASA Carrier License
