Name: Cisco CGP-OLT-16T
Brand: Cisco
SKU: CGP-OLT-16T
Rating: 5 (16 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

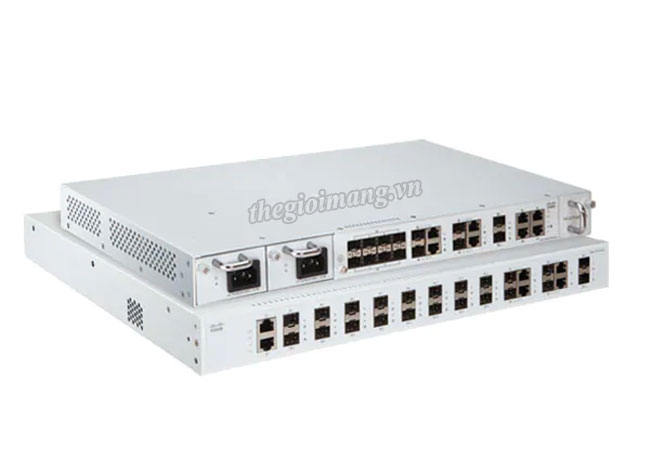

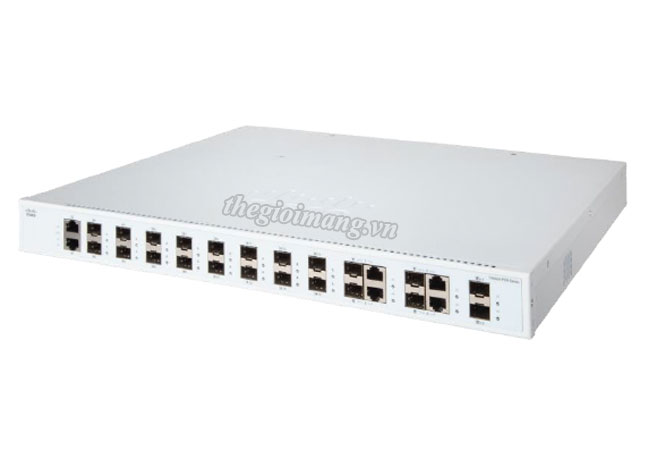

Thiết bị mạng Cisco Catalyst PON CGP-OLT-16T

Model	CGP-OLT-16T
Configurations
Downlinks total PON ports	16 GPON ports
Uplinks Configuration GE Ethernet	4 Gigabit Combo ports (Copper RJ45 + SFP optical)
Uplink configuration 10G Ethernet	2 SFP+
Management Console	RJ45 Console, OOB GE
Default primary AC power supply	PWR-OLT16-100WAC
Optional secondary power supply	PWR-OLT16-100WAC or PWR-OLT16- 100WDC
Fans	fixed
Performance and scalability
Switching Capacity	108Gbps
Forwarding Rate	95Mpps
Total number of MAC addresses	64k
Total number of IPv4 routing table	2k
Total number of ARP table	8k
VLAN IDs	4k
T-CONT of each PON port	768
Gemport of each PON port	3,072
ONT Ranging Logical Distance	60km
ONT Ranging Physical Distance	20km
Splitter Ratio	- 1:64 recommended - Up to 1:128
Network Protection Mode	Type B
ONT Authentication	- SN mode - Password mode - SN+Password mode - LOID mode - LOID+LOID Password mode
QoS scale entries	- SP, WRR, SP+WRR, cos-map, dscp-map - Queue: 8
ACL scale entries	2K
Jumbo frames	9,220 bytes
DRAM	- Switch-1GB DDR3 - PON CPU-256MB DDR3 - PON ICF0- 512MB DDR3 - PON ICF1- 512MB DDR3
Flash	32MB
Dimensions (cm)	4.4 x 44.0 x 38.0
Weight (kg)	7.6
Mean time between failures (hours)	330,000
Power Supply	PWR-OLT16-100WAC	PWR-OLT16-100WDC
Power supply rated maximum	100W
Total output BTU (note: 1000 BTU/hr = 293W)	341BTU/hr, 100W
Input-voltage range and frequency	90 to 264 VAC, 47 to 63 Hz	-36VDC~-75VDC
Input current	1.5A	4A
Output ratings	12V/8.3A, 100W
Power cord rating	10A
Physical specifications	192mm x 85mm x 40mm
Operating temperature	23° to 104°F (-5° C to +40°) @ sea level
Relative humidity	5% to 90%, non-condensing
