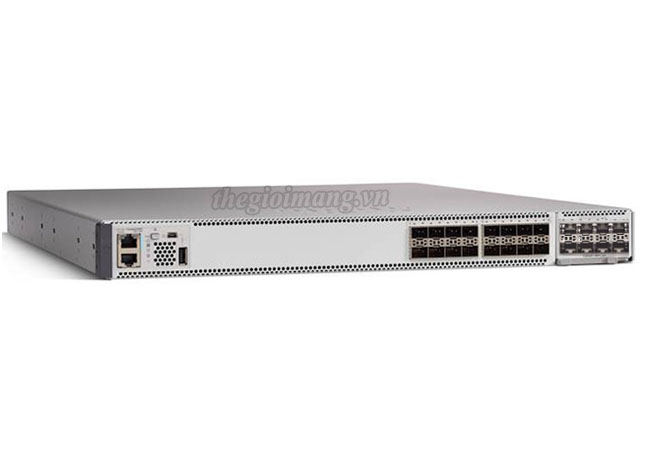

Thiết bị mạng Switch Cisco C9500-24X-A
Part Number | C9500-24X-A |
Product description | Cisco Catalyst 9500 Series 16-port 1/10 Gigabit Ethernet Switch, 8 x 10GE Network Module with SFP/SFP+ |
Performance Specifications | |
ASIC | UADP 2.0 |
Switching capacity | Up to 480 Gbps full duplex |
Forwarding rate | Up to7360 Mpps |
Total number of MAC addresses | Up to 64,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect Up to 80,000 host |
Total number of IPv6 routes | Up to 32,000 indirect Up to 40,000 host |
QoS ACL scale | Up to 18000 |
Security ACL scale | Up to 18000 |
FNF entries | Up to 512,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4094 |
PVST Instances | 300 |
STP Virtual Ports (Port VLANs) for PVST | 13000 |
STP Virtual Ports (Port VLANs) for MST | |
Total Switched Virtual Interfaces (SVIs) | 1000 |
Jumbo frame | 9198 bytes |
Power Supply Specifications | |
Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
Power Max Rating | 950 W |
Dimensions, Physical specifications, Weight, and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Rack Units (RU) | 1 RU |
Chassis with 2 power supplies and built-In fan | 23.6 lb (10.7 kg) |
Input voltage | 90 to 264 VAC |
Operating temperature | 32° to 104°F (0° to 40°C) up to altitude of 10,000 feet |
Altitude | Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C |
Storage temperature | -4° to 149°F (-20° to 65°C) |
MTBF (hours) | 315,790 |
Network Advantage Package Features
Features | Network Advantage |
Switch Fundamentals | ✔ |
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF), PBR, PIM Stub Multicast, PVLAN, VRRP, PBR, Cisco Discovery Protocol, QoS, FHS, 802.1X, CoPP, SXP, IP SLA Responder, SSO | |
Advanced Switch Capabilities and Scale | ✔ |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF | |
Network Segmentation | ✔ |
VRF, VXLAN, LISP, SGT, MPLS, mVPN | |
Automation | ✔ |
NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (on-box Python) | |
Telemetry and Visibility | ✔ |
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN | |
High Availability and Resiliency | ✔ |
NSF, ISSU, StackWise Virtual, Quad Sup RPR mode | |
IoT integration | ✔ |
PTP | |
Security | ✔ |
MACsec-256 |
