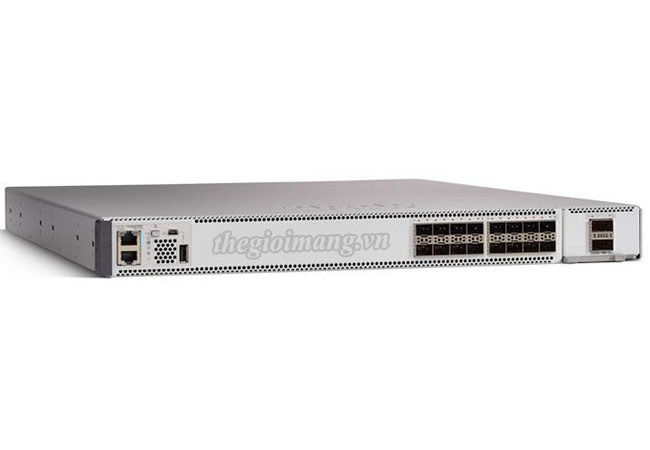

C9500-16X-E Catalyst 9500 16-port 10Gig SFP+ Switch, Network Essentials
Thiết bị mạng Switch Cisco C9500-16X-E
| Part Number | C9500-16X-E |
| Product description | Cisco Catalyst 9500 Series 16-port 1/10 Gigabit Ethernet Switch with SFP/SFP+ |
| Module matrix | C9500-NM-8X C9500-NM-2Q |
| Performance Specifications | |
| ASIC | UADP 2.0 |
| Switching capacity | Up to 480 Gbps full duplex |
| Forwarding rate | Up to7360 Mpps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect Up to 80,000 host |
| Total number of IPv6 routes | Up to 32,000 indirect Up to 40,000 host |
| QoS ACL scale | Up to 18000 |
| Security ACL scale | Up to 18000 |
| FNF entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| PVST Instances | 300 |
| STP Virtual Ports (Port VLANs) for PVST | 13000 |
| STP Virtual Ports (Port VLANs) for MST | |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frame | 9198 bytes |
| Power Supply Specifications | |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Power Max Rating | 950 W |
| Dimensions, Physical specifications, Weight, and MTBF | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack Units (RU) | 1 RU |
| Chassis with 2 power supplies and built-In fan | 23.6 lb (10.7 kg) |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) up to altitude of 10,000 feet |
| Altitude | Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| MTBF (hours) | 315,790 |
Network Essentials Package Features
| Features | Network Essentials |
| Switch Fundamentals | ✔ |
| Layer 2, Routed Access (RIP, EIGRP Stub, OSPF), PBR, PIM Stub Multicast, PVLAN, VRRP, PBR, Cisco Discovery Protocol, QoS, FHS, 802.1X, CoPP, SXP, IP SLA Responder, SSO | |
| Advanced Switch Capabilities and Scale | ✖ |
| BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF | |
| Network Segmentation | ✖ |
| VRF, VXLAN, LISP, SGT, MPLS, mVPN | |
| Automation | ✔ |
| NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (on-box Python) | |
| Telemetry and Visibility | ✔ |
| Model-driven telemetry, sampled NetFlow, SPAN, RSPAN | |
| High Availability and Resiliency | ✖ |
| NSF, ISSU, StackWise Virtual, Quad Sup RPR mode | |
| IoT integration | ✖ |
| PTP | |
| Security | ✖ |
| MACsec-256 |
