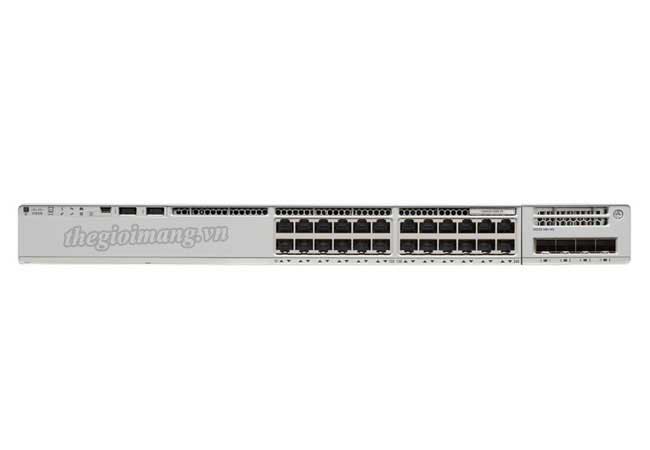

Cisco C9300-24U-E-UL Catalyst 9300 24-port UPOE, Network Essentials
| Switch Model | C9300-24U-E-UL |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 port UPOE |
| Uplink Configuration | Modular Uplinks (C9300-NM-xx) |

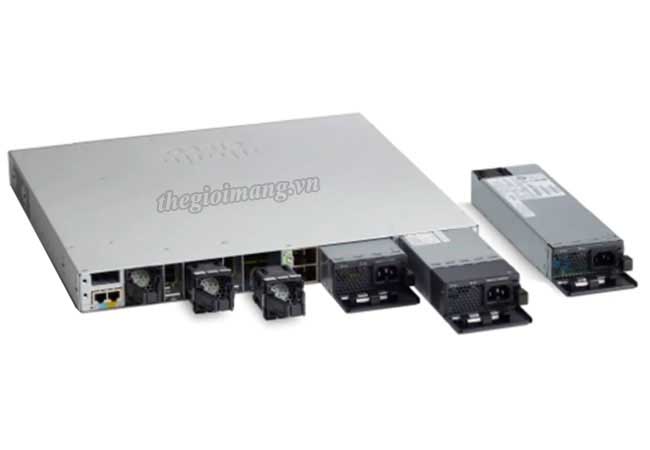

| Default AC power supply | 1100W AC (PWR-C1-1100WAC) |
| Software | Network Essentials |
| Available PoE power | 830W |
| Catalyst 9800 Embedded WLC | Yes (200APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Stacking support | StackWise®-480 |
| Stacking bandwidth support | 480 Gbps |
| Cisco StackPower | Yes |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Switching capacity | 208 Gbps |
| Forwarding rate | 154.76 Mpps |
| Dimensions Chassis only (H x W x D) | 4.4 x 44.5 x 40.9 cm |
| Weight | 7.54 Kg |
Các tùy chọn (Options) : Module network, Stacking cables và DNA licenses
| Network module cho Cisco Catalyst C9300 | |
| Network module | Product description |
| C9300-NM-4G | Catalyst 9300 Series 4x 1G Network Module |
| C9300-NM-4M | Catalyst 9300 Series 4x Multigigabit Network Module |
| C9300-NM-8X | Catalyst 9300 Series 8x 10G Network Module |
| C9300-NM-2Q | Catalyst 9300 Series 2x 40G Network Module |
| C9300-NM-2Y | Catalyst 9300 Series 2x 25G Network Module |
| NM-BLANK-T1 | Cisco Catalyst Type 1 Network Module Blank |
| Stacking and StackPower cables cho Cisco Catalyst C9300 | |
| Product number | Product description |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 SKUs) |
| CAB-SPWR-30CM | Catalyst Stack Power Cable 30 CM |
| CAB-SPWR-150CM | Catalyst Stack Power Cable 150 CM |
| DNA licenses cho Cisco Catalyst C9300 | |
| Product number | Product description |
| C9300-DNA-E-24-3, -5, -7 | C9300 24 port Cisco DNA Essentials; 3, 5 and 7 year term |
| C9300-DNA-A-24-3, -5, -7 | C9300 24 port Cisco DNA Advantage; 3, 5 and 7 year term |
| C9300-DNA-P-24-3, -5, -7 | C9300 24 port Cisco DNA Premier; 3, 5 and 7 year term |
| C9300-DNA-E-A-3, -5, -7 | C9300 Cisco DNA Essentials to Advantage upgrade; 3, 5, 7 year term |
C9300-24U-E-UL : Catalyst 9300 24-port UPOE, Network Essentials. Compatible with UL1069 Standard
