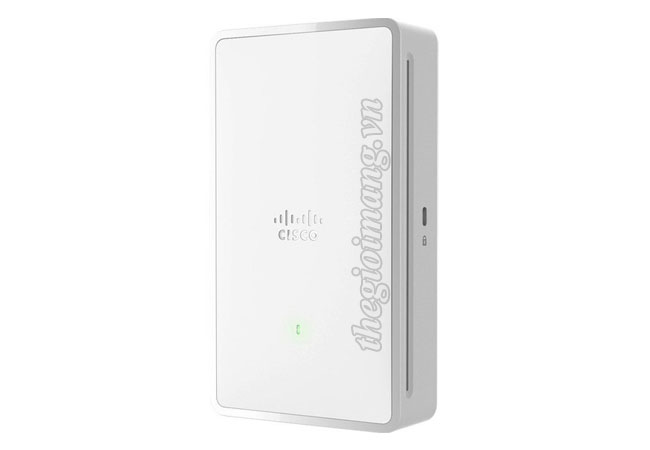

Thiết bị Wifi Cisco Catalyst 9105AX Access Point Wall Plate, with internal antennas
Part Number | C9105AXW-S | |
Software | Catalyst 9105AXW ● Cisco Unified Wireless Network Software Release 8.10MR3 or later ● Cisco IOS® XE Software Release 17.3.1 or later |
|
Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
|
802.11n version 2.0 (and related) capabilities | ● 2x2 MIMO with two spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g ● 20- and 40-MHz channels ● PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
|
802.11ac | ● 2x2 downlink MU-MIMO with two spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80- MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
|
802.11ax | ● 2x2 uplink/downlink MU-MIMO with two spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80- channels ● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
|
Integrated antenna | Catalyst 9105AXW ● 2.4 GHz: Peak gain 3 dBi, internal antenna ● 5 GHz: Peak gain 5 dBi, internal antenna |
|

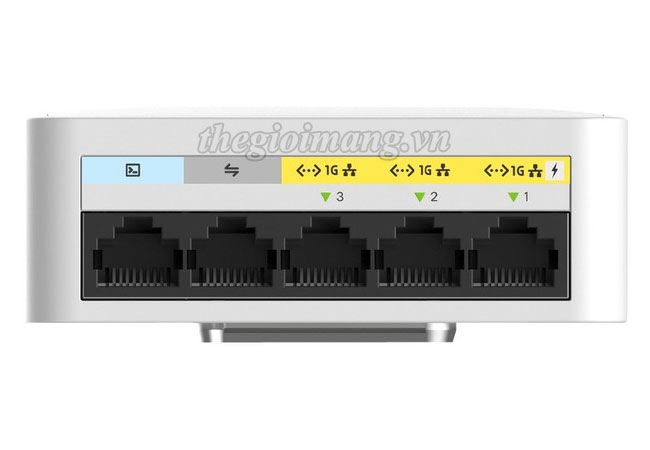

Interfaces | Catalyst 9105AXW ● 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface ● 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) ● Management console port (RJ-45) ● USB 2.0 at 4.5W ● Passthru Port |
|
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors | |
Dimensions (W x L x H) |
● Access point (without mounting brackets): ◦ C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) |
|
Weight | Cisco Catalyst 9105AXW ● 0.8 lb. (373.2g) |
|
Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
|
Environmental | Cisco Catalyst 9105AXW ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft (3000 m) Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2x2 to 1x1 on the 2.4 GHz radio and the USB interface and LAN1 PSE will be disabled. |
|
Available transmit power settings (Max/Min) | ● 2.4 GHz ◦ 20 dBm (100 mW) ◦ -7 dBm (0.2 mW) |
● 5 GHz ◦ 20 dBm (100 mW) ◦ -7 dBm (0.2 mW) |
C9105AXW-S : Cisco Catalyst 9105AX Series-Wallplate
