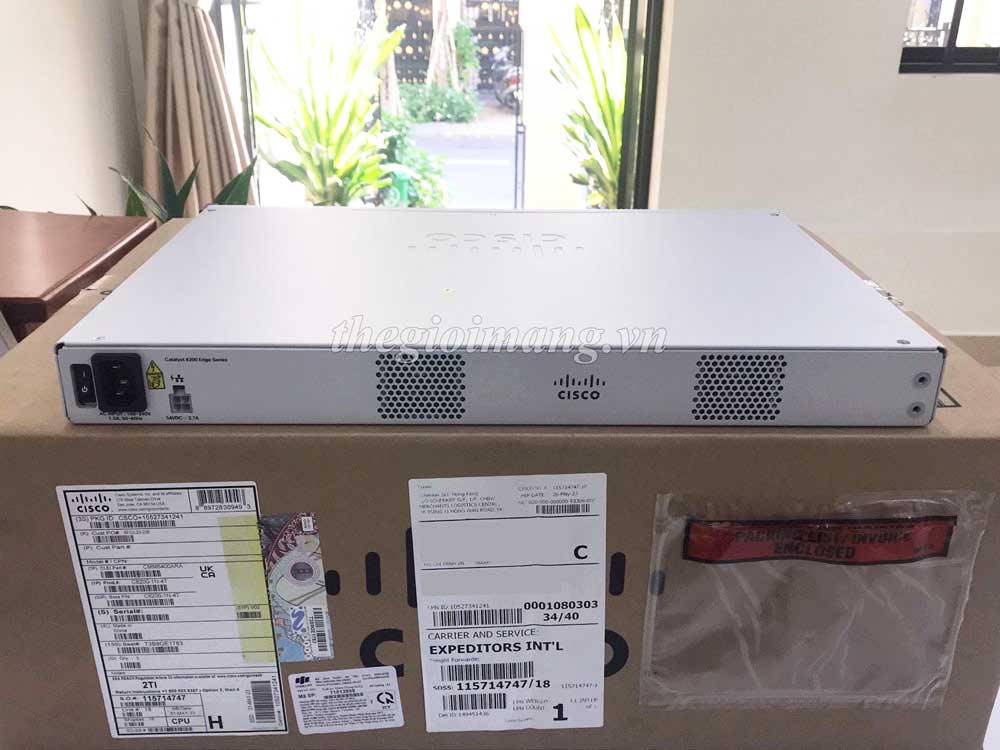

Bộ định tuyến Router Cisco C8200-1N-4T
Thiết bị định tuyến Router Cisco C8200-1N-4T
| Model | C8200-1N-4T |
| Platform specifications | |
| 1G port density | 4 |
| Slots | 1 NIM, 1 PIM |
| Memory (DRAM) default | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| Platform performance | |
| Cisco controller mode (SD-WAN) performance specifications | |
| SD-WAN IPsec throughput (1400 bytes, clear text) | Up to 1 Gbps |
| SD-WAN IPsec throughput (IMIX,* clear text**) | 900 Mbps |
| SD-WAN overlay tunnels scale | 2500 |
| Cisco autonomous mode (non SD-WAN) performance specifications | |
| IPv4 forwarding throughput (1400 bytes) | Up to 3.8 Gbps |
| IPsec throughput (1400 bytes, clear text**) | Up to 1 Gbps |
| Number of IPsec static virtual tunnel interface (SVTI) tunnels | 2500 |
| Cisco autonomous mode (non SD-WAN) system scalability | |
| Number of access control lists (ACLs) per system | 4000 |
| Number of IPv4 access control entries (ACEs) per system | 72000 |
| Number of IPv4 routes | 1.6M with default 8 GB, up to 4M with 32 GB |
| Number of IPv6 routes | 1.5M with default 8 GB, up to 4M with 32 GB |
| Number of queues | 16000 |
| Number of Network Address Translation (NAT) sessions | 1.2M with default 8 GB, up to 2M with 32 GB |
| Number of firewall sessions | 512000 |
| Number of Virtual Route Forwarding (VRF) instances | 4000 |
| Mechanical specifications | |
| Dimensions (H x W x D) | 1.73 x 17.25 x 11.8 in. (4.39 x 43.81 x 29.97 cm) |
| Rack Units (RU) | 1RU |
| Chassis weight | 10 lb (4.54 kg) |
| Input voltage | AC: 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -40° to 150°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 85% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) | 692,577 hours |
C8200-1N-4T : Cisco Catalyst C8200-1N-4T Router
