Switch Cisco C1000-8P-2G-L Catalyst 1000 48 port GE, Full PoE+, 2x1G Combo SFP/RJ-45
Switch C1000-8P-2G-L có 8-port GE, cấp nguồn PoE+ (tối đa 67W) và 2x1G Combo SFP/RJ-45 uplinks tốc độ cao. Đây là thiết bị chuyển mạch lớp 2 đơn giản, linh hoạt và an toàn, lý tưởng cho việc triển khai Internet of Things (IoT).

Cisco C1000-8P-2G-L là thiết bị chuyển mạch cổng Gigabit Ethernet được thiết kế cho các doanh nghiệp vừa, nhỏ và văn phòng chi nhánh. Hoạt động trên Phần mềm Cisco IOS®, quản lý đơn giản thông qua Giao diện dòng lệnh (CLI) hoặc giao diện người dùng Web UI.
● 8 ports Gigabit Ethernet
● Cấp nguồn PoE+ tối đa lên tới 67W
● 2 ports Combo SFP/RJ-45 uplinks
● CPU 800MHz, DRAM 512MB, Flash 256MB
● Quản lý bằng CLI hoặc Web UI
● Giám sát mạng thông qua luồng được lấy mẫu (sFlow)
● Bảo mật với hỗ trợ 802.1X cho các thiết bị được kết nối với SPAN và BPDU Guard

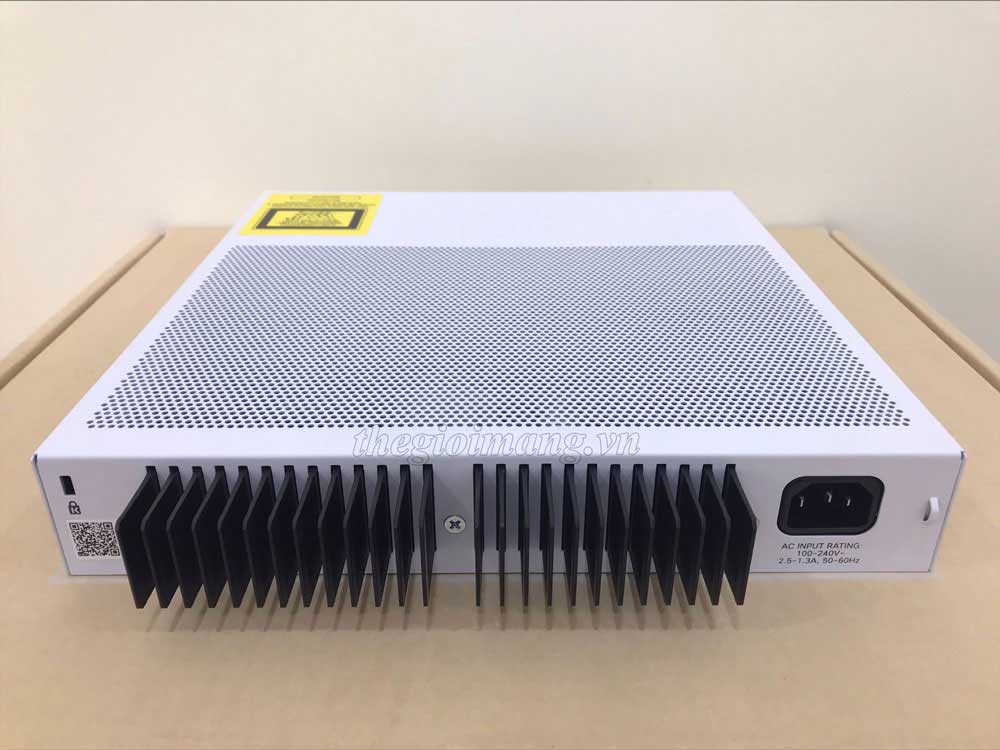

● Thiết kế không quạt nhỏ gọn với độ sâu dưới 33cm
● Truy cập thiết bị qua Bluetooth, SNMP hoặc Console RJ-45
● Độ tin cậy với MTBF cao hơn và hỗ trợ bảo hành trọn đời có giới hạn (E-LLW) nâng cao
Dòng Cisco C1000-8P-2G-L có thể thay thế cho các dòng Catalyst Switch Cisco trước đó như : WS-C2960L-8PS-LL, WS-C2960L-SM-8PS
Xem thêm
Rút gọn
| Model | C1000-8P-2G-L |
| Hardware | |
| Interface | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | Yes |
| Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 |
| Weight (kg) | 1.55 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate (64 byte L3 packets) | 14.88 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.22A to 0.27A |
| Power rating (maximum consumption) | 0.11 kVA |
| PoE Support | PoE+ 67W |
| Total PoE Ports | 30W for any 2 ports or 15W for any 4 ports |
Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất
Cisco C1000-8P-2G-L
| Model | C1000-8P-2G-L |
| Hardware | |
| Interface | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | Yes |
| Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 |
| Weight (kg) | 1.55 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate (64 byte L3 packets) | 14.88 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.22A to 0.27A |
| Power rating (maximum consumption) | 0.11 kVA |
| PoE Support | PoE+ 67W |
| Total PoE Ports | 30W for any 2 ports or 15W for any 4 ports |
| Model | C1000-8P-2G-L |
| Hardware | |
| Interface | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | Yes |
| Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 |
| Weight (kg) | 1.55 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate (64 byte L3 packets) | 14.88 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.22A to 0.27A |
| Power rating (maximum consumption) | 0.11 kVA |
| PoE Support | PoE+ 67W |
| Total PoE Ports | 30W for any 2 ports or 15W for any 4 ports |
Thiết bị C1000-8P-2G-L có cổng uplink nào không? Chế độ bảo hành thế nào vậy?
Có — C1000-8P-2G-L gồm 2 cổng uplink dạng combo SFP/RJ-45 cho phép chọn sử dụng SFP hoặc RJ-45 để kết nối lên thiết bị trung tâm. Thế Giới Mạng bảo hành 12 tháng cho thiết bị C1000-8P-2G-L ạ.
Thiết bị C1000-8P-2G-L có bao nhiêu cổng mạng và tính năng PoE như thế nào?
C1000-8P-2G-L có 8 cổng Ethernet Gigabit (10/100/1000) hỗ trợ PoE+, với tổng ngân sách PoE khoảng 67 W để cấp nguồn cho các thiết bị như điện thoại IP, camera, AP
Cisco C1000-8P-2G-L là loại thiết bị gì?
C1000-8P-2G-L là một switch chuyển mạch mạng quản lý lớp 2 (Layer-2) thuộc dòng Cisco Catalyst 1000, dùng cho doanh nghiệp nhỏ và văn phòng chi nhánh, hỗ trợ cả quản lý qua CLI và giao diện Web UI.
