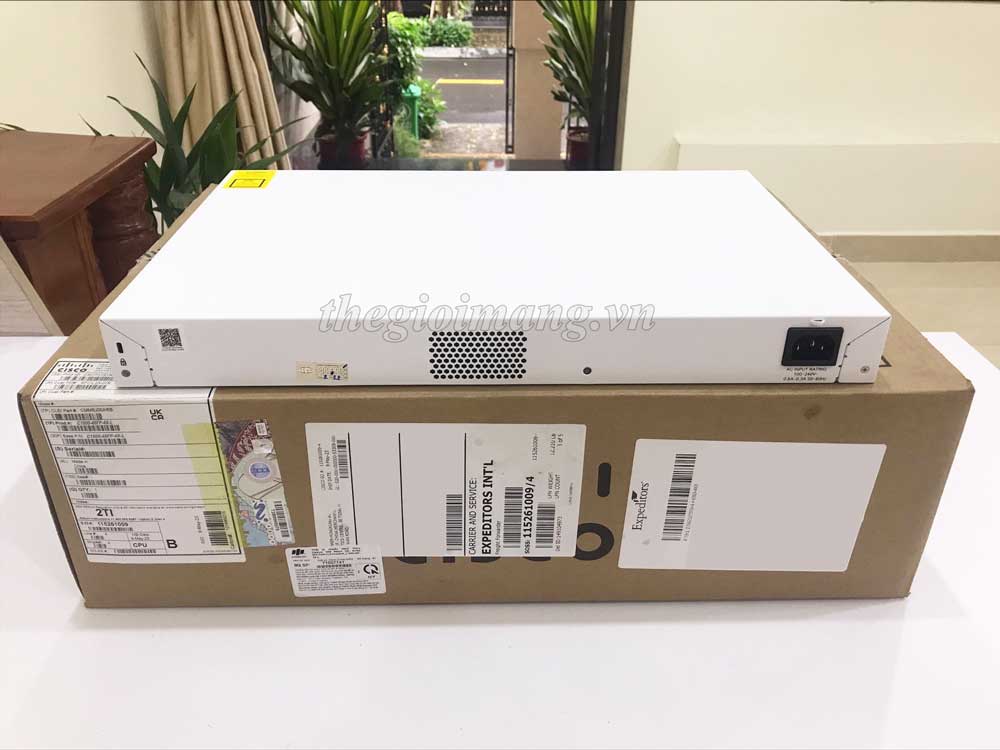

Switch Cisco C1000-48FP-4X-L Catalyst 1000 48 port GE, Full PoE+, 4x10G SFP+
Switch C1000-48FP-4X-L có 48-port GE, cấp nguồn PoE+ (tối đa 740W) và 4x10G SFP+ uplinks tốc độ cao. Đây là thiết bị chuyển mạch lớp 2 đơn giản, linh hoạt và an toàn, lý tưởng cho việc triển khai Internet of Things (IoT).

Cisco C1000-48FP-4X-L là thiết bị chuyển mạch cổng Gigabit Ethernet được thiết kế cho các doanh nghiệp vừa, nhỏ và văn phòng chi nhánh. Hoạt động trên Phần mềm Cisco IOS®, quản lý đơn giản thông qua Giao diện dòng lệnh (CLI) hoặc giao diện người dùng Web UI.
● 48 ports Gigabit Ethernet
● Cấp nguồn PoE+ tối đa lên tới 740W
● 4 ports SFP+ uplinks
● CPU 800MHz, DRAM 512MB, Flash 256MB
● Quản lý bằng CLI hoặc Web UI
● Giám sát mạng thông qua luồng được lấy mẫu (sFlow)
● Bảo mật với hỗ trợ 802.1X cho các thiết bị được kết nối với SPAN và BPDU Guard
● Truy cập thiết bị qua Bluetooth, SNMP hoặc Console RJ-45
● Độ tin cậy với MTBF cao hơn và hỗ trợ bảo hành trọn đời có giới hạn (E-LLW) nâng cao
Dòng Cisco C1000-48FP-4X-L có thể thay thế cho các dòng Catalyst Switch Cisco trước đó như : WS-C2960L-48PQ-LL, WS-C2960L-SM-48PQ
Xem thêm
Rút gọn
| Model | C1000-48FP-4X-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176 Gbps |
| Forwarding rate (64 byte L3 packets) | 77.38 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất
Cisco C1000-48FP-4X-L
| Model | C1000-48FP-4X-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176 Gbps |
| Forwarding rate (64 byte L3 packets) | 77.38 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
| Model | C1000-48FP-4X-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176 Gbps |
| Forwarding rate (64 byte L3 packets) | 77.38 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
Cisco C1000-48FP-4X-L có những tính năng quản lý và bảo mật nào?
C1000-48FP-4X-L hỗ trợ các tính năng bảo mật và quản lý mạng như 802.1X, ACL, DHCP Snooping, SPAN, BPDU Guard, SNMP, SSH và QoS, cùng quản lý qua web, CLI, SNMP và Cisco Business Dashboard.
Hiệu năng và thông số chính của C1000-48FP-4X-L ra sao?
C1000-48FP-4X-L có băng thông chuyển mạch 176 Gbps và tốc độ chuyển tiếp khoảng 130.9 Mpps, hỗ trợ bảng địa chỉ MAC tới 16 000 entry và VLAN lên đến 256 VLAN hoạt động (VLAN ID tối đa 4094).
C1000-48FP-4X-L có bao nhiêu cổng và loại nào? Giá thế nào ạ
C1000-48FP-4X-L có 48 cổng RJ-45 Gigabit Ethernet hỗ trợ PoE+ (IEEE 802.3af/at) và 4 cổng uplink 10G SFP+ để kết nối lên tầng mạng cao hơn. Bạn vui lòng liên hệ số hotline: 091 799 3131 để nhận báo giá nha.
