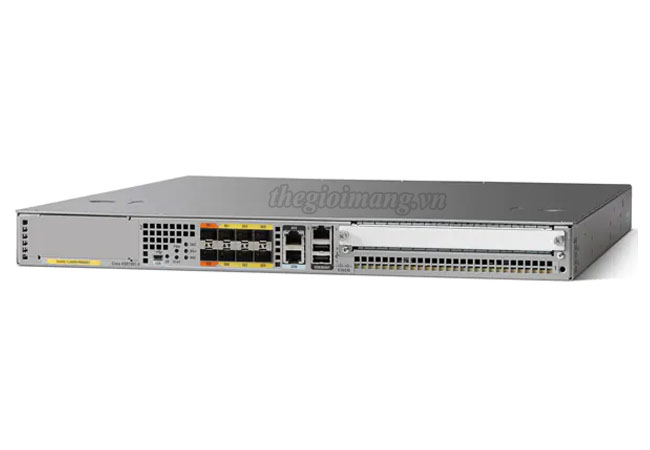

Bộ định tuyến Router Cisco ASR1001-X
|
Product Code |
Cisco ASR1001-X= |
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. |
Height: 1.71 in. (43.43 mm) Weight: 25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated |
|
Default memory |
8-GB DRAM shared across route processor, ESP, and SIP |
|
Shared port adapters |
1 single-height SPA slot |
|
Ethernet port adapters |
N/A |
|
Cisco ASR 1000 Series ESP |
Integrated in chassis |
|
Route processor |
Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
|
Redundancy |
Software: Yes |
|
Built-in Gigabit Ethernet ports |
6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) |
|
Built-in 10 Gigabit Ethernet port |
2 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports |
|
Network interface module |
Yes |
|
Processor Module |
|
|
ESP support |
Cisco ASR 1000 Series 2.5-Gbps ESP (default) |
|
ESP bandwidth |
2.5 to 20 Gbps |
|
ESP memory |
Share the same control memory on route processor |
|
SIPs and Ethernet line cards |
Integrated in chassis; not upgradable |
|
Embedded hardware-based encryption |
Yes: Up to 8-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 3.12.0 |
|
Rack-mounting |
Yes: 19-inch |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Yes: Dual power supplies by default; option of either AC or DC power supply |
|
Power input |
Worldwide ranging AC input range (85 to 264 VAC) |
|
Power consumption |
● Maximum (DC): 242W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
32 to 104°F (0 to 40°C) |
|
Operating temperature (short-term) |
32 to 122°F (0 to 50°C) |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Operating humidity (short-term) |
5 to 90% |
|
Storage temperature |
-40 to 150°F (-40 to 70°C) |
|
Storage humidity (relative humidity) |
5 to 95% |
|
Operating altitude |
-500 to 10,000 feet |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 (in progress) |
ASR1001-X=: Cisco ASR 1001-X System, Crypto, 6 built-in GE, Dual P/S, Spare
Data sheet Cisco ASR 1000 Series Aggregation Services Router
