Cisco AIR-AP1815W-S-K9C Aironet 1815W 802.11ac Wave 2 Access Point with Mobility Express, Reg Domain S ● 1 x 10/100/1000BASE-T autosensing (RJ-45), ● Power over Ethernet (PoE) ● Management console port (4-pin connector) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị Wifi Cisco AIR-AP1815W-S-K9C

Part Number	AIR-AP1815W-S-K9C
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization and accounting (AAA) ● 802.11r ● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later ● Cisco Mobility Express
Supported WLAN COntrollers	● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, ● Cisco Mobility Express
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2x2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support
Ethernet ports	● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future Availability)	● Integrated Bluetooth 4.1 (including BLE) radio ● Maximum transmit power: 4 dBm ● Antenna gain: 2 dBi
Integrated antennas	● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 3 dBi
Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ● Management console port (4-pin connector) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af ● One passive pass-through port RJ-45 (back to bottom)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm)
Weight	● Access point without mounting bracket or any other accessories: 10 oz (280 g)
Environmental	● Operating ◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 9843 ft (3,000 m) @ 40°C ● Non-operating (storage and transportation) ◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 15,000 ft (4,500 m) @ 25°C
System	● 1 GB DRAM ● 256 MB flash ● 710 MHz quad-core
Powering options	● 802.3af/at Ethernet switch ● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	● 8.5W (maximum, without PoE out)
Physical security	● Torx security screw, included with the access point ● Kensington lock slot to lock device to mounting bracket.

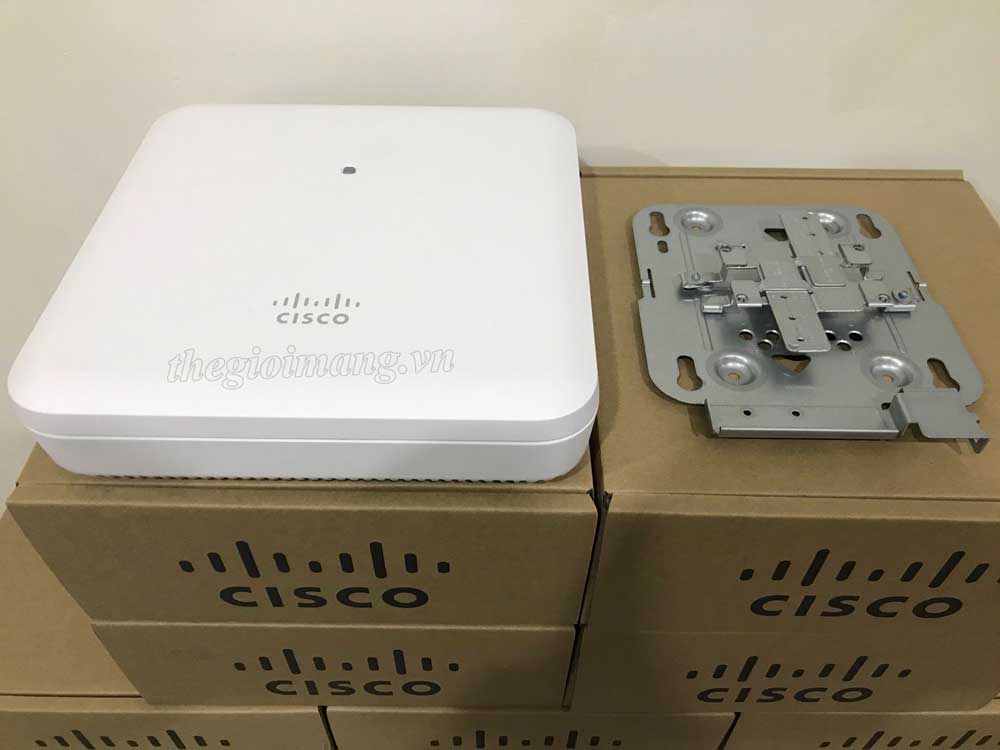

Mounting	● Included with the access point: mounting bracket AIR-AP-BRACKET-W3
Accessories	● Mounting bracket: AIR-AP-BRACKET-W3= (available as spare) ● Spacer kit: AIR-AP1815W-KIT= (sold separately), includes spacer and RJ-45 jumper cable ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 20 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
