Check Point Quantum Spark 1570WDSL (CPAP-SG1570WDSL-SNBT-LA)

CPAP-SG1570WDSL-SNBT-LA - Firewall Check Point Quantum Spark 1570WDSL Security Gateway :

  • 8 x 1GbE LAN switch
  • 1 x 1GbE copper/fiber DMZ port
  • 1 x 1GbE WAN port
  • 802.11n/ac
  • USB 3.0 port
  • xDSL port
  • USB-C console port
  • 12V power connector
  • Threat Prevention : 500 Mbps
  • Next Generation Firewall : 970 Mbps
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall Check Point Quantum Spark 1570WDSL Security Gateway (CPAP-SG1570WDSL-SNBT-LA)

Model Quantum Spark 1570WDSL (CPAP-SG1570WDSL-SNBT-LA)
Enterprise Testing Conditions
Threat Prevention with Smart Accel 650 Mbps
Threat Prevention 500 Mbps
Next Generation Firewall 970 Mbps
IPS Throughput 1,050 Mbps
Firewall Throughput 2,800 Mbps
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets 6,400 Mbps
VPN AES-128 Throughput 1,950 Mbps
Connections per Second 15,750
Concurrent Connections 500,000
Software
Security Firewall, VPN, User Aware, QoS, Application Control, URLF, IPS, Anti-Bot, Antivirus, Anti-Spam, sandboxing
Unicast, Multicast Routing and Clustering OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP, ClusterXL High Availability
IPv6 local network and internet connections, dual stack tunneling IPv4 over IPv6 networks, prefix delegation
Mobile Access License (Users) 200 remote SNX or Mobile VPN client users

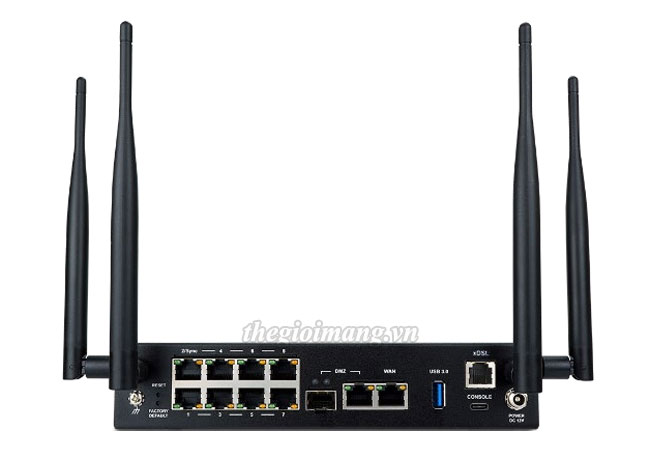

Hardware
WAN Port 1x 10/100/1000Base-T RJ-45 port
DMZ Port 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)
LAN Ports 8x 10/100/1000Base-T RJ-45 ports
xDSL Port 1 x RJ11 ADSL2 (Annex A or B) and VDSL2 (up to 17a) port
Wi-Fi 802.11 b/g/n and 802.11 n/ac wave II MIMO 4x4
Radio Band (association rate) Two radio bands concurrent: 2.4GHz (max 450 Mbps) and 5GHz (max 1,700 Mbps)
xDSL VDSL: G.993.1 (VDSL), G.993.2 (VDSL2), G.993.5 (VDSL2 Vectoring), G.998.4 (G.INP) VDSL2 profiles: 8a, 8b, 8c, 8d, 12a,
12b, and 17a ADSL: Annex A (POTS), Annex B (ISDN), G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M
(ADSL2/2+) ,Annex L Reach-extended (ADSL2) Dying Gasp, DSL Forum TR-067, TR-100, TR-114 Conformity
Console, USB ports Console: 1x USB-C, USB: 1x USB 3.0
SD Card Slot Micro-SD slot
Dimensions
Dimensions (W x D x H) Desktop form factor: 210 x 170 x 42 mm
Weight 0.87 kg
Environment
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input 100 – 240VAC, 50 – 60 Hz
Power Supply Rating 12V/5A 60W power adapter
Power Consumption (Max) 37.26W
Heat Dissipation (BTU/hr) 127.14
Certifications
Safety CB 62368-1, CE, CE 62368-1, UL 62638-1
Emissions FCC IC Class B, VCCI, AS/NZS RCM EMC
Environment RoHS, REACH, WEEE

Next Generation Threat Prevention & SandBlast Package

CPSB-SNBT-1570WDSL-1Y Next Generation Threat Prevention and Sandblast for additional 1 year for 1570WDSL Base Appliance
CPSB-SNBT-1570WDSL-2Y Next Generation Threat Prevention and Sandblast for additional 2 years for 1570WDSL Base Appliance
CPSB-SNBT-1570WDSL-3Y Next Generation Threat Prevention and Sandblast for additional 3 year for 1570WDSL Base Appliance

Next Generation Threat Prevention Package

CPSB-NGTP-1570WDSL-1Y Next Generation Threat Prevention for additional 1 year for 1570WDSL Base Appliance
CPSB-NGTP-1570WDSL-2Y Next Generation Threat Prevention for additional 2 year for 1570WDSL Base Appliance
CPSB-NGTP-1570WDSL-3Y Next Generation Threat Prevention for additional 3 year for 1570WDSL Base Appliance

Next Generation Firewall Package

CPSB-NGFW-1570WDSL-1Y Next Generation Firewall Package for additional 1 year for 1570WDSL Base Appliance
CPSB-NGFW-1570WDSL-2Y Next Generation Firewall Package for additional 2 year for 1570WDSL Base Appliance
CPSB-NGFW-1570WDSL-3Y Next Generation Firewall Package for additional 3 year for 1570WDSL Base Appliance

CPAP-SG1570WDSL-SNBT-LA : 1570WDSL Base Appliance with SandBlast subscription package for 1 year. with 802.11ac WiFi

Data sheet Check Point Quantum Spark 1500 Security Gateways
