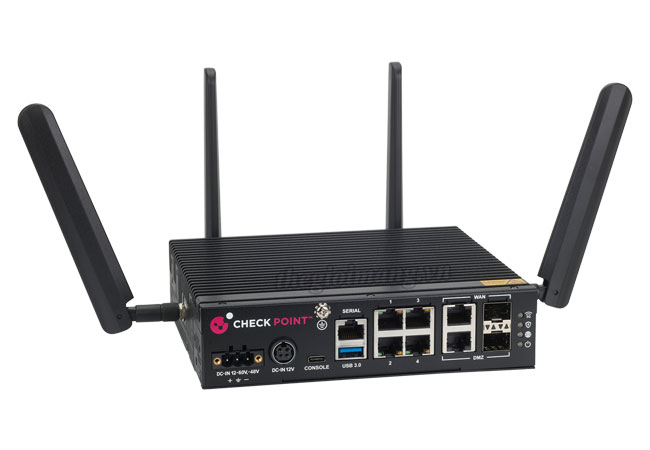

CPAP-SG1595R5G-FW-PROMO - Firewall Check Point Quantum Rugged 1595R5G Security Gateway :
Thiết bị tường lửa Firewall Check Point Quantum Rugged 1595R5G Security Gateway (CPAP-SG1595R5G-FW-PROMO)
| Model | 1595R5G (CPAP-SG1595R5G-FW-PROMO) |
| Enterprise Testing Conditions | |
| Threat Prevention (Mbps) | 400 |
| Next Generation Firewall (Mbps) | 700 |
| IPS Throughput (Mbps) | 770 |
| Firewall Throughput (Mbps) | 1,900 |
| RFC 3511, 2544, 2647, 1242 Performance (LAB) | |
| Firewall 1518 Byte UDP Packets (Mbps) | 4,000 |
| VPN AES-128 Throughput (Mbps) | 1,100 |
| Connections per Second | 13,500 |
| Concurrent Connections | 1,000,000 |
| Software | |
| Security | Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus and SandBlast Threat Emulation (sandboxing) |
| Unicast, Multicast Routing and Clustering | OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP, ClusterXL High Availability |
| IPv6 | local network and internet connections, dual stack tunneling IPv4 over IPv6 networks, prefix delegation |
| Mobile Access License (Users) | 200 remote SNX or Mobile VPN client users |
| Protocols | Over 70 protocols, including the most popular in the industry: Modbus, Bacnet, CIP, S7, IEC-104, DNP3 and many more |
| Hardware | |
| WAN Port | 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included) |
| DMZ Port | 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included) |
| LAN Ports | 4x 10/100/1000Base-T RJ-45 ports |
| Wireless (optional) | 5G Embedded modem, sub-6 GHz, max 4.5 Gbps downlink and 660 Mbps uplink speed |
| SIM (optional) | Dual SIM (Nano and Micro) |
| Console Port | 1x USB-C and RJ45 |
| USB Port | 1x USB 3.0 |
| SD Card Slot | Micro-SD slot |
| Bypass NIC | Yes |
| Serial Port | 1 x RJ45 female connector, supports RS232 serial protocols |
| Dimensions | |
| Enclosure | Desktop, wall mount, DIN rail (bottom and back mount options) |
| Dimensions (W x D x H) | 150 x 170 x 42 mm, 5.9 x 6.7 x 1.7 in. |
| Weight | Wired 1.21kg (2.66lbs), 5G 1.36kg (2.99lbs) |
| Environment | |
| Operating | -40ºC ~ 75ºC |
| Storage | -45ºC ~ 85ºC, 5~95%, non-condensing |
| Power Requirements | |
| Power Redundancy | Supported |
| Power Adapter AC Input | 110 – 240VAC, 50 – 60 Hz, AC socket IEC 320-C14 Type |
| Power Adapter Options | 12V/10A 120W industrial grade (-40º ~ 70ºC, -40º ~ 158ºF) power adapterNote: 1595R power adapter sold separately |
| DC Input (3-pin terminal) | Nominal 12 to 60VDC, -48VDC, Maximum Range 10.2VDC to 72VDC |
| Power Consumption (Max) | Wired 26.8W, 5G 29.5W |
| Heat Dissipation | Wired 91.4 BTU/hr., 5G 100.6 BTU/hr. |
| MTBF | |
| DC Input (@ 25ºC) | Wired (11.27 years), 5G (8.35 years) |
| AC Input, Industrial grade (@ 25ºC) | Wired (30.16 years), 5G (15.37 years) |
| Certifications | |
| Safety | CB IEC, UL, CE LVD - IEC 62368-1, UL/c 62368-1, CE LVD EN62368-1, ASNZ 62368-1 |
| EMC (Emissions) | CE, UKCA, FCC, IC , VCCI, AS_NZS ACMA |
| Environment | RoHS, REACH, WEEE, POP, TSCA |
| Industrial Certifications | IEEE 1613, IEC 61850-3 |
| Rugged Certifications | EN/IEC 60529, IEC 61850-3, IEC 60255-27 C2.2 |
| IP Rating | IP30 according EN/IEC 60529 |
| Cellular | PTCRB, GCF and Carrier AT&T |
Next Generation Threat Prevention & SandBlast Package
| CPSB-SNBT-1595R5G-1Y | Next Generation Threat Prevention and Sandblast for additional 1 years for 1595R5G Base Appliance |
| CPSB-SNBT-1595R5G-2Y | Next Generation Threat Prevention and Sandblast for additional 2 years for 1595R5G Base Appliance |
| CPSB-SNBT-1595R5G-3Y | Next Generation Threat Prevention and Sandblast for additional 3 years for 1595R5G Base Appliance |
Next Generation Threat Prevention Package
| CPSB-NGTP-1595R5G-1Y | Next Generation Threat Prevention for additional 1 year for 1595R5G Base Appliance |
| CPSB-NGTP-1595R5G-2Y | Next Generation Threat Prevention for additional 2 year for 1595R5G Base Appliance |
| CPSB-NGTP-1595R5G-3Y | Next Generation Threat Prevention for additional 3 year for 1595R5G Base Appliance |
Next Generation Firewall Package
| CPSB-NGFW-1595R5G-1Y | Next Generation Firewall Package for additional 1 year for 1595R5G Base Appliance |
| CPSB-NGFW-1595R5G-2Y | Next Generation Firewall Package for additional 2 year for 1595R5G Base Appliance |
| CPSB-NGFW-1595R5G-3Y | Next Generation Firewall Package for additional 3 year for 1595R5G Base Appliance |
CPAP-SG1595R5G-FW-PROMO : 1595R5G appliance with firewall only.
Data sheet Check Point Quantum Rugged Series Security Gateways
