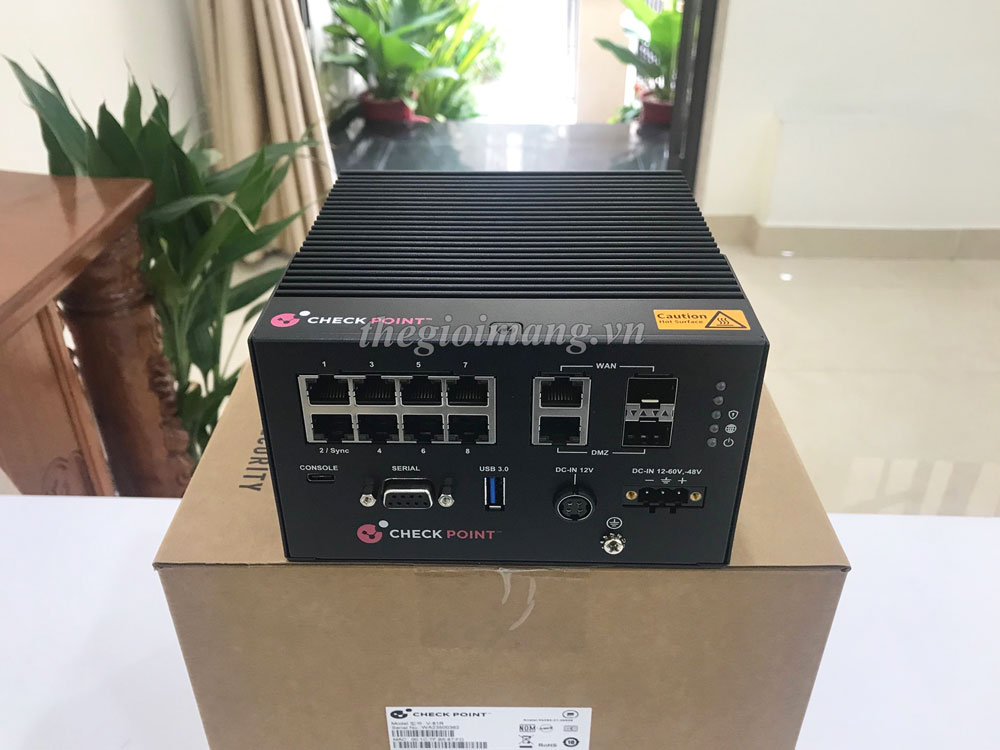

CPAP-SG1570R-SNBT-AC - Firewall Check Point Quantum Rugged 1570R Security Gateway with industrial AC power Supply :
Thiết bị tường lửa Firewall Check Point 1570R RUGGED Security Gateway (CPAP-SG1570R-SNBT-AC)
| Model | 1570R RUGGED Security Gateway (CPAP-SG1570R-SNBT-AC) |
| Enterprise Testing Conditions | |
| Threat Prevention (Mbps) | 400 |
| Next Generation Firewall (Mbps) | 700 |
| IPS Throughput (Mbps) | 770 |
| Firewall Throughput (Mbps) | 1,900 |
| RFC 3511, 2544, 2647, 1242 Performance (LAB) | |
| Firewall 1518 Byte UDP Packets (Mbps) | 4,000 |
| VPN AES-128 Throughput (Mbps) | 1,100 |
| Connections per Second | 13,500 |
| Concurrent Connections | 500,000 |
| Software | |
| Security | Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus and SandBlast Threat Emulation (sandboxing) |
| Unicast, Multicast Routing | OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP |
| IPv6 | local network and internet connections, dual stack tunneling IPv4 over IPv6 networks, prefix delegation |
| Mobile Access License (Users) | 200 remote SNX or Mobile VPN client users |
| Protocols | Over 70 protocols, including the most popular in the industry: Modbus, Bacnet, CIP, S7, IEC-104, DNP3 and many more |
| Hardware | |
| WAN Port | 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included) |
| DMZ Port | 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included) |
| LAN Ports | 8x 10/100/1000Base-T RJ-45 ports |
| Console Port | 1x USB-C |
| USB Port | 1x USB 3.0 |
| SD Card Slot | Micro-SD slot |
| Serial Port | 1x DB9 female connector, supports RS232 serial protocols, (RS422, R485 ready) |
| Dimensions | |
| Enclosure | Desktop, wall mount, DIN rail (bottom and back mount options) |
| Dimensions (W x D x H) | 150 x 150 x 90 mm |
| Weight | 1.8 kg |
| Environment | |
| Operating | -40ºC ~ 75ºC (-40ºF ~ +167ºF) |
| Storage | -45ºC ~ 60ºC, (-49ºF ~ 140ºF), 5~95%, non-condensing |
| Power Requirements | |
| Power Redundancy | Supported |
| Power Adapter AC Input | 110 – 240VAC, 50 – 60 Hz, AC socket IEC 320-C14 Type |

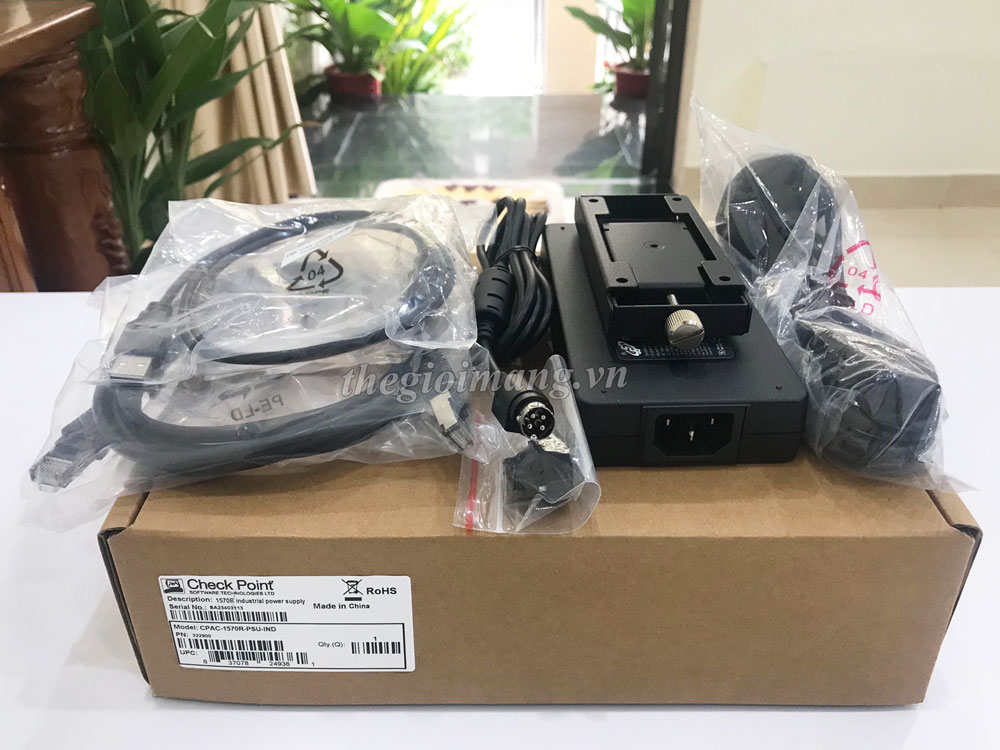

| Power Adapter Options | 12V/3.3A 40W commercial (0º ~ 40ºC, 32º ~ 104ºF) power adapter or 12V/10A 120W industrial grade (-40º ~ 70ºC, -40º ~ 158ºF) power adapter |
| DC Input (3-pin terminal) | Nominal 12 to 60VDC, -48VDC, Maximum Range 10.2VDC to 72VDC |
| Power Consumption (Max) | 25.1W |
| Heat Dissipation | 85.6 BTU/hr |
Next Generation Threat Prevention & SandBlast Package
| CPSB-SNBT-1570R-1Y | Next Generation Threat Prevention and Sandblast for additional 1 year for 1570R Base Appliance |
| CPSB-SNBT-1570R-2Y | Next Generation Threat Prevention and Sandblast for additional 2 years for 1570R Base Appliance |
| CPSB-SNBT-1570R-3Y | Next Generation Threat Prevention and Sandblast for additional 3 year for 1570R Base Appliance |
Next Generation Threat Prevention Package
| CPSB-NGTP-1570R-1Y | Next Generation Threat Prevention for additional 1 year for 1570R Base Appliance |
| CPSB-NGTP-1570R-2Y | Next Generation Threat Prevention for additional 2 year for 1570R Base Appliance |
| CPSB-NGTP-1570R-3Y | Next Generation Threat Prevention for additional 3 year for 1570R Base Appliance |
Next Generation Firewall Package
| CPSB-NGFW-1570R-1Y | Next Generation Firewall Package for additional 1 year for 1570R Base Appliance |
| CPSB-NGFW-1570R-2Y | Next Generation Firewall Package for additional 2 year for 1570R Base Appliance |
| CPSB-NGFW-1570R-3Y | Next Generation Firewall Package for additional 3 year for 1570R Base Appliance |
CPAP-SG1570R-SNBT-AC : 1570R Ruggedized Next Generation Appliance with Industrial AC power supply
Data sheet Check Point Quantum Rugged 1570R Security Gateways
