Name: Cambium PTP 820E
Brand: Cambium
SKU: PTP 820E
Rating: 5 (14 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

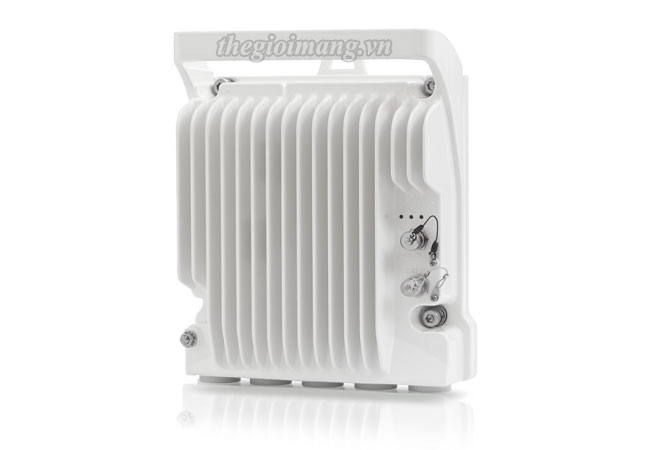

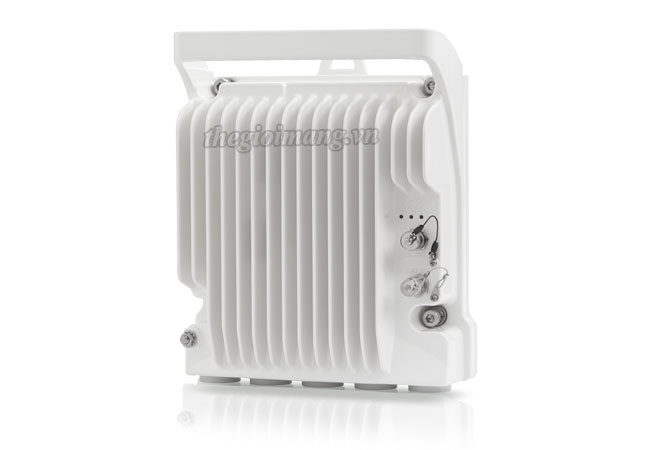

Thiết bị Wifi Cambium PTP 820E

Model	PTP 820E
RADIO	• 71-76 GHz, 81-86 GHz • 1+0, 2+0 • Multiband with PTP 820C, PTP 820C HP, PTP 820S or third-party microwave radios Radio Features • BPSK to 1024 QAM w/ACM • Built-in frequency scanner to determine the current interference level for each channel
ETHERNET
Ethernet Interfaces	• Port 1: RJ45, 10/100/1000Base-T, PoE • Port 2: SFP cage which support regular SFP 1Gb/s (Eth 2), or CSFP 1Gb/s (Eth2 + Eth3) • Port 3: Two options: o 1x10/100/1000Base-T used for management only; OR o SFP cage which support regular SFP 1 Gb/s (Eth1), or SFP+ 10Gb/s (Eth1) Note: SFP devices must be of industrial grade (-40°C to +85°C)
Ethernet Features	• MTU – 9600 Bytes • Quality of Service o Multiple Classification criteria (VLAN ID, p-bits, IPv4, DSCP, IPv6 TC, MPLS EXP) o 8 priority queues per port o Deep buffering (configurable up to 64 Mbit per queue) o WRED o P-bit marking/remarking • 4K VLANs • VLAN add/remove/translate • Frame Cut Through – controlled latency and PDV for delaysensitive applications • Header De-Duplication – Capacity boosting by eliminatinginefficiency in all layers (L2, MPLS, L3, L4, Tunneling – GTP for LTE, GRE)**Note: not available for 500MHz channel • Adaptive Bandwidth Notification (ABN), also known as EOAM
TECHNICAL SPECIFICATION	Mechanical Specifications • Dimensions (Direct Mount): 220mm x 198mmx 75mm (8.66”x 7.8” x 2.95”), 3kg (6.6 lbs.) • Dimensions (43dBi integrated Antenna): 280mm x 280mm x 110mm(11.02” x 11.02” x 4.33”), 3.5kg (7.7 lbs.) • Pole Diameter Range (for Remote Mount Installation): 8.89 cm – 11.43 cm (3.5” – 4.5”)
Environmental Specifications	• -33°C to +55°C (-45°C to +60°C extended), -27°F to +131°F (-49°F to +140°F extended) Power Input Specifications • Standard Input: -48 VDC • IDU DC Input range: -40 to -60 VDC Power Consumption Specifications • Active: 43W; Standby: 36W
