Mô tả sản phẩm

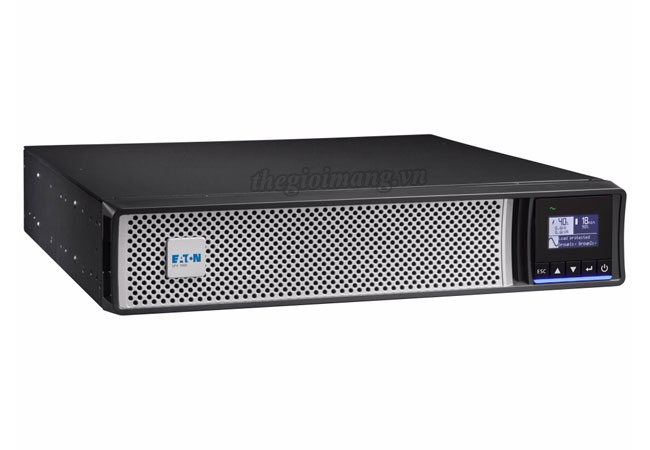

Bộ lưu điện UPS Eaton 5PX Gen2 5PX1000IRT2UG2

Model	5PX1000IRT2UG2
Rating (VA/W)	• 1000VA / 1000W
Format	• RT2U (tower / rack 2U)
Electrical Characteristics
Technology	• Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Input voltage range without using batteries	• 160V-294V (adjustable to 150V-294V)
Input frequency range without using batteries	• 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output voltage	• 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 Hz (autosensing)

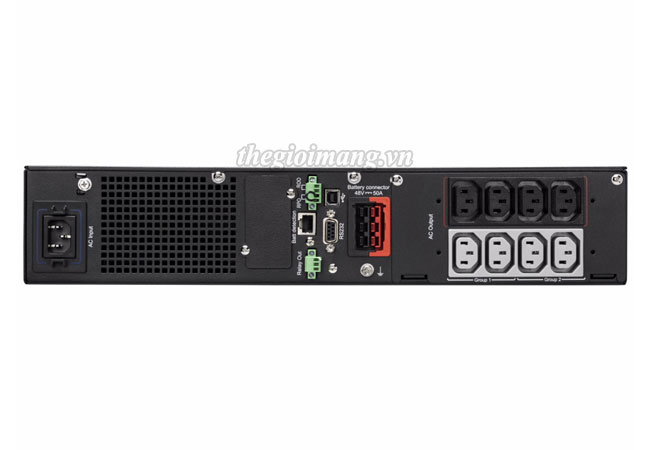

Connections
Input	• IEC C14 (10A)
Outputs	• 8 x IEC C13 (10A)
Remote controlled sockets	• 2 groups of 2 x IEC C13 (10 A)
Additional outputs with HS MBP	• 4 FR / Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version)
Additional outputs with FlexPDU	• 8 FR / Schuko sockets or 6 BS sockets or 12 IEC 10A sockets
Interfaces
Communication ports	• 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay
Communication slot	• 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards
Operating conditions, standards and approvals
Operating temperature	• 0 to 40°C
Noise level	• <40 dB @ typical load
Safety	• IEC/EN 62040-1, UL1778, CSA22.2
EMC, Performance	• IEC/EN 62040-2, FCC Class B, CISPR22 class B
Approvals	• CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Dimensions W x D x H / Weight
UPS Dimensions (mm)	• 438 x 448 x 85.5
UPS Weight (kg)	• 19.6
EBM dimensions (mm)	• 438 x 448 x 85.5
EBM weight (kg)	• 27.8
