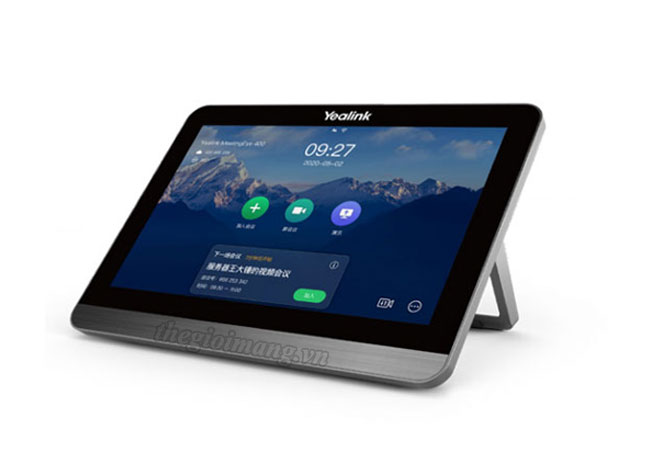

Bảng điều khiển cuộc họp Yealink Touch Panel CTP18
Data sheet Yealink Collaboration Touch Panel CTP18
Thông số kỹ thuật Yealink Touch Panel CTP18
Connection
• Connect to VCS endpoint via cable
• Pair with the VCS endpoint in the same LAN (supported by later versions)
• Connect to VCS endpoint via Wi-Fi
System Compatibility
• MeetingEye 400/MeetingEye 600
- 44 or later versions
- Up to 4 CTP18 units can be used in one system
• VC880/VC800/VC500
- Supported by later versions
- Up to 4 CTP18 units can be used in one system
• VC200/VC210
- Supported by later versions
- Up to 1 CTP18 unit can be used in one system
Wireless Network
• Wi-Fi
- 2.4G/5G Wi-Fi
- IEEE 802.11n/ac
- Support connecting to the Wi-Fi generated by Yealink VCS endpoints only
Display
• Screen
- 8-inch IPS FHD capacitive touch screen
• Resolution
- 1280*800 (16:10)
• Touch
- 10 points multi-touch
Interface
• USB
- 1 x USB-C for device debugging
• RJ45
- 1 x RJ45 Ethernet for power and data connection
• Reset slot
1 x Reset slot
Accessories
• Wall Mount Bracket
- 1 x wall mount bracket
• Security lock slot
- 1 x security lock slot for anti-theft
Other Physical Features
• Power supply
- Power over Ethernet (IEEE 802.3af)
• Power input
- PoE 48V 0.27A
• Power consumption
- 7W at most
• Stand
- Adjustable angle (28°~50°)
• Dimension (W*D*H)
- 202mm x 151mm x 100mm
