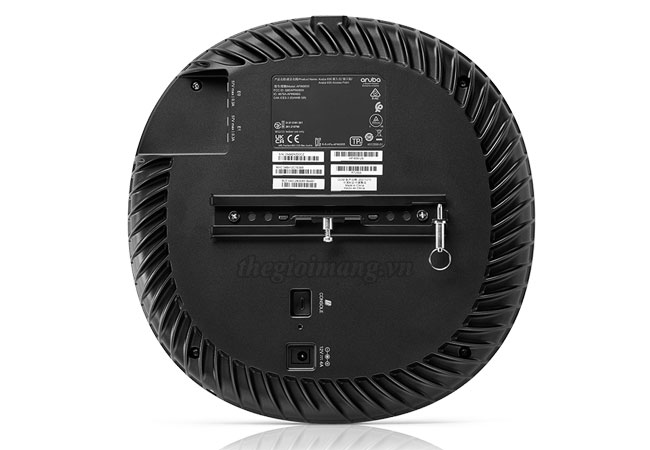

Model	AP-654 (S1G53A)
Wi-Fi radio specifications	• AP type: Indoor, tri-radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 4x4 MIMO. • 2.4 GHz radio: Four spatial streams MIMO for up to 1,147 Mbps wireless data rate with HE40 802.11ax client devices (574 Mbps for HE20). • 5 GHz radio: Four spatial streams MIMO for up to 2.4 Gbps wireless data rate with HE80 802.11ax client devices. • 6 GHz radio: Four spatial streams MIMO for up to 4.8 Gbps wireless data rate with HE160 802.11ax client devices. • Both downlink and uplink MU-MIMO in 6 GHz and 5 GHz, downlink only in 2.4 GHz. • Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6 GHz radio).
Wi-Fi antennas	• Two sets of four (female) RP-SMA connectors for external antennas (A0 through A3 corresponding with radio chains 0 through 3 for the 2.4 GHz and 5 GHz radios, and B0 through B3 corresponding with radio chains 0 through 3 for the 6 GHz radio). Worstcase internal loss between radio interface and external antenna connectors: 1.0dB in 2.4 GHz, 1.0dB in 5 GHz and 1.0dB in 6 Ghz
Other interfaces	• E0, E1: Two Ethernet wired network ports (RJ-45) - Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX - 2.5 Gbps and 5 Gbps speeds comply with NBase-T and 802.3bz specifications - POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher) - 802.3az Energy Efficient Ethernet (EEE) - Link aggregation (LACP) support between both network ports for redundancy and increased capacity • DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length • USB 2.0 host interface (Type A connector) - Capable of sourcing up to 1A / 5W to an attached device • Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio - BLE: up to 6dBm transmit power and -101dBm receive sensitivity (125 kbps) - Zigbee: up to 6dBm transmit power and -99dBm receive sensitivity (250 kbps) - Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 3.6dBi • GNSS L1 (1575.42 MHz) receiver supporting GPS, Galileo, GLONASS, and BeiDou signal - Receive sensitivity: -162dBm (tracking) - Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 3.1dBi • Advanced IOT Coexistence (AIC) allows concurrent operation of multiple radios in the 2.4 GHz band • Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting • Visual indictors (four multi-color LEDs): for System (1x) and Radio (3x) status • Reset button: factory reset, LED mode control (normal/off) • Serial console interface (proprietary, micro-B USB physical jack) • Kensington security slot • Automatic thermal shutdown and recovery function
Power sources and power consumption	• The AP supports direct DC power and Power over Ethernet (POE) on port E0 and/or E1 • When POE power is supplied to both Ethernet ports, the AP combines power from both sources (SmartPOE feature), using E0 as the primary source and E1 as secondary • When both DC and POE power sources are available, DC power takes priority over POE • Maximum (worst-case) power consumption (without / with a USB device attached): - DC powered: 36.0W/42.5W. - POE powered: 40.3W/46.5W. - This assumes that up to 5W is supplied to the attached USB device. • Maximum (worst-case) power consumption in idle mode: 14.3W/20.2W (DC) or 16.9W/22.7W (POE). • Maximum (worst-case) power consumption in deep-sleep mode: 2.4W (DC) or 4.0W (POE).
Mechanical specifications	• Dimensions/weight (unit without mount bracket): - 260mm (W) x 260mm (D) x 60mm (H) - 1,800g • Dimensions/weight (shipping): - 285mm (W) x 285mm (D) x 95mm (H) - 2,300g
Environmental specifications	• Operating conditions - Temperature: 0C to +50C / +32F to +122F - Relative humidity: 5% to 95% - ETS 300 019 class 3.2 environments - AP is plenum rated for use in air-handling spaces • Storage conditions - Temperature: -25C to +55C / -13F to +131F - Relative humidity: 10% to 100% - ETS 300 019 class 1.2 environments • Transportation conditions - Temperature: -40C to +70C / -40F to +158F - Relative humidity: up to 95% - ETS 300 019 class 2.3 environments
