Model	AP-203RP (JY720A)
WI-FI RADIO SPECIFICATIONS	AP type: Indoor, flexible radio: 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1 Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1) 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices) Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP
WI-FI ANTENNAS	Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and 1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per antenna pattern is -0.4dBi in 2.4GHz and 0.5dBi in 5GHz.

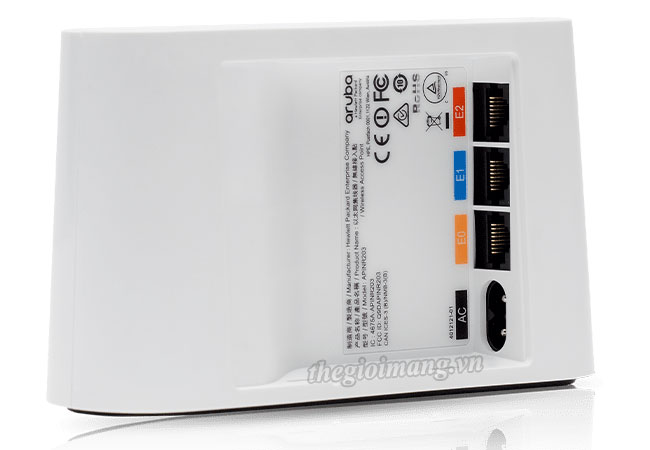

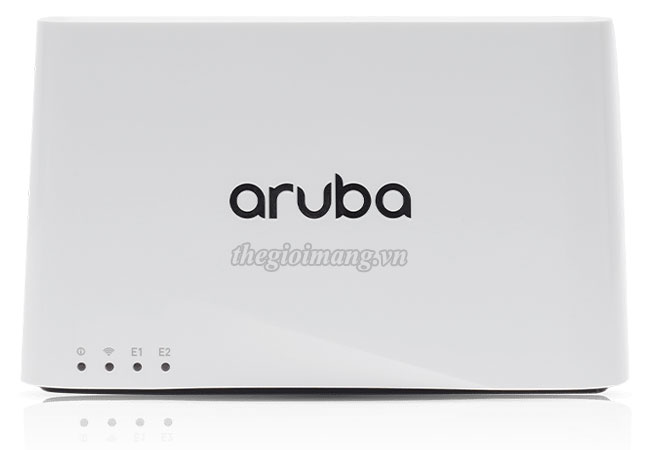

OTHER INTERFACES	Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) Local: Two 10/100/1000BASE-T Ethernet (RJ-45, back) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models) Bluetooth Low Energy (BLE) radio Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity Integrated antenna with moderately directional pattern and peak gain of 1dBi • USB 2.0 host interface (Type A connector, top) 3G/4G cellular modems Device battery charging port Capable of supplying up to 1A/5 watts of power to an attached device AC power interface, 2 prong IEC 60320-1 C8 receptacle (back) Visual indicators (LEDs, front): Power/system status Radio status Local network port status (2x) Includes PoE-PSE status (AP-203RP models) Reset/LED control button (“paperclip access”, bottom) Factory reset (when activated during device power up) LED control: toggle off/normal Serial console interface (custom, uUSB physical jack, bottom)
POWER SOURCES AND CONSUMPTION	The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz. Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP. Maximum (worst-case) power consumption: 8.2W. Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 5.7W for a 5W/1A USB device and up to 17.2W for a max load (15.4W) 802.3af PoE-PD device Maximum (worst-case) power consumption in idle mode: 5.0W
MECHANICAL	Dimensions/weight (unit, with cable cover): 155mm (W) x 50mm (D) x 95mm (H) 340g Dimensions/weight (shipping): 224mm (W) x 159mm (D) x 78mm (H) 590g
ENVIRONMENTAL	Operating: Temperature: 0° C to +40° C (+32° F to +104° F) Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F)
