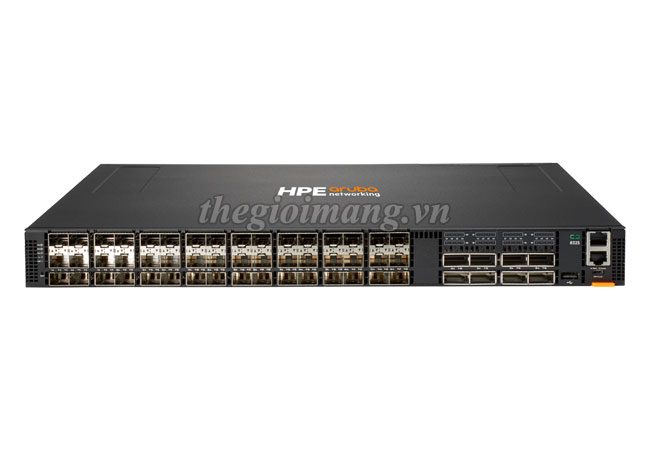

JL625A - Bộ chuyển mạch Aruba CX 8325-48Y8C 48xSFP28, 8xQSFP28, B2F 6 Fans 2 PSU Bundle
HPE Aruba Networking CX 8325‑48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle (JL625A) là dòng switch hiệu suất cao, được thiết kế để đáp ứng các nhu cầu mạng hiện đại trong doanh nghiệp, trung tâm dữ liệu, và môi trường campus.
Đặc điểm nổi bật của dòng HPE Aruba Networking CX 8325
Thông số kỹ thuật
| Model | HPE Aruba Networking CX 8325‑48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle (JL625A) |
| Description | • 1 x JL635A base 8325-48Y8C switch • 6 x JL629A Back-to-Front Fan • 2 x JL633A Back-to-Front 650W 100-240 VAC Power Supply • Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) [optional 1 GBASE-T and 10 GBASE-T transceivers, 4x10G and 4x25G breakout cables] |
| Power supplies | • Field-replaceable, hot-swappable, and up to 2 power supplies. |
| Fans | • Field-replaceable, hot-swappable, and up to 6 fans. |
| Physical characteristics | |
| Dimensions | • (H) 4.35 cm x (W) 43.84 cm x (D) 53.6 cm |
| Full configuration weight | • 10 kg |
| Additional specifications | |
| CPU | • 2.2 GHz |
| Memory, drive and flash | • 16 GB RAM, 64 GB SSD, 8 GB flash |
| Packet buffer | • 32 MB |
| Performance | |
| Switching capacity | • 4 Tbps |
| IPv4 host table 120,000 | • 120,000 |
| IPv6 host table 52,000 | • 52,000 |
| IPv4 unicast routes | • 131,072 |
| IPv6 unicast routes | • 32,732 |
| MAC table size | • 98,304 |
| IGMP groups | • 4,094 |
| MLD groups | • 4,094 |
| IPv4 multicast routes | • 8,192 |
| IPv6 multicast routes | • 8,192 |
| Environment | |
| Operating temperature | • 0°C to 40°C up to 3.0 km |
| Operating relative humidity | • 5% to 95% at 40°C non-condensing |
| Non-operating temperature | • -40°C to 70°C up to 4.6 km |
| Non-operating/storage relative humidity | • 5% to 95% @ 65°C |
| Max operating altitude | • Up to 3.048 km |
| Max non-operating | • Up to 4.6 km |
| Primary airflow | • Back-to-front |
| Electrical characteristics | |
| Power supplies | • 50-60 Hz |
| AC voltage | • 100-240 VAC |
| Current | • 6.2 A (low voltage)–3.1 A (high voltage) |
| Power consumption | • Max: 586W, 2000 BTU/hr • Idle: 209W, 714 BTU/hr |
JL625A : HPE Aruba Networking CX 8325‑48Y8C 48p 25G SFP/+/28 8p 100G QSFP+/28 BF 6 Fans 2 PSU Bundle.
