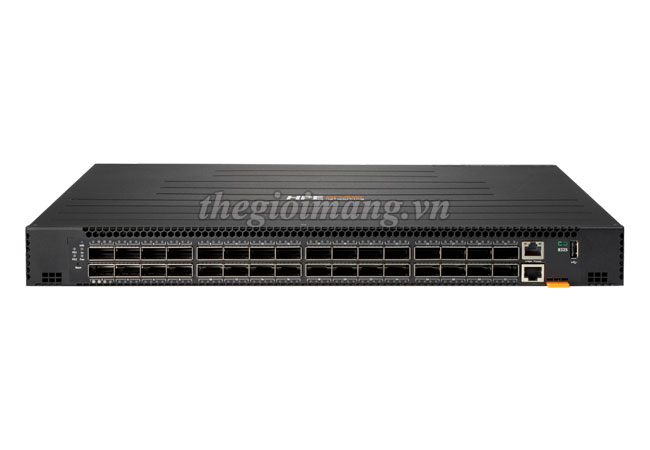

JL627A - Bộ chuyển mạch Aruba CX 8325-32C 32xQSFP28 B2F 6 Fans 2 PSU Bundle
HPE Aruba Networking CX 8325‑32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bundle (JL627A) là dòng switch hiệu suất cao, được thiết kế để đáp ứng các nhu cầu mạng hiện đại trong doanh nghiệp, trung tâm dữ liệu, và môi trường campus.
Đặc điểm nổi bật của dòng HPE Aruba Networking CX 8325
Thông số kỹ thuật
| Model | HPE Aruba Networking CX 8325‑32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bundle (JL627A) |
| Description | • 1 x JL636A base 8325-32C switch • 6 x JL631A Back-to-Front Fan • 2 x JL633A Back-to-Front 650W 100-240 VAC Power Supply • Supports 32 ports of 40G/100GbE (QSFP+/QSFP28) [optional 4x10G and 4x25G breakout cables] |
| Power supplies | • Field-replaceable, hot-swappable, and up to 2 power supplies. |
| Fans | • Field-replaceable, hot-swappable, and up to 6 fans. |
| Physical characteristics | |
| Dimensions | • (H) 4.395 cm x (W) 44.25 cm x (D) 47.3 cm |
| Full configuration weight | • 10.87 kg |
| Additional specifications | |
| CPU | • 2.2 GHz |
| Memory, drive and flash | • 16 GB RAM, 64 GB SSD, 8 GB flash |
| Packet buffer | • 32 MB |
| Performance | |
| Switching capacity | • 6.4 Tbps |
| IPv4 host table 120,000 | • 120,000 |
| IPv6 host table 52,000 | • 52,000 |
| IPv4 unicast routes | • 131,072 |
| IPv6 unicast routes | • 32,732 |
| MAC table size | • 98,304 |
| IGMP groups | • 4,094 |
| MLD groups | • 4,094 |
| IPv4 multicast routes | • 8,192 |
| IPv6 multicast routes | • 8,192 |
| Environment | |
| Operating temperature | • 0°C to 40°C up to 3.0 km |
| Operating relative humidity | • 5% to 95% at 40°C non-condensing |
| Non-operating temperature | • -40°C to 70°C up to 4.6 km |
| Non-operating/storage relative humidity | • 5% to 95% @ 65°C |
| Max operating altitude | • Up to 3.048 km |
| Max non-operating | • Up to 4.6 km |
| Primary airflow | • Back-to-front |
| Electrical characteristics | |
| Power supplies | • 50-60 Hz |
| AC voltage | • 100-240 VAC |
| Current | • 6.2 A (low voltage)–3.1 A (high voltage) |
| Power consumption | • Max: 618W, 2110 BTU/hr • Idle: 143W, 489 BTU/hr |
JL627A : HPE Aruba Networking CX 8325‑32C 32p 100G QSFP+/QSFP28 Back-to-Front 6 Fans 2 Power Supply Bundle.
