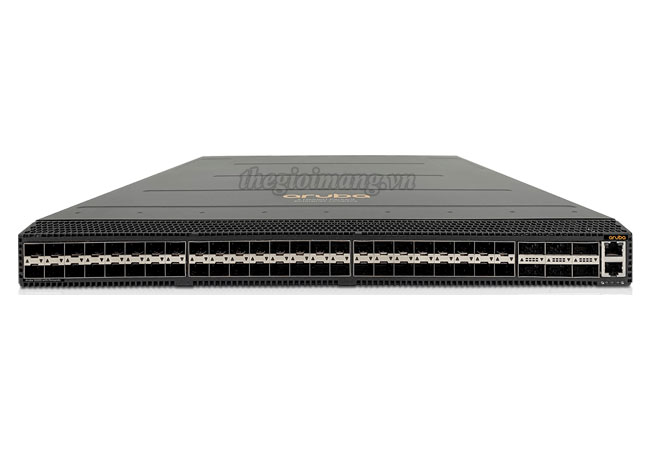

Thiết bị chuyển mạch Switch Aruba 10000-48Y6C Back-to-Front Bundle (R8P14A)
| Model | Aruba 10000-48Y6C Back-to-Front switch bundle (R8P14A) |
| Description | 1 x R8P14A base 10000-48Y6C switch • 6 x R8R54A Back-to- Front Fan • 2 x R8R52A Back-to- Front 800W 100- 240VAC Power Supply Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 6 ports of 40G/100GbE (QSFP+/QSFP28) [optional 1GBASE-T and 10GBASE-T transceivers, 4x10G and 4x25G breakout cables] |
| Power supplies | Field-replaceable, hot-swappable, and up to 2 power supplies. |
| Fans | Field-replaceable, hot-swappable, and up to 6 fans. |
| Physical characteristics | |
| Dimensions | (H) 4.44 cm x (W) 43.82 cm x (D) 51.1 cm (1.75” x 17.25” x 20.12”) |
| Full configuration weight | 9.75 kg (21.45 lb |
| Additional specifications | |
| CPU | 2.9GHz |
| Memory, Drive and Flash | 32GB RAM, 64GB SSD |
| Packet Buffer | 32MB |
| Performance | |
| Switching Capacity | 3.6Tbps (bidirectional) |
| IPv4 Host Table | 120,000 |
| IPv6 Host Table | 52,000 |
| IPv4 Unicast Routes | 131,072 |
| IPv6 Unicast Routes | 32,732 |
| MAC Table Size | 98,304 |
| IGMP Groups | 4,094 |
| MLD Groups | 4,094 |
| IPv4 Multicast Routes | 4,094 |
| IPv6 Multicast Routes | 4,094 |
| Environment | |
| Operating temperature | 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) |
| Operating relative humidity | 10% to 85% at 40°C (104°F) non-condensing |
| Non-Operating | -40°C to 70°C (-40°F to 158°F) up to 3.0 km (15,000 ft.) |
| Non-Operating/Storage relative humidity | 5% to 95% @ 65°C (149°F) |
| Max operating altitude | Up to 10,000ft (3.048 km) |
| Max non-operating | Up to 15,000ft (4.6km) |
| Primary airflow | Front-to-Back Port to PSU or Back-to-Front PSU to Port |
| Electrical characteristics | |
| Frequency | 50-60Hz |
| AC Voltage | 100-240 volts |
| Current | 6A (low voltage) – 3A (high voltage) |
| Typical Power consumption | Max: 750W |
R8P14A : Aruba 10000-48Y8C Bundle includes: 48 x 25Gb ports (SFP/+/28), 6 x 100Gb ports (QSFP+/28), 6 Back-to-Front Fans and 2 PSU’s
